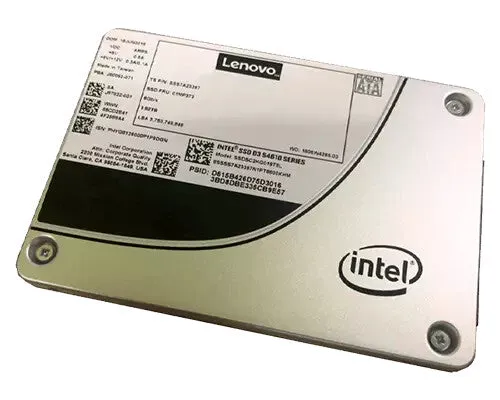

Lenovo 4XB7A13642 internal solid state drive 1.92 TB 3.5″ Serial ATA III 3D TLC NAND
- 1.92 TB 3.5″ Serial ATA III
- 96000 IOPS
- 42000 IOPS
- 3D TLC NAND
- S.M.A.R.T. support
- Component for: Server/workstation
The Intel S4610 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. The drives are available in either 2.5-inch or 3.5-inch drive form factor.
This product guide provides essential presales information to understand the S4610 SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4610 SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| Certification | FCC Title 47, Part 15B, Class BCA/CSA-CEI/IEC CISPR 22:02EN 55024: 1998EN 55022: 2006EN-60950-1 2nd EditionUL/CSA EN-60950-1 2nd EditionLow Voltage Directive 2006/95/ECC-Tick: AS/NZS3584BSMI: CNS 13438KCC Article 11.1RoHS DIRECTIVE 2011/65/EUWEEE Directive 2002/96/EC |
| Mean time between failures (MTBF) | 2000000 h |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Write latency | 37 µs |
| Read latency | 36 µs |
| Random latency – write (up to) | 54 µs |
| Random latency – read (up to) | 103 µs |
| Random write (4KB) | 42000 IOPS |
| Random read (4KB) | 96000 IOPS |
| Data transfer rate | 6 Gbit/s |
| Component for | Server/workstation |
| Memory type | 3D TLC NAND |
| NVMe | No |
| Interface | Serial ATA III |
| SSD form factor | 3.5″ |
| SSD capacity | 1.92 TB |
| Weight & dimensions | |
|---|---|
| Weight | 484 g |
| Height | 95 mm |
| Depth | 193 mm |
| Width | 257 mm |
| Operational conditions | |
|---|---|
| Maximum operating altitude | 3050 m |
| Operating shock | 1000 G |
| Non-operating vibration | 3.13 G |
| Operating vibration | 2.17 G |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -55 – 95 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Other features | |
|---|---|
| Endurance rating | 10.5 PB |
