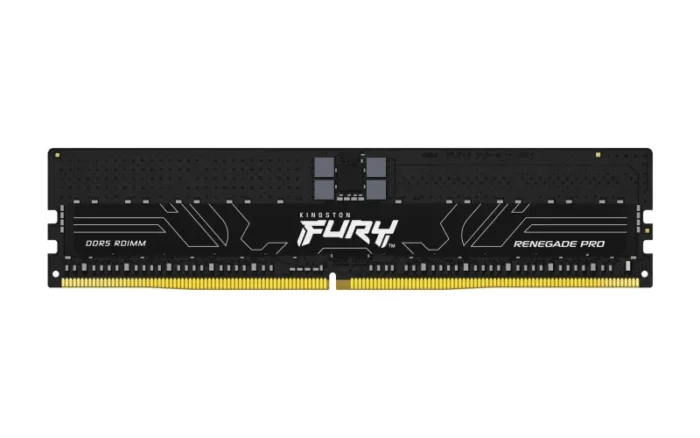

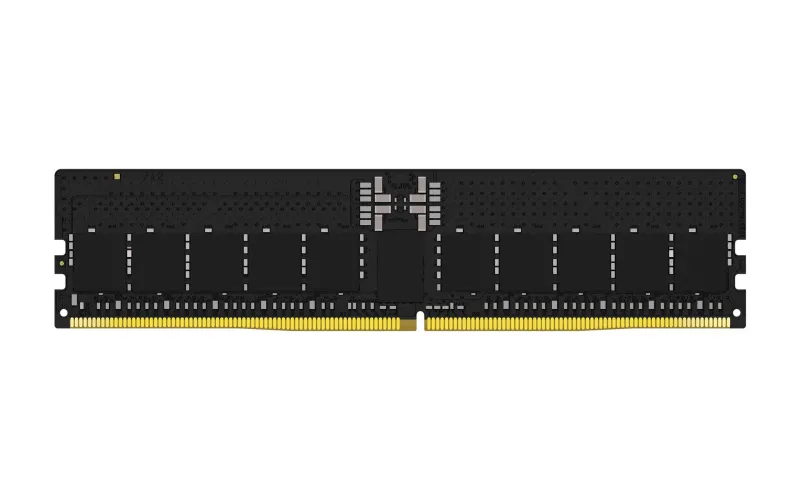

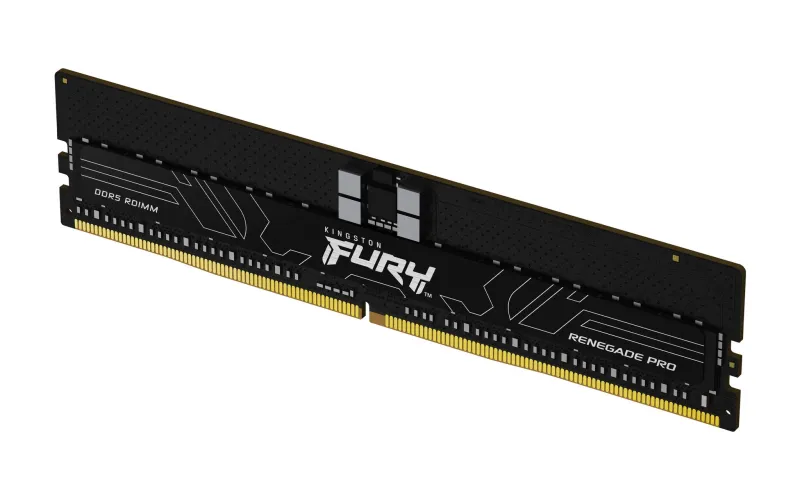

Kingston Technology FURY 16GB 6400MT/s DDR5 ECC Reg CL32 DIMM Renegade Pro XMP
- Overclocking with ECC
- Increased efficiency
- Intel® XMP 3.0 Certified
- AMD EXPO™ Certified
- Plug N Play**
With over three decades of building reliable, high quality memory modules for the world’s largest data centers, Kingston proudly introduces a new line of overclockable server-class memory, Kingston FURY™ Renegade Pro DDR5 RDIMM. To meet the computing demands of next-gen Intel® or AMD workstation and high-end desktop platforms requiring the use of DDR5 Registered DIMMs, Kingston FURY Renegade Pro DDR5 RDIMM provides creators, engineering and data science professionals with high performance memory normally reserved for gamers, without sacrificing the data integrity features and superior quality grade of Registered DIMMs.
DDR5 Registered DIMMs support ECC, capable of detecting and correcting multi-bit errors. This is in addition to On-Die ECC, featured on all DDR5 DRAM components, which perform single bit error detection and correction to mitigate system lockups and data corruption.
Power users can automatically get the most out of their systems with Kingston FURY Renegade Pro DDR5 RDIMM, or choose one of the built-in profiles for optimum timings, speeds, and voltage. Available in single-module capacities up to 32GB, kits of 4 up to 128GB, and kits of 8 up to 256GB.
Overclocking with ECC
Maintain data integrity while pushing the limits of DDR5 performance.
Increased efficiency
With double the banks and burst lengths, keep up with the demands of the latest programs and applications with improved efficiency and lower latencies.
Intel® XMP 3.0 certified
Select one of the built-in profiles to maximise memory performance with advanced pre-optimised timings, speeds and voltage.
AMD EXPO (Extended Profiles for Overclocking)
Certified modules include Intel XMP 3.0 profiles, enabling compatibility with the platform of your choice.
Plug N Play**
Kingston FURY Renegade Pro DDR5 RDIMM modules automatically overclock to the highest listed speed.
| Features | |
|---|---|
| JEDEC standard | Yes |
| Lead plating | Gold |
| Cooling type | Heatsink |
| Product colour | Black |
| Country of origin | China, Taiwan |
| SPD profile | Yes |
| Programming power voltage (VPP) | 1.8 V |
| Intel Extreme Memory Profile (XMP) version | 3.0 |
| Intel Extreme Memory Profile (XMP) | Yes |
| Row active time | 32 ns |
| Refresh row cycle time | 295 ns |
| Row cycle time | 48 ns |
| Module configuration | 2048M x 80 |
| Memory voltage | 1.4 V |
| Memory ranking | 1 |
| Memory channels | Dual-channel |
| Memory data transfer rate | 6400 MT/s |
| CAS latency | 32 |
| On-Die ECC | Yes |
| ECC | Yes |
| Memory form factor | 288-pin DIMM |
| Component for | PC/Server |
| Memory clock speed | 3200 MHz |
| Internal memory type | DDR5 |
| Memory layout (modules x size) | 1 x 16 GB |
| Internal memory | 16 GB |
| Buffered memory type | Registered (buffered) |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -55 – 100 °C |
| Operating temperature (T-T) | 0 – 95 °C |
| General | |
|---|---|
| Product family | FURY |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Doesn’t contain | Halogen |
| Weight & dimensions | |
|---|---|
| Weight | 18.2 g |
| Height | 31.2 mm |
| Depth | 133.3 mm |
| Width | 3.8 mm |
| Packaging data | |
|---|---|
| Package weight | 34.72 g |
| Package height | 171.4 mm |
| Package depth | 14 mm |
| Package width | 57.1 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 25 pc(s) |
| Master (outer) case gross weight | 1.15 kg |
| Master (outer) case height | 61 mm |
| Master (outer) case length | 311.1 mm |
| Master (outer) case width | 196.8 mm |
- leaflet
- Overclockable DDR5 Performance
