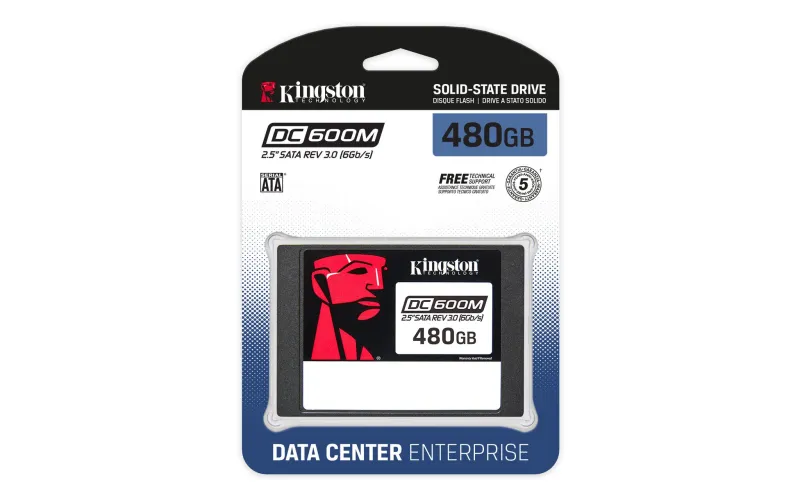

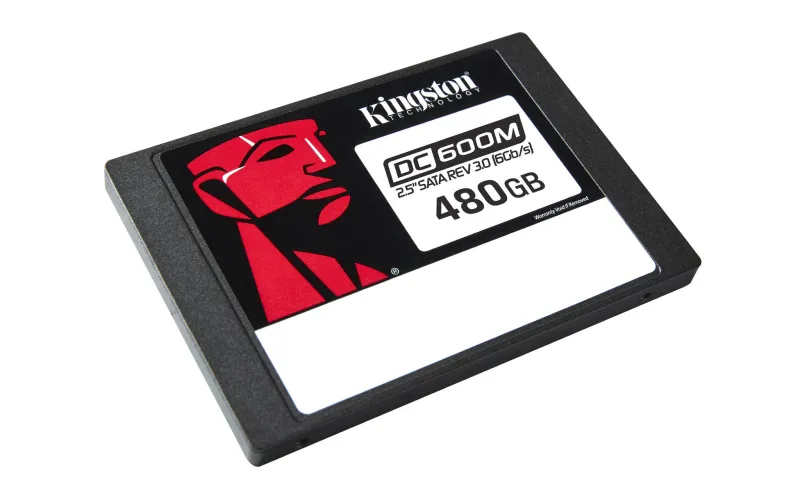

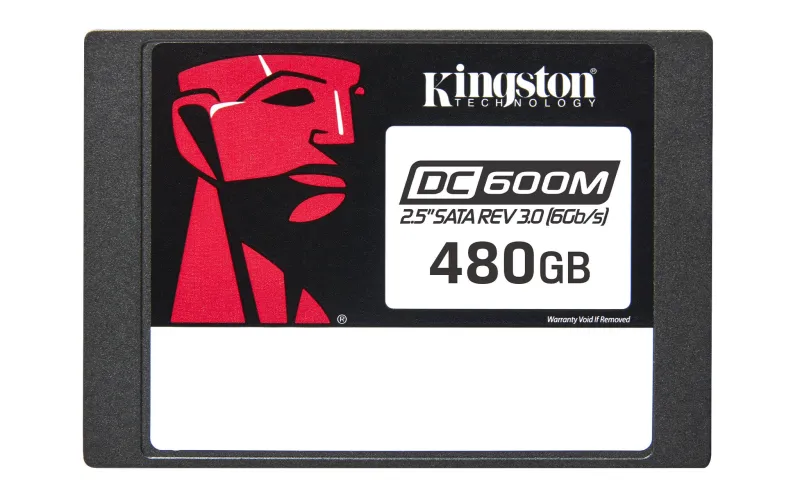

Kingston Technology 480G DC600M (Mixed-Use) 2.5” Enterprise SATA SSD
- Designed for data center environments
- Hardware-based power loss protection
- Latency and IOPS consistency
- AES 256-bit encryption with DC600ME
- Capacities of up to 7.68TB*
Kingston’s DC600M and DC600ME SSDs are fourth-generation data center SATA 3.0, 6Gbps SSDs utilising 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M and DC600ME are designed to protect data against unexpected power failure and to ensure the drive will successfully reinitialise on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers and cloud service providers.
DC600ME features AES 256-bit encryption and supports TCG OPAL 2.0 security standards.
Capacities available from 480GB–7.68TB* to meet your data storage requirements.
Designed for data center environments
Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.
Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.
Delivers excellent quality of service (QoS)*
Optimised performance predictability to meet
service-level agreements (SLAs).
AES 256-bit Encryption with DC600ME
Protect sensitive data with support for AES 256-bit hardware-based encryption and TCG Opal 2.0 security standards with DC600ME.
Capacities up to 7.68TB
Upgrade and manage storage with capacities up to 7.68TB.*
| Features | |
|---|---|
| Use conditions | Server/Enterprise |
| TBW rating | 876 |
| Mean time between failures (MTBF) | 2000000 h |
| H/W PLP function | Yes |
| Hot-Plug support | Yes |
| Write latency | 30 µs |
| Read latency | 200 µs |
| Random write (4KB) | 41000 IOPS |
| Random read (4KB) | 94000 IOPS |
| Write speed | 470 MB/s |
| Read speed | 560 MB/s |
| Data transfer rate | 6 Gbit/s |
| Target workload | Mixed Use (MU) |
| Hardware encryption | No |
| Component for | Server/workstation |
| Memory type | 3D TLC NAND |
| Interface | Serial ATA III |
| SSD form factor | 2.5″ |
| SSD capacity | 480 GB |
| Power | |
|---|---|
| Power consumption (idle) | 1.3 W |
| Power consumption (average) | 1.45 W |
| Power consumption (write) | 3.6 W |
| Power consumption (read) | 1.6 W |
| Weight & dimensions | |
|---|---|
| Weight | 66 g |
| Height | 7 mm |
| Depth | 100.1 mm |
| Width | 69.8 mm |
| Packaging data | |
|---|---|
| Package weight | 88.19 g |
| Package height | 184.2 mm |
| Package depth | 9.14 mm |
| Package width | 129.5 mm |
| Operational conditions | |
|---|---|
| Non-operating vibration | 20 G |
| Operating vibration | 2.17 G |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case gross weight | 959.95 g |
| Master (outer) case height | 69.8 mm |
| Master (outer) case length | 203.2 mm |
| Master (outer) case width | 135.9 mm |
| Country of origin | China, Taiwan |
- leaflet
- Enterprise-class mixed-use SSD with power loss protection
