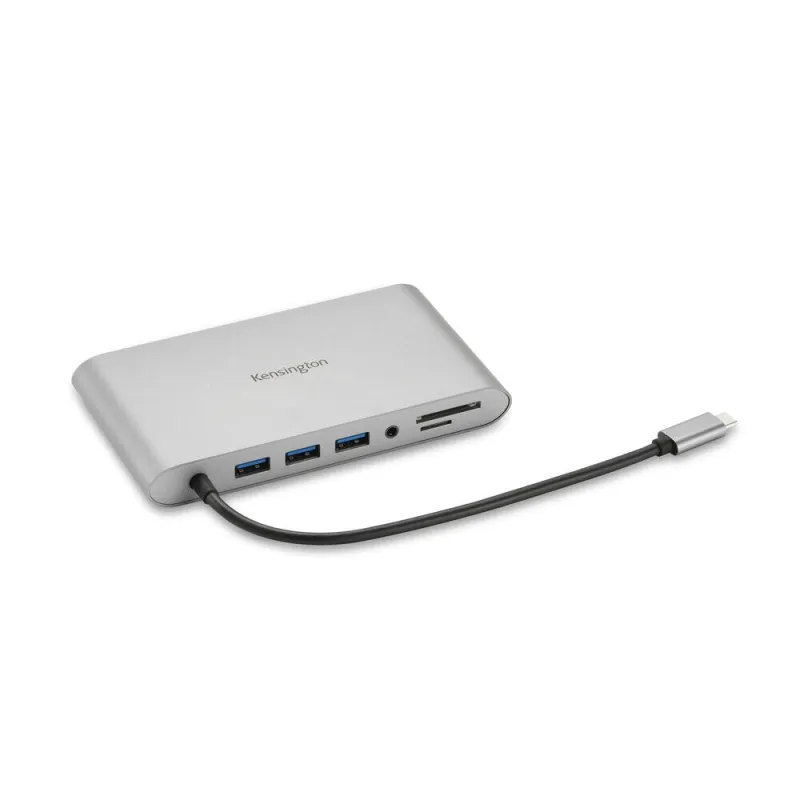

Kensington UH1440P USB-C 5Gbps Dual Video Driverless Mobile Dock – 85W Pass-Through Power – DP/HDMI/VGA
- Best For: Dual video support for DP/HDMI and DP/VGA monitors
- Connection Technology: USB-C
- Power Delivery: Up to 85W power pass-through
- Compatibility: USB-C based devices (Thunderbolt 4, Thunderbolt 3, USB4, and USB-C Alt Mode) running Windows 10 or later, macOS 11 or later, iPadOS 13 or later and Samsung DeX®
- No. of Monitors Supported: 2

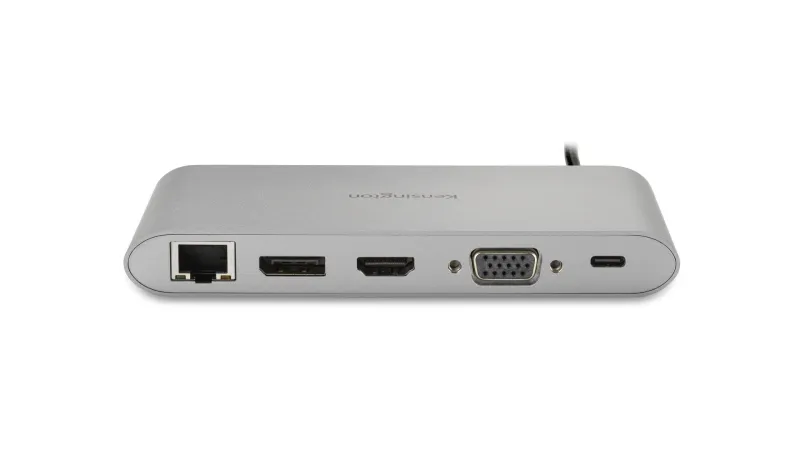

- Video Ports: 1 x HDMI 1.4 / 1 x DisplayPort 1.2 / 1 x VGA port
- Maximum Resolution Supported: Dual 1080p @ 60Hz
- Plug and Play: Plug and play installation
- System Requirements: Driverless – no firmware or software required for setup
Professionals find that they can be more productive when connected to multiple monitors. With more people working between different locations and connecting to different (and often legacy) monitors, a compact, mobile dock that can accommodate these setups is required. The UH1440P USB-C Mobile Dock makes the most of legacy monitors, allowing you to connect up to two DP/HDMI or DP/VGA monitors. Universally compatible, this USB-C driverless dock supports up to 85W power pass-through – ideal if you don’t wish to travel with a bulky power brick. Instead, you can use your laptop’s USB-C power supply to charge your laptop while also powering the dock. The 10-in-1 design includes three USB-A ports, a 3.5mm audio jack, Micro and SD card slots and one Gigabit Ethernet port.
Universal Compatibility
An ideal plug and play solution for USB-C based devices (Thunderbolt 4, Thunderbolt 3, USB4 and USB-C Alt Mode) running Windows 10 or later, macOS 11 or later, iPadOS 13 or later and Samsung DeX®.
USB-C Driverless Solution
No need to download, install or update software – this 5Gbps USB-C plug-and-play solution provides 5 connectivity ports.
Dual 1080p @ 60Hz Video
Extend visual productivity with the resolution, contrast and colour depth of Ultra HD (Single 4K @ 30Hz) via the DP or HDMI video ports. Dual video output (1080p @ 60Hz) requires you to first connect a DisplayPort monitor, then pick either HDMI or VGA for the second monitor on Windows devices. Single monitor support is available for Samsung DeX® up to 1080p @ 60Hz. iPadOS or macOS supports single 4K @ 30Hz. For macOS, the dual video is only supported in mirror mode (not extended) up to 4K @ 30Hz.
Supports up to 85W Power Pass-Through
Plug your laptop’s USB-C power adapter (85W or greater) into the dock for pass-through power to the laptop (USB-C device must support Power Delivery), or power the dock and connected devices using the laptop’s battery when traveling. Optional 100W Power Adapter sold separately.

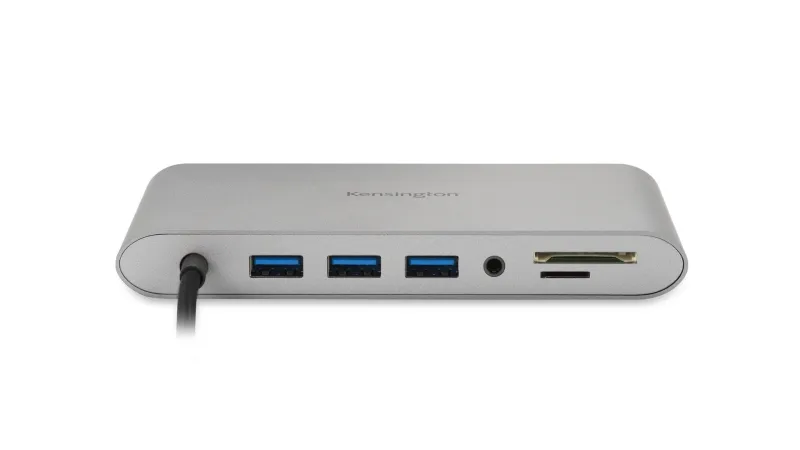

10-in-1 Design with 3 x USB Ports
Extend productivity with 3 x USB-A 3.2 Gen1 ports (5Gbps with 1 x 5V/1.5A and 2 x 5V/0.9A), a dedicated 3.5mm audio jack, UHS-I SD3.0 Micro and SD card slots and 1 x Gigabit Ethernet port.
Sleek, Compact Design
Easily fits into your backpack or carrying case for productivity on the go. Includes a 17cm (6.7″) USB-C cable.
Samsung Dex® Compatible
Enjoy a more computer-like experience with your Samsung Galaxy, Note and Tab devices.
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| HDCP version | 1.4 |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 85 W |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Country of origin | China, Vietnam |
| Plug and Play | Yes |
| Housing material | Aluminium |
| Number of displays supported | 2 |
| Maximum refresh rate | 60 Hz |
| Maximum analog resolution | 1920 x 1080 pixels |
| Maximum digital resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Data transfer rate | 5 Gbit/s |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Card reader integrated | Yes |
| Product colour | Silver |
| Power | |
|---|---|
| USB cable length | 0.17 m |
| Power source type | USB |
| Software | |
|---|---|
| Mobile operating systems supported | iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 200 g |
| Height | 17 mm |
| Depth | 75 mm |
| Width | 137 mm |
| Packaging data | |
|---|---|
| Package weight | 2.44 kg |
| Package height | 110 mm |
| Package depth | 143 mm |
| Package width | 167 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Other features | |
|---|---|
| USB ports quantity | 3 |
| Compatible operating systems | Windows 10 or above; macOS 10.15 or above |
