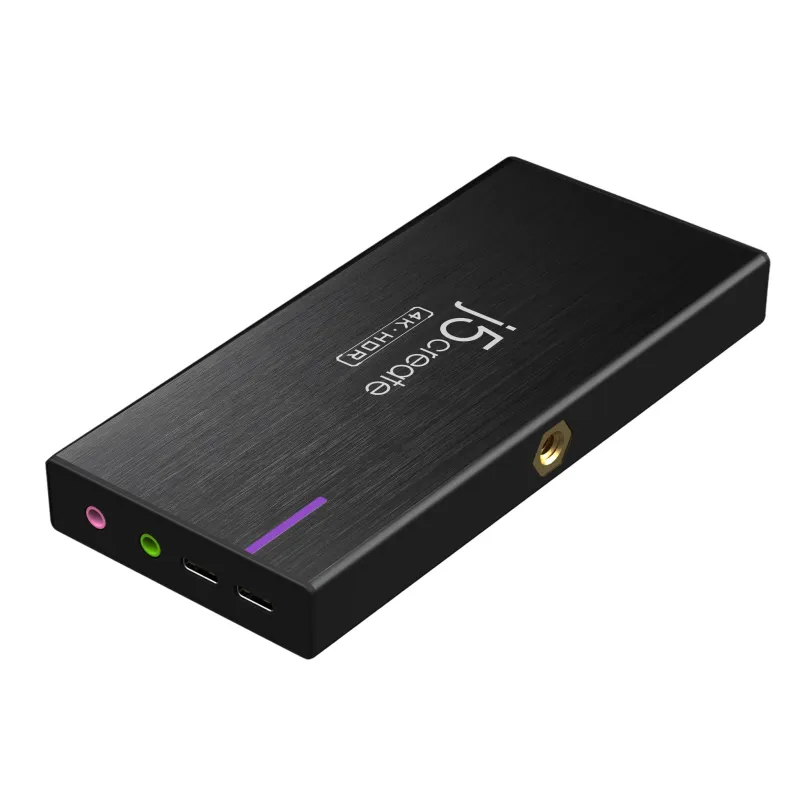

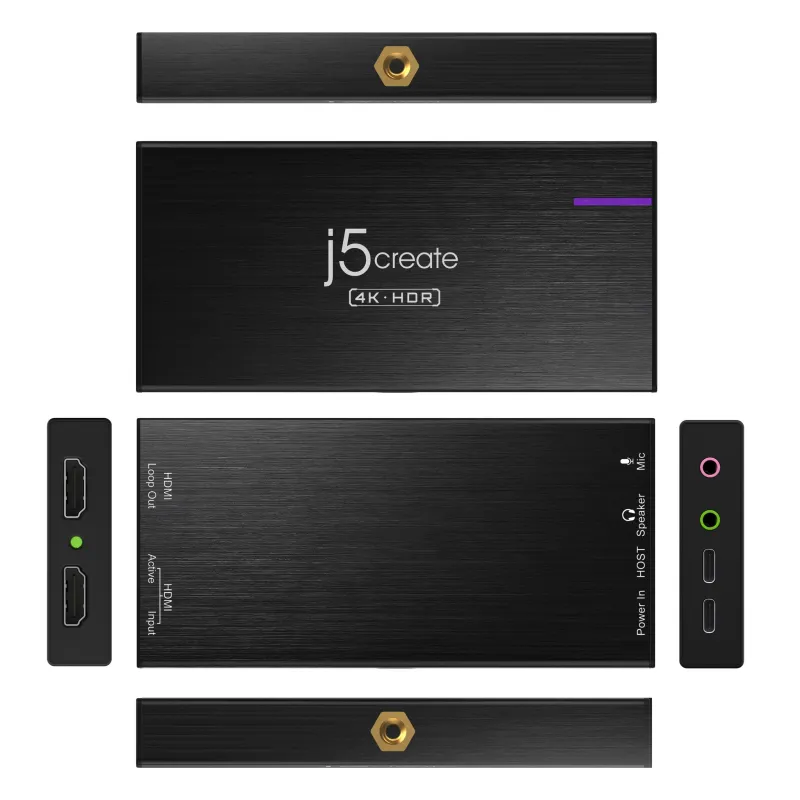

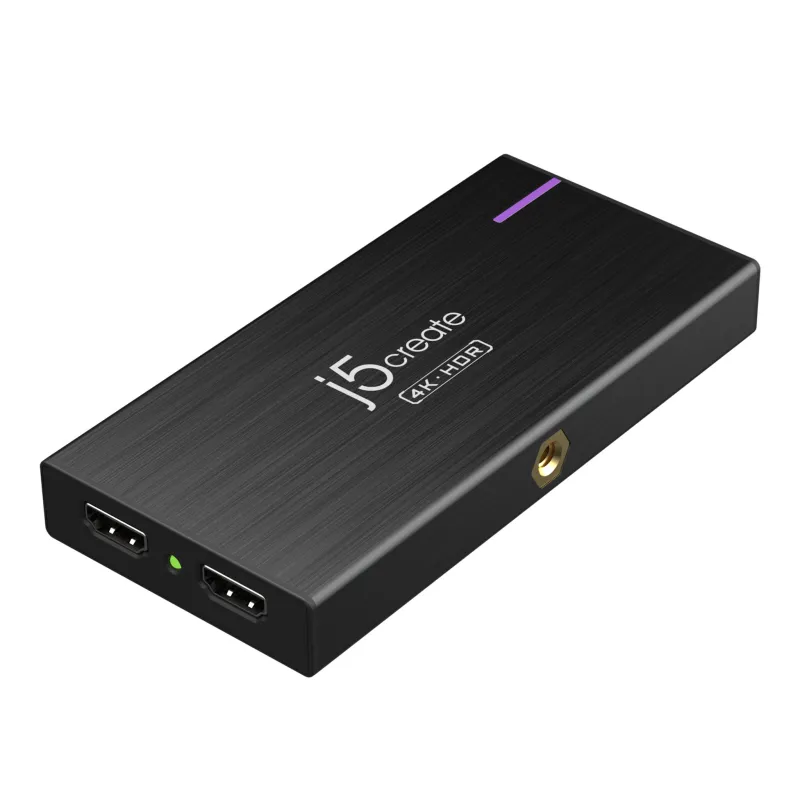

j5create JVA14-N 4K Game Capture Station
- Uncompressed 4K@30 Capture + 4K@60 Loop Out
- 4K60 pass-through support (Uncompressed)
- Power Only: Orange
- No driver installation required
- HDR Passthrough: Supports resolutions up to 4K @ 60 Hz, 1440p @ 144 Hz, and 1080p @ 240 Hz
- Ultra-low latency stream with high-performance USB-C® 3.2 connection
- “LED indicator to keep track of USB™ speeds and compression rates
- USB™ 3.0 connection: Purple (Uncompressed)
- USB™ 2.0 connection: Blue (Uncompressed)”
The JVA14 4K Game Capture Station is a capture device designed to stream and record your gameplay. It supports 4K @ 30 FPS video capture with 4K @ 60 FPS passthrough for consoles capable of 4K resolution. It has a 3.5 mm Audio In port and Mic In port allowing a headset to be connected for live commentary streaming on PlayStation™ 4 / 5, Xbox™ Series X / S, Xbox™ One X / S. It is fully compatible with OBS™ and other video streaming software, making it perfect for live streaming. The JVA14 is plug-and-play and compatible with macOS® and Windows® laptops and desktops.
| Performance | |
|---|---|
| Compatible products | Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended) |
| Country of origin | Taiwan |
| Housing material | Aluminium |
| Plug and Play | Yes |
| LED indicators | Power, USB |
| High Dynamic Range (HDR) supported | Yes |
| Cable length | 1 m |
| Capturing from | Digital camera, Game console, PC |
| Memory card slot(s) | No |
| Video capture resolution (max) | 3840 x 2160 pixels |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Internal | No |
| Product colour | Black |
| Video | |
|---|---|
| Supported video modes | 1080p, 1440p, 2160p |
| Supported resolutions | Maximum Capture Refresh Rate:4K30 FPS, 2K60 FPS, 1080p120 FPSMaximum Passthrough Refresh Rate:4K60 Hz HDR, 2K144 Hz HDR, 1080p240 Hz HDRMaximum Capture Capability:USB™ 3.0: 3840 x 2160@ 30USB™ 2.0:1280 x720 @ 30 |
| Analog signal format system | Not supported |
| Ports & interfaces | |
|---|---|
| Headphone outputs | 1 |
| Number of HDMI outputs | 1 |
| HDMI in | 1 |
| HDMI ports quantity | 2 |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-C |
| USB port | Yes |
| Power | |
|---|---|
| Power supply type | USB |
| Software | |
|---|---|
| Other operating systems supported | Android |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| System requirements | |
|---|---|
| Minimum processor | CPU: Intel®Core™ i7 6700HQ& above. GPU: NVIDA®GTX960M & above |
| Minimum RAM | 8000 MB |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 – 85% |
| Operating relative humidity (H-H) | 0 – 80% |
| Storage temperature (T-T) | -10 – 65 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 142.5 g |
| Height | 63.7 mm |
| Depth | 18.4 mm |
| Width | 134.6 mm |
| Packaging content | |
|---|---|
| Quantity | 1 |
| Quick installation guide | Yes |
| Cables included | HDMI, USB Type-C to USB Type-A, USB Type-C to USB Type-C |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 70 mm |
| Package width | 155 mm |
| Package depth | 75 mm |
| Package weight | 371.5 g |
