IP67 TUV Approved 2-to-1 Solar PV Connector

Original price was: £8.99.Current price is: £2.99.

Clear
Compare
Add to wishlist
SKU: US-8859916403019 Category:
Description

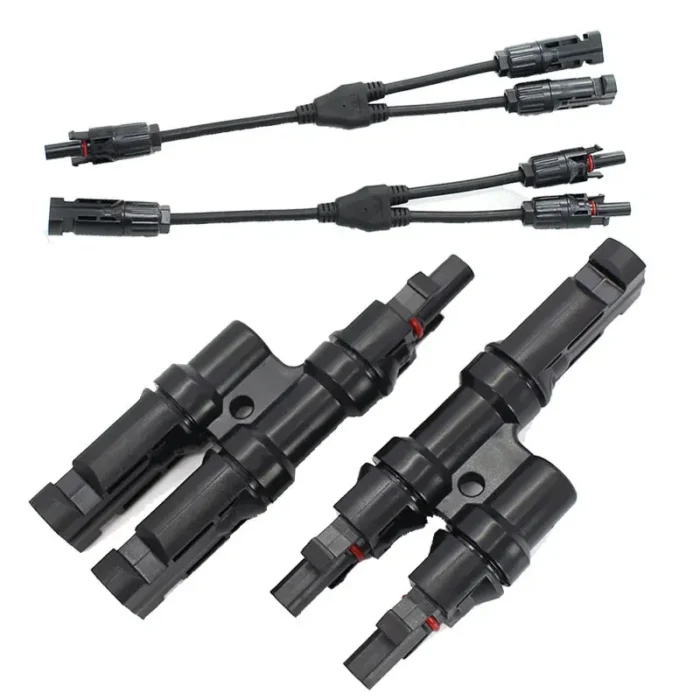

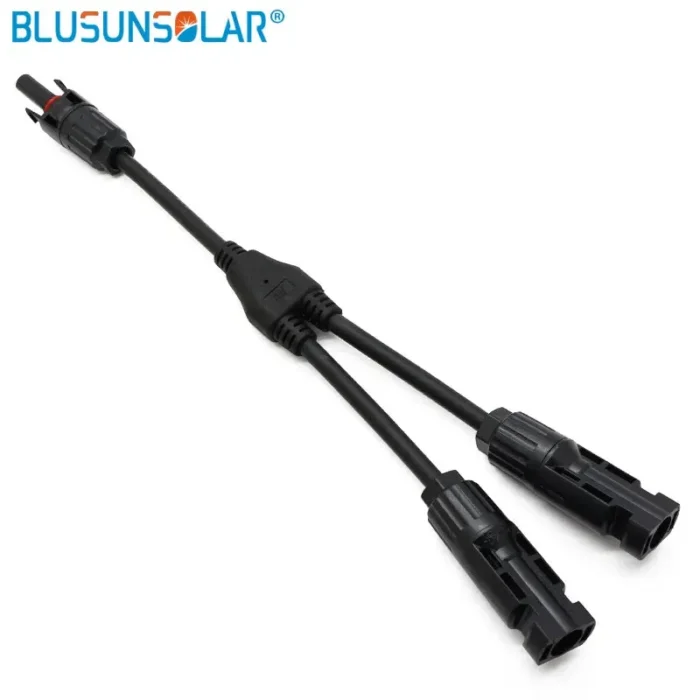

IP67 TUV Approved 2-to-1 Solar PV Connector

IP67 TUV Approved 2-to-1 Solar PV Connector

Achieve efficient parallel connections in your DIY solar system with our IP67 TUV Approved 2-to-1 Solar PV Connector. Featuring a T-Y Type design, this connector seamlessly combines two panels into one, ensuring reliable power transmission. Constructed with 100% PP0 material, it offers durability and safety for your solar installations. Simplify your DIY solar projects with this approved connector solution.

SPECIFICATIONS

Model Number: Y Branch Connectors

Voltage: 380V

Certification: CE

Rated Voltage: TUV1000V DC/UL 600V DC

Rated current: 20A~30A

Suitable cable cross sections: 2.5mm sq~~6.0mm sq

Pin dimension: 4.0mm

Proof voltage: TUV 6000AC (1MIN)

Pollution degree: 2

Protection class: class II

Contact material: Copper,tin plated

Housing material: PPO

Waterproof: IP67





















Additional information
Color

Y Connector A and B

,

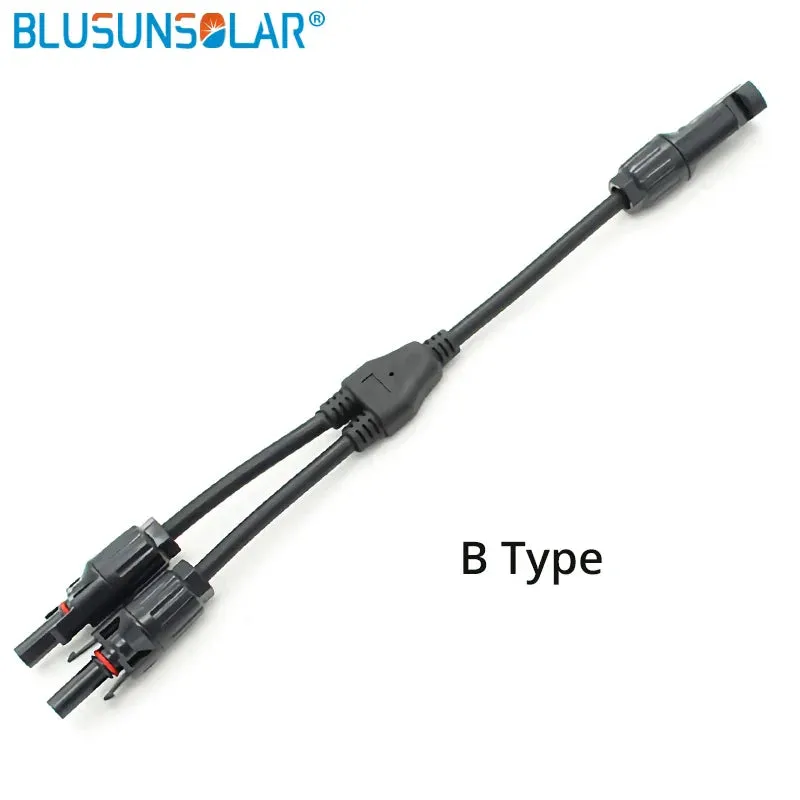

Y Connector B Type

,

T Connector B Type

,

T Connector A Type

,

T Connector A and B

,

Y Connector A Type
