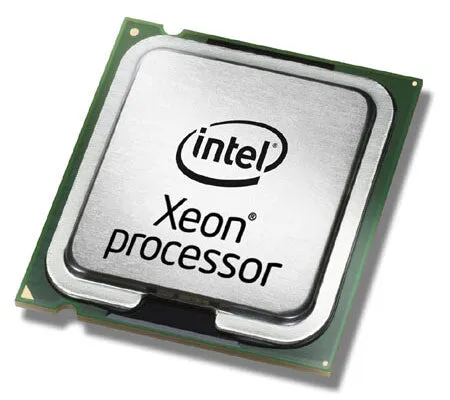

Intel Xeon X5690 processor 3.46 GHz 12 MB Smart Cache

£317.99 Original price was: £317.99.£105.99Current price is: £105.99.

Compare
Add to wishlist
SKU: US-14993614995838 Category: Processors
Share:
  • Description
  • Shipping & Delivery
Description

Intel Xeon X5690 processor 3.46 GHz 12 MB Smart Cache

  • Intel® Xeon® 5000 Sequence X5690 3.46 GHz
  • 12 MB Smart Cache LGA 1366 (Socket B)
  • Processor cores: 6 32 nm 64-bit 130 W
  • Maximum internal memory supported by processor: 288 GB DDR3-SDRAM

Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor’s frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® Trusted Execution Technology
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

AES New Instructions
Advanced Encryption Standard New Instructions (AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, anthentication, random number generation, and authenticated encryption.

Intel® 64
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.¹ Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Intel® Demand Based Switching
Intel® Demand Based Switching is a power-management technology in which the applied voltage and clock speed of a microprocessor are kept at the minimum necessary levels until more processing power is required. This technology was introduced as Intel SpeedStep® Technology in the server marketplace.

Execute Disable Bit
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.

Processor
Processor ARK ID 52576
Processor code SLBVX
Processor codename Westmere EP
Memory bandwidth supported by processor (max) 32 GB/s
Number of QPI links 2
CPU multiplier (bus/core ratio) 26
Bus type QPI
Stepping B1
VID Voltage Range 0.75 – 1.35 V
Processor front side bus 1333 MHz
Thermal Design Power (TDP) 130 W
Processor cache type Smart Cache
Processor cache 12 MB
Processor boost frequency 3.73 GHz
Processor operating modes 64-bit
System bus rate 6.4 GT/s
Processor threads 12
Processor series Intel Xeon 5600 Series
Component for Server/workstation
Cooler included No
Box No
Processor lithography 32 nm
Processor socket LGA 1366 (Socket B)
Processor cores 6
Processor base frequency 3.46 GHz
Processor model X5690
Processor family Intel® Xeon® 5000 Sequence
Processor manufacturer Intel
Memory
ECC Yes
Memory channels Triple-channel
Memory clock speeds supported by processor 800,1066,1333 MHz
Memory types supported by processor DDR3-SDRAM
Maximum internal memory supported by processor 288 GB
Graphics
On-board graphics card No
Features
Commodity Classification Automated Tracking System (CCATS) G077159
Export Control Classification Number (ECCN) 5A992C
Embedded options available No
CPU configuration (max) 2
Physical Address Extension (PAE) Yes
Supported instruction sets SSE4.2
Market segment Server
Execute Disable Bit Yes
Idle States Yes
Thermal Monitoring Technologies No
Processor special features
Intel VT-x with Extended Page Tables (EPT) Yes
Intel 64 Yes
Intel Virtualization Technology (VT-x) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Demand Based Switching Yes
Intel Enhanced Halt State Yes
Intel® Hyper Threading Technology (Intel® HT Technology) Yes
Intel® Turbo Boost Technology 1.0
Intel® AES New Instructions (Intel® AES-NI) Yes
Intel Trusted Execution Technology Yes
Enhanced Intel SpeedStep Technology Yes
General
Product family Xeon
Operational conditions
Tcase 78.5 °C
Logistics data
Harmonized System (HS) code 8542310001
Technical details
Bus bandwidth 6.4
Bus type units GT/s
Processor brand name Intel Xeon
Last change 63903513
Product family Intel Xeon Processor 5000 Sequence
Launch date Q1’11
Status Discontinued
Born on date Q1’11
Product name Intel Xeon X5690 (12M Cache, 3.46 GHz, 6.40 GT/s Intel QPI)
Maximum memory 288 GB
Bus speed 6.4 GT/s
Processor cache 12288 KB
Supported memory types DDR3-SDRAM
Product type Processor
Packaging data
Package type Retail box
Weight & dimensions
Processor package size 42.5mm x 45mm
Other features
Maximum internal memory 288 GB
Cache memory 12 MB
Intel® Virtualization Technology (Intel® VT) VT-d, VT-x
