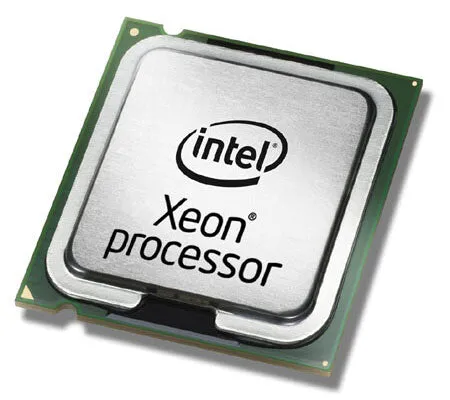

Intel Xeon E5-2630LV4 processor 1.8 GHz 25 MB Smart Cache
- Intel® Xeon® E5 v4 E5-2630LV4 1.8 GHz
- 25 MB Smart Cache LGA 2011-v3
- Processor cores: 10 14 nm 64-bit 55 W
- Maximum internal memory supported by processor: 1.54 TB DDR4-SDRAM
The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers running on, software defined infrastructure supercharged for efficiency, performance, and agile services delivery across cloud-native and traditional applications. They support workloads for cloud, high-performance computing, networking, and storage.
Performance
Built on 14 nm process technology, the Intel® Xeon® processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.
Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.
Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.
| Processor | |
|---|---|
| Processor ARK ID | 92978 |
| Processor code | SR2P2 |
| Processor codename | Broadwell |
| Memory bandwidth supported by processor (max) | 68.3 GB/s |
| Number of QPI links | 2 |
| Bus type | QPI |
| Stepping | R0 |
| VID Voltage Range | 0 – 0 V |
| Thermal Design Power (TDP) | 55 W |
| Processor cache type | Smart Cache |
| Processor cache | 25 MB |
| Processor boost frequency | 2.9 GHz |
| Processor operating modes | 64-bit |
| System bus rate | 8 GT/s |
| Processor threads | 20 |
| Processor series | Intel Xeon E5-2600 v4 |
| Component for | Server/workstation |
| Cooler included | No |
| Box | No |
| Processor lithography | 14 nm |
| Processor socket | LGA 2011-v3 |
| Processor cores | 10 |
| Processor base frequency | 1.8 GHz |
| Processor model | E5-2630LV4 |
| Processor family | Intel® Xeon® E5 v4 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 1.54 TB |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Export Control Classification Number (ECCN) | 5A992C |
| Scalability | 2S |
| Embedded options available | No |
| PCI Express CEM revision | 3.0 |
| CPU configuration (max) | 2 |
| Physical Address Extension (PAE) | Yes |
| Supported instruction sets | AVX 2.0 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 40 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor special features | |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Demand Based Switching | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel® OS Guard | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel TSX-NI version | 1.00 |
| Conflict-Free processor | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® Turbo Boost Technology 2.0 frequency | 2.9 GHz |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel Flex Memory Access | No |
| Enhanced Intel SpeedStep Technology | Yes |
| General | |
|---|---|
| Product family | Xeon |
| Operational conditions | |
|---|---|
| Tcase | 62 °C |
| Technical details | |
|---|---|
| End of servicing updates date | Thursday, June 30, 2022 |
| Servicing status | End of Servicing Updates |
| Bus bandwidth | 8 |
| Bus type units | GT/s |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processor E5 v4 Family |
| Launch date | Q1’16 |
| Status | Launched |
| Bus speed | 8 GT/s |
| Processor cache | 25600 KB |
| Supported memory types | DDR4-SDRAM |
| Product type | Processor |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85423119 |
| Weight & dimensions | |
|---|---|
| Processor package size | 45mm x 52.5mm |
| Other features | |
|---|---|
| Maximum internal memory | 1.5 TB |
| Compatibility | Intel Server System R1208WT2GSRIntel Server System R1208WTTGSRIntel Server System R1304WT2GSRIntel Server System R1304WTTGSRIntel Server System R2208WTTYSRIntel Server System R2208WT2YSRIntel Server System R2208WTTYC1RIntel Server System R2308WTTYSRIntel Server System R2312WTTYSRIntel Server System R2224WTTYSRIntel Server Board S2600CW2RIntel Server Board S2600CW2SRIntel Server Board S2600CWTRIntel Server Board S2600CWTSRIntel Server Board S2600KPRIntel Server Board S2600KPFRIntel Server Board S2600KPTRIntel Server Board S2600TPRIntel Server Board S2600TPFRIntel Server Board S2600WTTRIntel Server Board S2600WTTS1RIntel Compute Module HNS2600KPFRIntel Compute Module HNS2600KPRIntel Compute Module HNS2600TP24RIntel Compute Module HNS2600TPFRIntel Compute Module HNS2600TPRIntel Compute Module HNS2600TP24SR |
