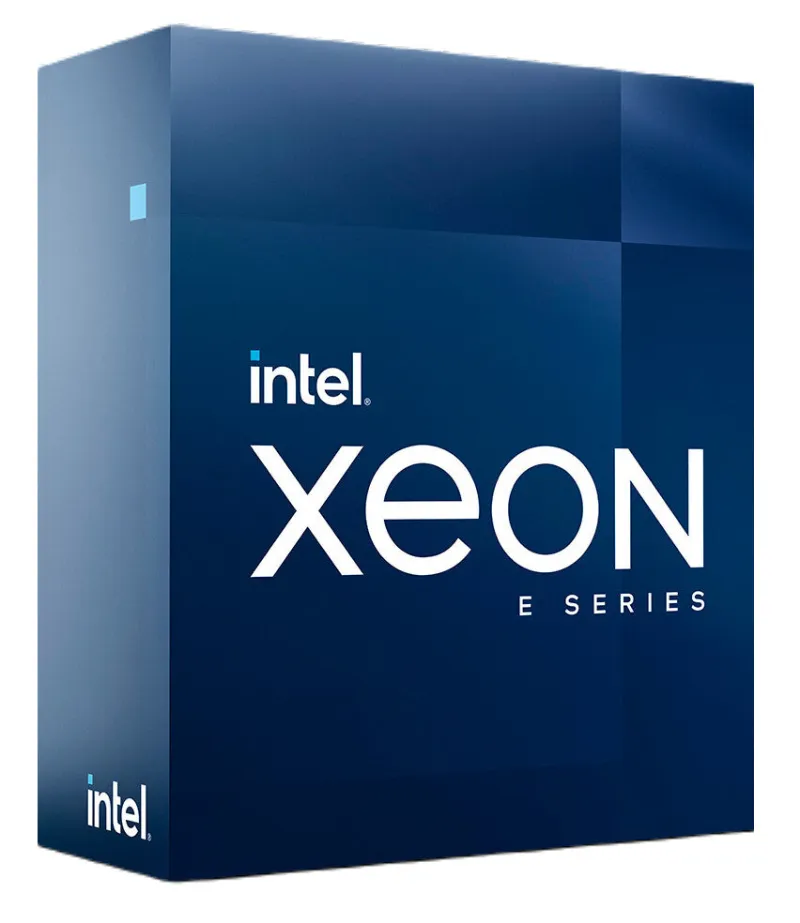

Intel Xeon E-2436 processor 2.9 GHz 18 MB Box
- Intel Xeon E E-2436 2.9 GHz
- 18 MB LGA 1700
- Processor cores: 6 64-bit 65 W
- Maximum internal memory supported by processor: 128 GB DDR5-SDRAM
- Box
| Processor | |
|---|---|
| Processor ARK ID | 236190 |
| Processor codename | Raptor Lake |
| Maximum number of DMI lanes | 8 |
| Stepping | B0 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache | 18 MB |
| Processor boost frequency | 5 GHz |
| Performance cores | 6 |
| Processor operating modes | 64-bit |
| System bus rate | 16 GT/s |
| Processor threads | 12 |
| Box | Yes |
| Processor socket | LGA 1700 |
| Processor cores | 6 |
| Processor base frequency | 2.9 GHz |
| Processor model | E-2436 |
| Processor family | Intel Xeon E |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Dual-channel |
| Memory types supported by processor | DDR5-SDRAM |
| Maximum internal memory supported by processor | 128 GB |
| Graphics | |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card model | Not available |
| On-board graphics card | No |
| Discrete graphics card | No |
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Export Control Classification Number (ECCN) | 5A992C |
| Scalability | 1S |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| PCI Express slots version | 5.0 |
| Maximum number of PCI Express lanes | 20 |
| Use conditions | Server/Enterprise |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor special features | |
|---|---|
| Intel® Total Memory Encryption – Multi Key | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Virtualization Technology with Redirect Protection (VT-rp) | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Optane™ DC Persistent Memory Supported | No |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel® Boot Guard | Yes |
| Microprocessor PCIe Revision | Gen 5 |
| Intel® Total Memory Encryption | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® Turbo Boost Technology 2.0 frequency | 5 GHz |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| General | |
|---|---|
| Product family | Xeon |
| Operational conditions | |
|---|---|
| Tjunction | 100 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8542310001 |
| Technical details | |
|---|---|
| Servicing status | Baseline Servicing |
| Launch date | Q4’23 |
| Status | Launched |
| Other features | |
|---|---|
| Maximum internal memory | 128 GB |
