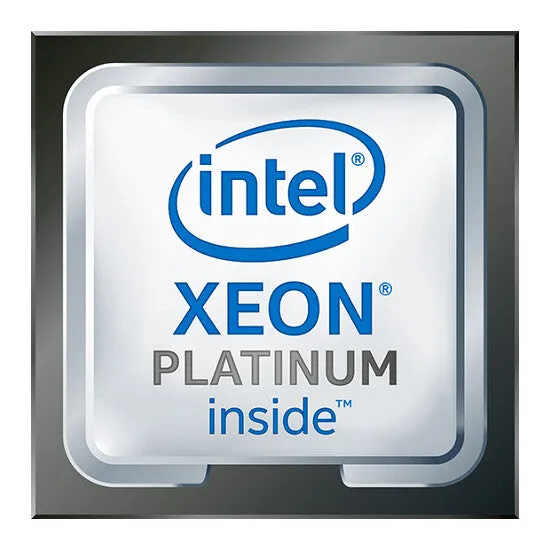

Intel Xeon 8164 processor 2 GHz 35.75 MB L3
- Intel® Xeon® Platinum 8164 2 GHz
- 35.75 MB L3 LGA 3647 (Socket P)
- Processor cores: 26 14 nm 64-bit 150 W
- Maximum internal memory supported by processor: 768 GB DDR4-SDRAM
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
| Processor |
| Processor ARK ID |
120503 |
| Processor code |
SR3BB |
| Processor codename |
Skylake |
| Bus type |
UPI |
| Stepping |
H0 |
| Thermal Design Power (TDP) |
150 W |
| Processor cache type |
L3 |
| Processor cache |
35.75 MB |
| Processor boost frequency |
3.7 GHz |
| Processor operating modes |
64-bit |
| Processor threads |
52 |
| Component for |
Server/workstation |
| Cooler included |
No |
| Box |
No |
| Processor lithography |
14 nm |
| Processor socket |
LGA 3647 (Socket P) |
| Processor cores |
26 |
| Processor base frequency |
2 GHz |
| Processor model |
8164 |
| Processor generation |
1st Generation Intel® Xeon® Scalable |
| Processor family |
Intel® Xeon® Platinum |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
Yes |
| Memory channels |
Hexa-channel |
| Memory clock speeds supported by processor |
2666 MHz |
| Memory types supported by processor |
DDR4-SDRAM |
| Maximum internal memory supported by processor |
768 GB |
| Graphics |
| On-board graphics card |
No |
| Features |
| Commodity Classification Automated Tracking System (CCATS) |
G077159 |
| Export Control Classification Number (ECCN) |
5A992C |
| Scalability |
S8S |
| Embedded options available |
No |
| PCI Express CEM revision |
3.0 |
| Supported instruction sets |
SSE4.2, AVX, AVX 2.0, AVX-512 |
| PCI Express slots version |
3.0 |
| Maximum number of PCI Express lanes |
48 |
| Market segment |
Server |
| Execute Disable Bit |
Yes |
| Processor special features |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel 64 |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| AVX-512 Fused Multiply-Add (FMA) units |
2 |
| Intel® Volume Management Device (VMD) |
Yes |
| Mode-based Execute Control (MBE) |
Yes |
| Intel TSX-NI |
Yes |
| Intel Turbo Boost Max Technology 3.0 |
No |
| Intel® Run Sure Technology |
Yes |
| Intel® Optane™ Memory Ready |
No |
| Intel® vPro™ Platform Eligibility |
Yes |
| Intel TSX-NI version |
1.00 |
| Conflict-Free processor |
Yes |
| Intel® Transactional Synchronization Extensions |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel® Speed Shift Technology |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| General |
| Product family |
Xeon |
| Operational conditions |
| Tcase |
85 °C |
| Logistics data |
| Harmonized System (HS) code |
8542310001 |
| Technical details |
| Processor brand name |
Intel Xeon PlatinumIntel Xeon Platinum Processor |
| Last change |
63903513 |
| Product family |
Intel Xeon Processors |
| Launch date |
Q3’17 |
| Status |
Launched |
| Memory speed (max) |
2666 MHz |
| Number of UPI links |
3 |
| Intel® Run Sure Technology version |
1.00 |
| Intel® Volume Management Device (VMD) version |
1.00 |
| Mode-based Execute Control (MBE) version |
1.00 |
| Maximum memory |
768 GB |
| Intel® Speed Shift Technology version |
1.00 |
| Processor cache |
36608 KB |
| Supported memory types |
DDR4-SDRAM |
| Product type |
Processor |
| Packaging data |
| Package type |
Retail box |
| Package weight |
201 g |
| Package height |
112 mm |
| Package depth |
137 mm |
| Package width |
43 mm |
| Weight & dimensions |
| Processor package size |
76mm x 56.5mm |
| Other features |
| Maximum internal memory |
768 GB |
