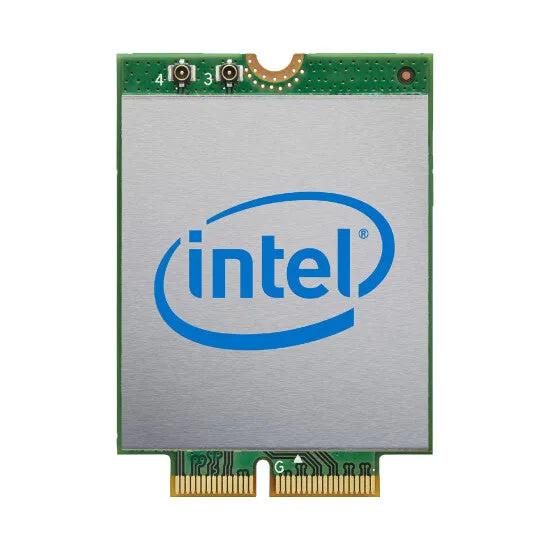

Intel Wi-Fi 6E AX210 Internal WLAN 2400 Mbit/s
- Wireless
- PCI Express WLAN
- 2400 Mbit/s
- Wi-Fi Tri-band (2.4 GHz / 5 GHz / 6 GHz) Bluetooth 5.2
- Internal Component for: PC/Laptop
Orthogonal Frequency-Division Multiple Access (OFDMA)
Orthogonal Frequency-Division Multiple Access (OFDMA) is a multi-user version of the popular orthogonal frequency-division multiplexing (OFDM) digital modulation scheme. This allows simultaneous low-data-rate transmission from several users.
| Ports & interfaces |
| Interface |
WLAN |
| Host interface |
PCI Express |
| Connectivity technology |
Wireless |
| Network |
| MU-MIMO |
Yes |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi |
Yes |
| Networking standards |
IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11a, IEEE 802.11u, IEEE 802.11ac, IEEE 802.11v, IEEE 802.11w, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i |
| Maximum data transfer rate |
2400 Mbit/s |
| Design |
| Package size |
22 x 30 x 2.4 mm |
| Antenna type |
2×2 |
| Component for |
PC/Laptop |
| Internal |
Yes |
| System requirements |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Windows 11 x64, Windows 10 x64 |
| Compatible operating systems |
Windows 11 (64-bit), Windows 10 (64-bit), Linux |
| Operational conditions |
| Operating temperature (T-T) |
0 – 80 °C |
| Weight & dimensions |
| Weight |
2.8 g |
| Logistics data |
| Harmonized System (HS) code |
8517620090 |
| Other features |
| Launch date |
Q4’20 |
| Status |
Launched |
| Processor family |
Intel Wi-Fi 6E Products |
| Supported Under vPro |
No |
| Compliance |
FIPS, FISMA |
| Export Control Classification Number (ECCN) |
5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) |
G165483 |
| Maximum operating temperature |
80 °C |
| Minimum operating temperature |
0 °C |
