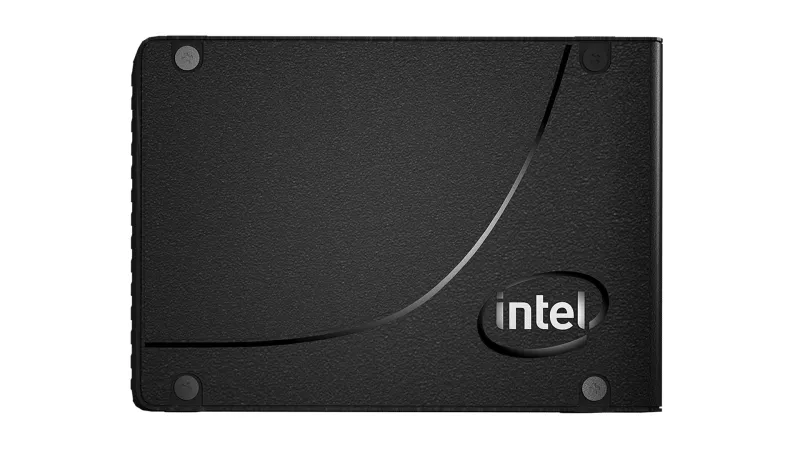

Intel Optane SSDPE21K750GA10 internal solid state drive 750 GB 2.5″ U.2 NVMe 3D XPoint
- 750 GB 2.5″ U.2
- Read speed: 2500 MB/s
- Write speed: 2200 MB/s
- 3D XPoint NVMe
- Hardware encryption 256-bit AES
- Component for: Server/workstation
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
High Endurance Technology (HET)
High Endurance Technology (HET) in SSD’s combines Intel® NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
| Features | |
|---|---|
| Temperature monitoring and logging | Yes |
| SSD ARK ID | 97154 |
| Market segment | Server |
| Mean time between failures (MTBF) | 2000000 h |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| SSD temperature monitoring | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| End-to-End Data Protection | Yes |
| Write latency | 10 µs |
| Read latency | 10 µs |
| Random write (100% span) | 550000 IOPS |
| Random read (100% span) | 550000 IOPS |
| Write speed | 2200 MB/s |
| Read speed | 2500 MB/s |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| Memory type | 3D XPoint |
| NVMe | Yes |
| Interface | U.2 |
| SSD form factor | 2.5″ |
| SSD capacity | 750 GB |
| Power | |
|---|---|
| Power consumption (idle) | 6 W |
| Power consumption (write) | 18 W |
| Power consumption (read) | 18 W |
| Brand-specific features | |
|---|---|
| Intel® Smart Response Technology | No |
| Intel Smart Response Technology version | 0.00 |
| Intel® Remote Secure Erase | No |
| Intel High Endurance Technology (HET) | Yes |
| Intel® Rapid Start Technology | No |
| General | |
|---|---|
| Product family | Optane |
| Operational conditions | |
|---|---|
| Operating / non-operating shock | 1000 G/0.5 msec |
| Non-operating shock | 1000 G |
| Operating shock | 1000 G |
| Non-operating vibration | 3.13 G |
| Operating vibration | 2.17 G |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Other features | |
|---|---|
| Product codename | Cold Stream |
| Product series | Intel® Optane™ SSD DC P4800X Series |
| Product family | Data center SSD |
| Launch date | Q4’17 |
| Drive capacity | 750 GB |
| SSD power consumption (active) | 18 W |
| SSD shock | 1000 G/0.5 msec |
| Last change | 63903513 |
| Intel Rapid Start Technology version | 0.00 |
| Remote Secure Erase (RSE) technology version | 0.00 |
| SSD endurance rating | 41.0 PBW (30DWPD), 82.0 PBW (60DWPD) |
| Product brief URL | https://www.intel.com/content/www/us/en/solid-state-drives/optane-ssd-dc-p4800x-brief.html |
| SSD power consumption (idle) | 6 W |
| Sequential reading | 2500 MB/s |
| Sequential writing speed | 2200 MB/s |
| Status | Launched |
| SSD hardware encryption | AES 256 bit |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
