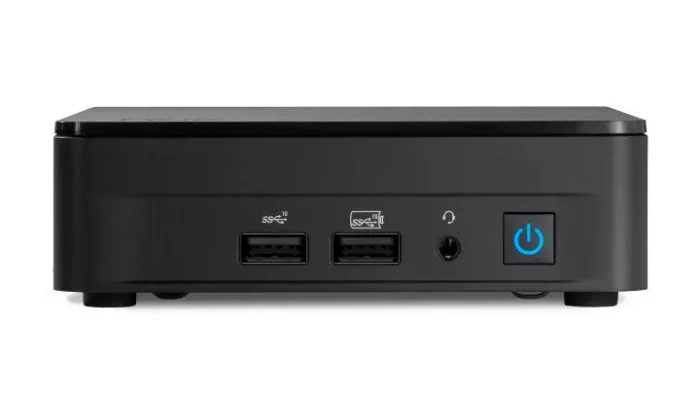

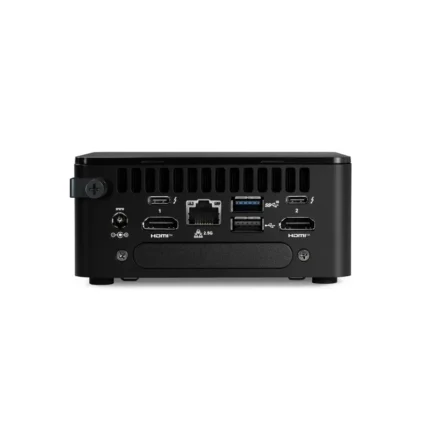

Intel NUC 13 Pro Kit UCFF Black i7-1360P
- UCFF Black
- Built-in processor Intel i7-1360P
- 2 SO-DIMM Maximum internal memory: 64 GB DDR4-SDRAM
- SSD M.2
- Intel Iris Xe Graphics
- Ethernet LAN Wi-Fi
| Processor |
| CPU configuration (max) |
1 |
| Processor codename |
Raptor Lake |
| Processor cache |
18 MB |
| Efficient-core boost frequency |
3.7 GHz |
| Performance-core boost frequency |
5 GHz |
| Efficient cores |
8 |
| Performance cores |
4 |
| Processor boost frequency |
5 GHz |
| Processor threads |
16 |
| Processor cores |
12 |
| Processor model |
i7-1360P |
| Processor generation |
13th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Built-in processor |
Yes |
| Memory |
| Non-ECC |
Yes |
| ECC |
No |
| Maximum internal memory |
64 GB |
| Memory channels |
Dual-channel |
| Supported memory types |
DDR4-SDRAM |
| Memory voltage |
1.2 V |
| Supported memory clock speeds |
3200 MHz |
| Number of memory slots |
2 |
| Number of DIMM slots |
2 |
| Memory slots type |
SO-DIMM |
| Storage |
| Number of storage drives supported |
2 |
| NVMe |
Yes |
| Storage drive interface |
PCI Express, Serial ATA |
| SSD form factor |
M.2 |
| Storage drive sizes supported |
M.2 |
| Supported storage drive types |
SSD |
| Graphics |
| Number of displays supported |
4 |
| Maximum resolution |
7680 x 4320 pixels |
| On-board graphics card model |
Intel Iris Xe Graphics |
| Graphics card family |
Intel |
| On-board graphics card |
No |
| Audio |
| Built-in speaker(s) |
No |
| Network |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| LAN controller |
Intel I226-V |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| DC-in jack |
Yes |
| Number of SATA III connectors |
1 |
| Thunderbolt 4 ports quantity |
2 |
| Serial port via internal header |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| M.2 card slot (wireless) |
2230 (E-key) (E) |
| USB ports quantity |
4 |
| M.2 card slot (storage) |
2280 NVMe (M); 2242 SATA (B) |
| Combo headphone/mic port |
Yes |
| DisplayPorts quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
1 |
| Expansion slots |
| Number of M.2 (M) slots |
1 |
| PCI Express slots version |
4.0 |
| Design |
| Product codename |
Arena Canyon |
| Product family |
Intel NUC |
| Status |
Launched |
| ARK ID |
233101 |
| Product type |
Mini PC barebone |
| LED indicators |
Yes |
| On/off switch |
Yes |
| Cooling type |
Active |
| Product colour |
Black |
| Chassis type |
UCFF |
| Performance |
| Export Control Classification Number (ECCN) |
5A992C |
| Commodity Classification Automated Tracking System (CCATS) |
G157815L2 |
| Motherboard form factor |
UCFF |
| Processor special features |
| Intel® High Definition Audio (Intel® HD Audio) |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel ME Firmware Version |
16.1 |
| Intel® Optane™ Memory Ready |
No |
| Intel® Platform Trust Technology (Intel® PTT) |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Execute Disable Bit |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| General |
| Product family |
NUC |
| Software |
| Operating system installed |
No |
| Compatible operating systems |
Windows 10 IoT Enterprise*|Ubuntu*|Linux* |
| Linux operating systems supported |
RedHat EL Linux, Yes |
| Windows operating systems supported |
Windows 10 IoT Enterprise, Windows 11 x64 |
| Logistics data |
| Harmonized System (HS) code |
8471500150 |
| Power |
| Power supply type |
External AC adapter |
| Weight & dimensions |
| Height |
37 mm |
| Depth |
112 mm |
| Width |
117 mm |
| Packaging content |
| Power cord included |
Yes |
| Other features |
| Launch date |
Q1’23 |
| DC input voltage |
12 – 20 V |
| Additional headers |
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2×2 power connector |
