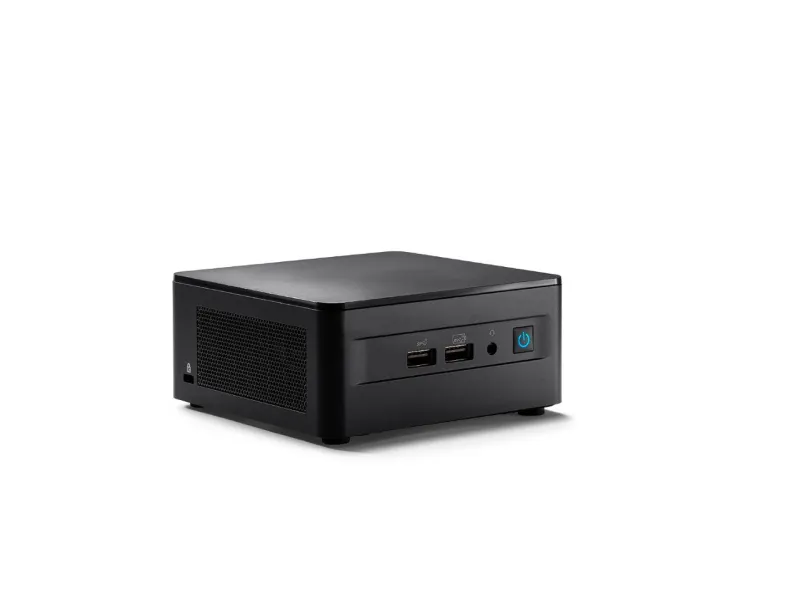

Intel NUC 12 Pro Kit NUC12WSHi7 UCFF Black i7-1260P
- UCFF Black
- Built-in processor Intel i7-1260P
- 2 SO-DIMM Maximum internal memory: 64 GB DDR4-SDRAM
- SSD M.2,2.5
- On-board graphics card Intel Iris Xe Graphics
- Ethernet LAN Wi-Fi
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.
Intel® ME Firmware Version
Intel® Management Engine Firmware (Intel® ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.
Max Turbo Frequency
Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.
Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.
Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.
Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.
Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
| Processor | |
|---|---|
| CPU configuration (max) | 1 |
| Thermal Design Power (TDP) | 35 W |
| Processor cache | 18 MB |
| Processor boost frequency | 4.7 GHz |
| Processor cores | 12 |
| Processor model | i7-1260P |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Memory | |
|---|---|
| ECC | No |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 3200 MHz |
| Number of memory slots | 2 |
| Number of DIMM slots | 2 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| Card reader integrated | No |
| Number of storage drives supported | 3 |
| NVMe | Yes |
| Storage drive interface | M.2, Serial ATA III |
| SSD form factor | M.2 |
| Storage drive sizes supported | M.2,2.5 |
| Supported storage drive types | SSD |
| Graphics | |
|---|---|
| Number of displays supported | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| LAN controller | Intel I225-V |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Serial port via internal header | No |
| Ethernet LAN (RJ-45) ports | 1 |
| M.2 card slot (wireless) | 2230 (E-key) (E) |
| USB ports quantity | 4 |
| M.2 card slot (storage) | 2280 NVMe (M); 2242 SATA (B) |
| Combo headphone/mic port | Yes |
| HDMI version | 2.0b |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 1 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0, 4.0 |
| Design | |
|---|---|
| Status | Launched |
| ARK ID | 121640 |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| LED indicators | Yes |
| On/off switch | Yes |
| Cooling type | Active |
| Product colour | Black |
| Chassis type | UCFF |
| Performance | |
|---|---|
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Audio output channels | 7.1 channels |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| BIOS type | EEPROM |
| Number of processors supported | 1 |
| Motherboard form factor | UCFF |
| Processor special features | |
|---|---|
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel ME Firmware Version | 16 |
| Intel® Optane™ Memory Ready | No |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| General | |
|---|---|
| Product family | NUC |
| Software | |
|---|---|
| Compatible operating systems | Windows 10 IoT Enterprise*|Linux* |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 IoT Enterprise, Windows 10 x64, Windows 11 x64 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8471500150 |
| Power | |
|---|---|
| Power supply | 120 W |
| Power supply type | External AC adapter |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Weight & dimensions | |
|---|---|
| Height | 54 mm |
| Depth | 112 mm |
| Width | 117 mm |
| Other features | |
|---|---|
| Launch date | Q3’22 |
| Number of SATA connectors | 1 |
| Additional headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2×2 power connector |
