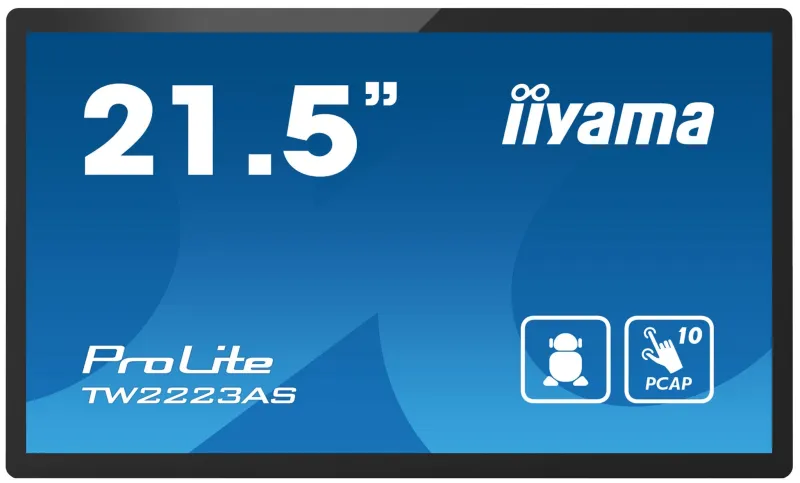

iiyama TW2223AS-B1 touch control panel 54.6 cm (21.5″) 1920 x 1080 pixels
21.5” Full HD PCAP 10pt interactive Touch Panel PC with Android OS and edge-to-edge glass design
The ProLite TW2223AS-B1 interactive Touchpanel-PC with an elegant edge-to-edge glass design is a perfect choice for high-use environments. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 16GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.
| Display |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio |
3000:1 |
| Native aspect ratio |
16:9 |
| Number of simultaneous touchpoints |
10 |
| Touchscreen technology |
Projected capacitive system |
| Display brightness |
400 cd/m² |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
54.6 cm (21.5″) |
| Performance |
| Operating system installed |
Android |
| VESA mounting |
Yes |
| Mean time between failures (MTBF) |
50000 h |
| Product colour |
Black |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Mounting type |
In wall |
| Audio |
| Speaker power |
2 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| RJ-45 ports quantity |
1 |
| HDMI ports quantity |
1 |
| Power |
| Power consumption (typical) |
23 W |
| Power supply location |
External |
| Power source type |
AC |
| Weight & dimensions |
| Weight |
3.61 kg |
| Height |
302 mm |
| Depth |
32 mm |
| Width |
504.5 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
5.98 kg |
| Package depth |
640 mm |
| Package width |
121 mm |
| Package height |
410 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
AC |
