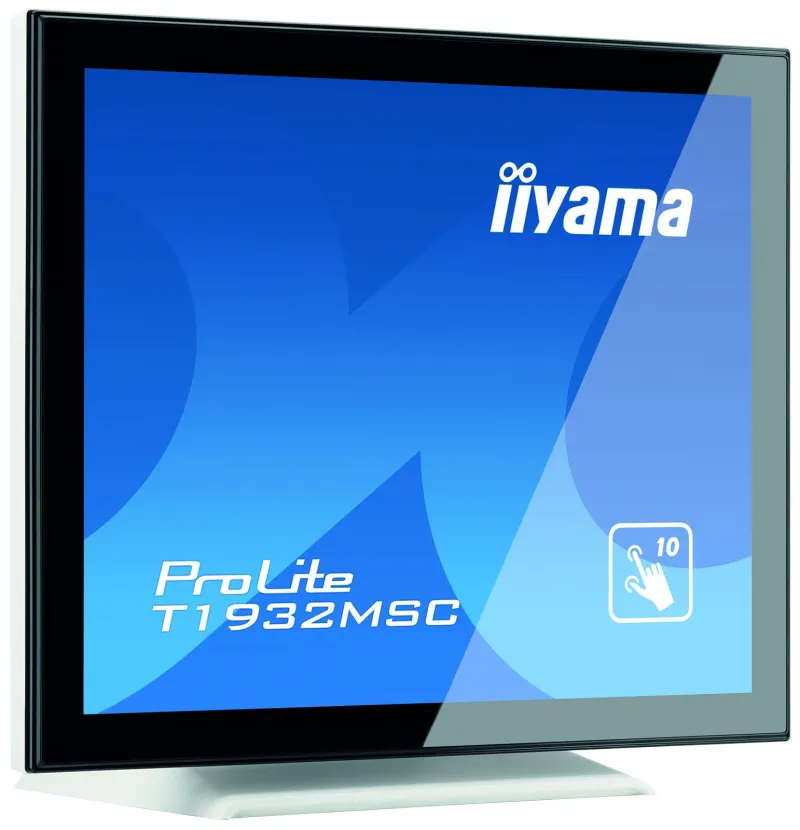

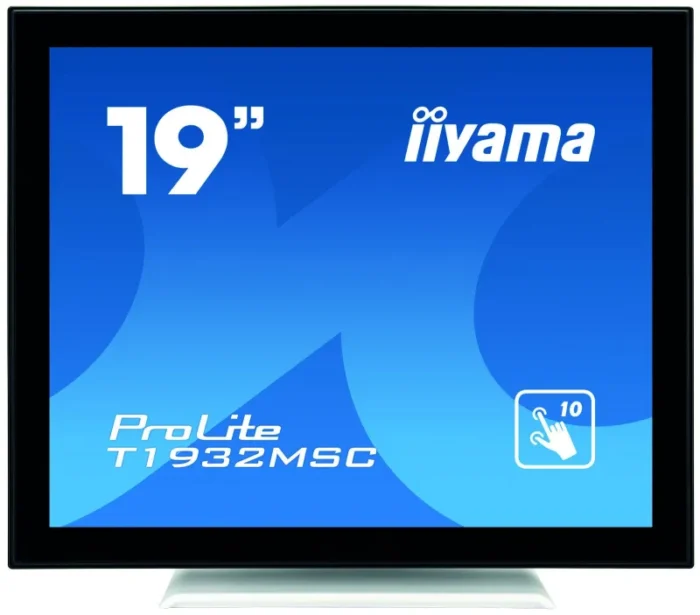

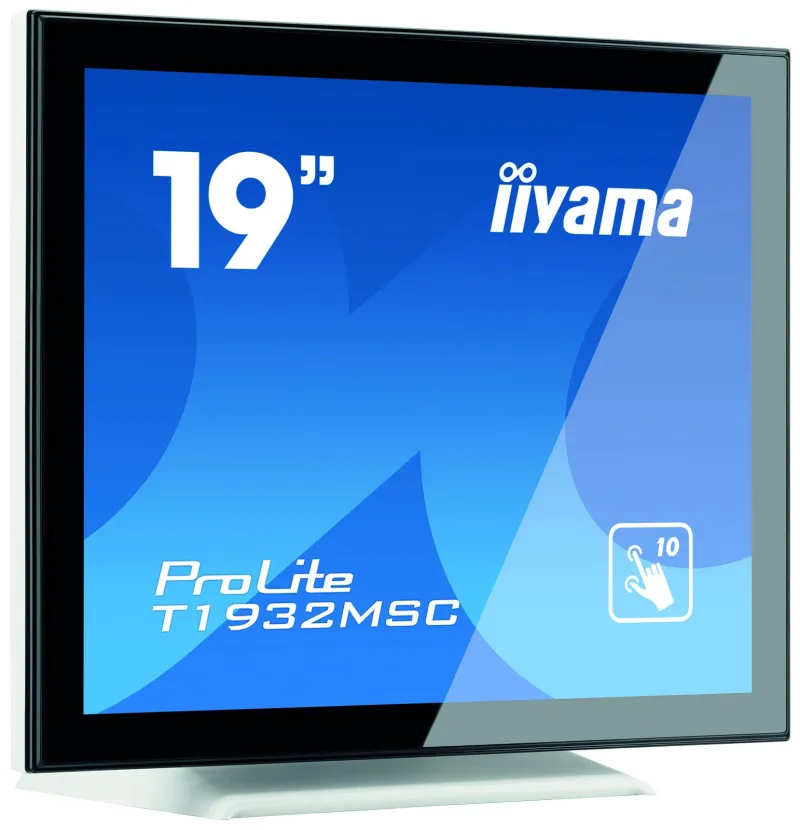

iiyama ProLite T1932MSC-W5AG computer monitor 48.3 cm (19″) 1280 x 1024 pixels LED Touchscreen Multi-user Black, White
- Touchscreen 48.3 cm (19″) LED IPS
- 1280 x 1024 pixels 5:4
- 75 Hz 14 ms 1000:1
- E 14 kWh 25 W
The ProLite T1932MSC-W5AG 19″ multi touch screen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The IPS matrix guarantees high performance with accurate and consistent colour reproduction, and wide viewing angles. Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touch screen with an adjustable stand offering full 90 degree positioning angles. In addition, the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
IPS
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
AG COATING
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
| Display | |
|---|---|
| Separate H/V sync | Yes |
| Display diagonal (metric) | 48 cm |
| Vertical scan range | 50 – 75 Hz |
| Horizontal scan range | 31 – 80 kHz |
| Pixel pitch | 0.2928 x 0.2928 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 75 Hz |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 5:4 |
| Screen shape | Flat |
| Response time | 14 ms |
| Display brightness | 215 cd/m² |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Multi-user |
| Panel type | IPS |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 5:4 |
| Display resolution | 1280 x 1024 pixels |
| Display diagonal | 48.3 cm (19″) |
| Performance | |
|---|---|
| OmniTapps Multitouch compatibility | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Product colour | Black, White |
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| PC Audio in | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Touch port | Yes |
| Ergonomics | |
|---|---|
| Plug and Play | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
| Tilt angle range | 5 – 90° |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100 mm |
| Power | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 369772 |
| Energy efficiency scale | A to G |
| Power supply type | AC |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (off) | 2 W |
| Power consumption (standby) | 2 W |
| Power consumption (typical) | 25 W |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Energy efficiency class (SDR) | E |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight (with stand) | 6.9 kg |
| Height (with stand) | 391 mm |
| Depth (with stand) | 219 mm |
| Width (with stand) | 432 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | Audio (3.5mm), DisplayPort, HDMI, USB |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| Certification | CB, CE, TÜV-Bauart, CU, cULus, VCCI |
| Display viewable area (HxV) | 374.8 x 300 mm |
| International Protection (IP) code | IP54 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
