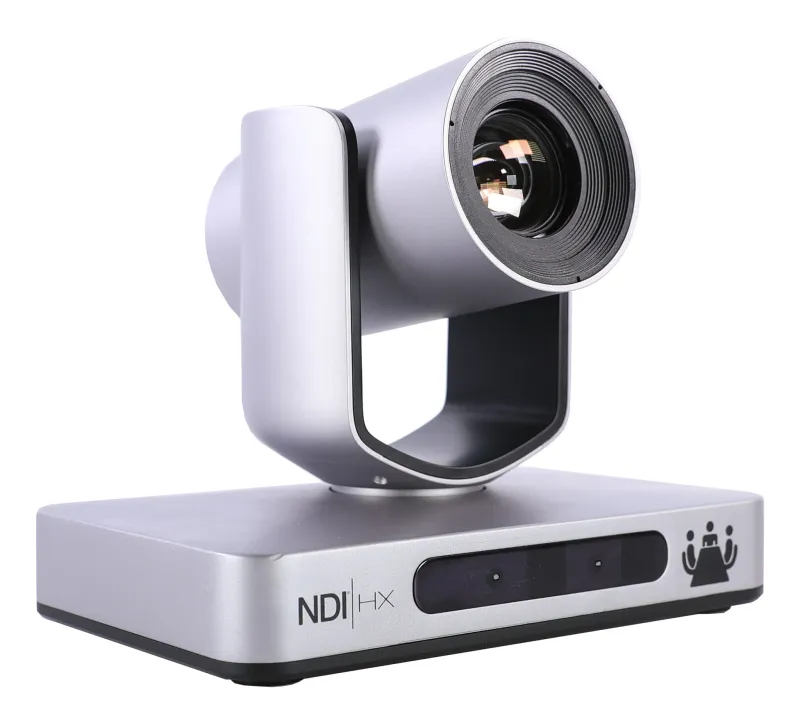

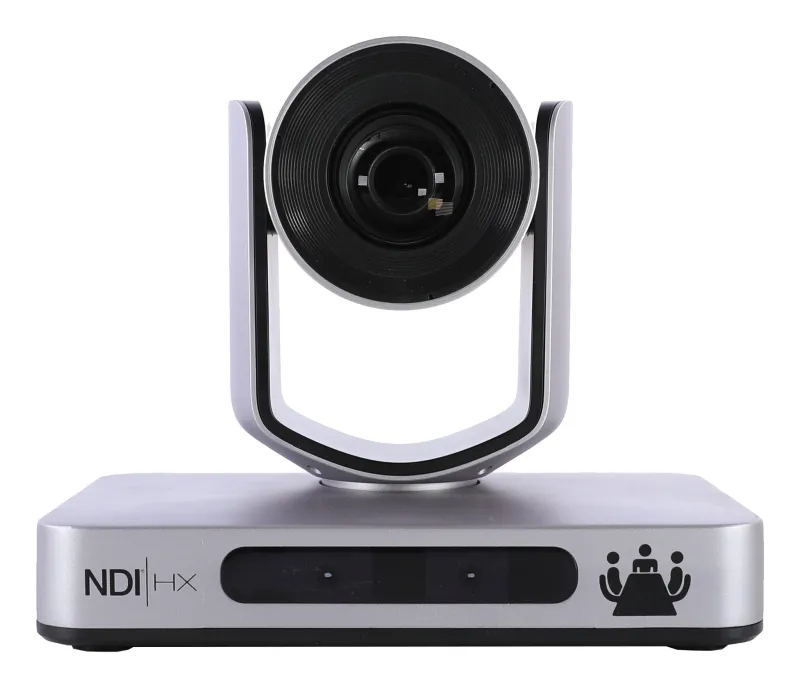

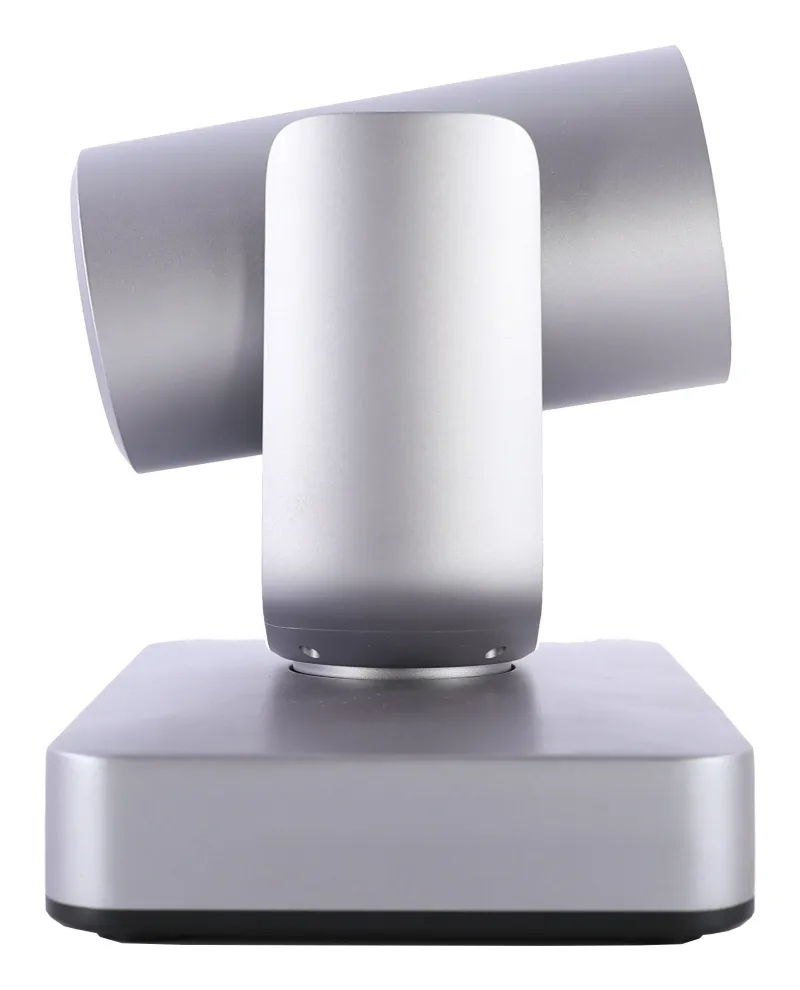

HuddleCamHD SimplTrack Lite 2.14 MP Grey 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8″)
- Frame Rate: Maximum resolution of 1920 x 1080p @ 60 fps (30fps USB)
- Lens Zoom: 20X Optical Zoom, f=4.7-94mm
- Video Sensor: 1/2.8” CMOS, 2.14 MegaPixel
- Audio Input: 3.5mm audio embedding connection
- Pan Movement: ±170°
- Tilt Rotation: Up: +90°, Down: -30°
- Presets: 64 Presets
- Video Signal: USB 2.0, 3G-SDI, HDMI, RTSP, RTMP, NDI®-Enabled
- Lens Field of View: 2.9° (tele) to 59.5° (wide) Horizontal
- Control: IP & RS-232
- Color: Gray
- Power Connection: DC 12V 2.5A or PoE (802.3af)
Track Subjects with Ease
The HuddleCamHD SimplTrack Lite makes it easier than ever to deliver high-quality conferences or lectures with no camera operator – or expertise – required.
– Smooth, automatic motion tracking up to 55ft away with focus up to 20X in 1080p at 60fps (30fps USB) with up to 270° rotation and 59.5° FoV
– True plug and play: Use a USB 2.0 cable to connect to any computer and start auto-tracking
– Set and forget presets: Want to limit your tracking range? Set preset zones to keep the camera centered on whiteboards, conference tables and more
Integrate with Any Platform
With a broad range of output options, including NDI®|HX, USB 2.0, IP, SDI, and HDMI compatibility, the SimplTrack Lite is easy to set up and can integrate seamlessly with your current system.
– Compatible with most videoconferencing, streaming, lecture capture and learning management system platforms
– Built-in 3.5mm Line In audio embedding connection can be connected to any amplifier or mixer
– Included dedicated management software allows for remote operation from any Windows PC, anywhere on the network
Deploy Anywhere
The SimplTrack Lite gives you flexible options for nearly any indoor setting, even without a dedicated PC.
– Featuring PoE (802.3af), plus multiple mounting configurations available to meet the needs of any indoor setting, including inverted mounting
– Capture subjects near or far with automatic tracking distance of up to 55ft, with 59.5° FoV and 270° rotation
– Want more control? Enable Manual Mode via IP or included RS-232 cable to operate the SimplTrack Lite with included IR remote, a PTZ camera joystick controller, or camera control apps
Designed for Scalability
SimplTrack Lite comes equipped with HuddleCamHD’s dedicated management software, allowing enterprises with large-scale deployments to remotely configure and control an unlimited network of cameras from anywhere on the same LAN. The software can automatically detect all SimplTrack Lite cameras on the network, as well as HuddleCamHD’s SimplTrack2 and HuddleView. If your setup includes other cameras, these can be manually added to the management software.
| Camera | |
|---|---|
| 3D NR (Noise Reduction) | Yes |
| Fastest camera shutter speed | 1/10000 s |
| PTZ control | Yes |
| PTZ protocols | VISCA |
| White balance | ATW, Auto, Indoor, Manual, One push, Outdoor, Sodium lamp |
| Minimum illumination | 0.5 lx |
| Vertical field of view (wide) | 36° |
| Vertical field of view (tele) | 2° |
| Horizontal field of view (wide) | 59.5° |
| Horizontal field of view | 170° |
| Horizontal field of view (tele) | 2.9° |
| Digital zoom | 12x |
| Optical zoom | 20x |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8″) |
| Sensor type | CMOS |
| Megapixel (approx.) | 2.14 MP |
| Video | |
|---|---|
| Supported graphics resolutions | 320 x 240, 704 x 480, 1920 x 1080 (HD 1080) |
| Video formats supported | H.264, H.265, M-JPEG |
| Supported video modes | 720p, 1080i, 1080p |
| HD type | Full HD |
| Maximum frame rate | 60 fps |
| Design | |
|---|---|
| Pan speed (min) | 0.1 °/sec |
| Pan speed (max) | 120 °/sec |
| Tilt speed (min) | 0.1 °/sec |
| Tilt speed (max) | 90 °/sec |
| Pan range | 0 – 170° |
| Tilt angle range | 90 – -30° |
| Product colour | Grey |
| Ports & interfaces | |
|---|---|
| 3G-SDI output | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| USB 2.0 ports quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| Power | |
|---|---|
| Power consumption (max) | 20 W |
| DC input voltage | 12 V |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 80% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 10 – 40 °C |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | RS-232 |
| Remote control included | Yes |
| Power supply included | Yes |
| Performance | |
|---|---|
| Remote control type | IR |
| Remote control function | Yes |
| Network | |
|---|---|
| Supported protocols | TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, NDI®, etc. |
| Bit rate control | Constant Bit Rate (CBR) |
| Bit rate range | 0 – 16383 Kbit/s |
| Networking standards | IEEE 802.3af |
| Weight & dimensions | |
|---|---|
| Weight | 1.2 kg |
| Height | 169 mm |
| Depth | 136 mm |
| Width | 211 mm |
