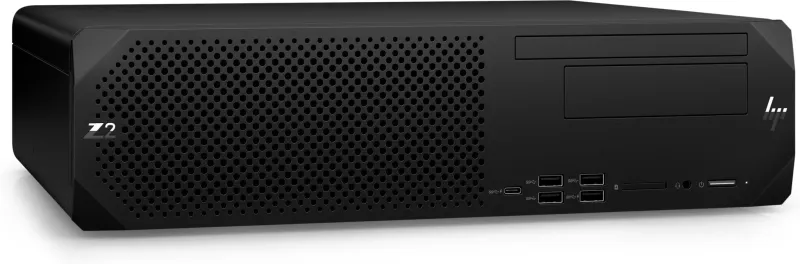

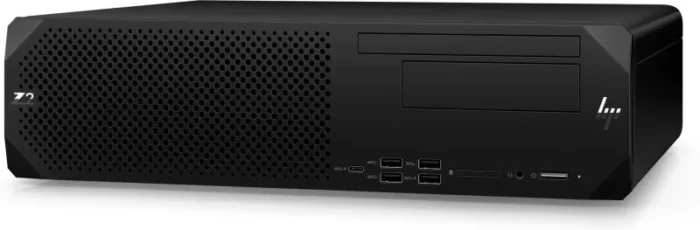

HP Z2 G9 Intel® Core™ i7 i7-12700K 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX A2000 Windows 11 Pro SFF Workstation Black
- Intel® Core™ i7-12700K (up to 5.0 GHz with Intel® Turbo Boost Technology, 25 MB L3 cache, 12 cores, 20 threads)
- Windows 11 Pro (preinstalled with Windows 10 Pro Downgrade)
- NVIDIA RTX™ A2000 (12 GB GDDR6 dedicated)
- 32 GB memory; 1 TB SSD storage
Full size Z tower power at half the size
Get all the power of a full size tower at a fraction of the size. Re-engineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow—from 3D design to real time ray tracing—now and in the future.
| Processor |
| Number of processors installed |
1 |
| Bus type |
DMI4 |
| Processor cache type |
L3 |
| Processor cache |
25 MB |
| Processor frequency |
3.6 GHz |
| Processor boost frequency |
5 GHz |
| Processor threads |
20 |
| Processor cores |
12 |
| Processor model |
i7-12700K |
| Processor generation |
12th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Non-ECC |
Yes |
| Memory clock speed |
4800 MHz |
| Memory slots |
2x DIMM |
| Memory layout (slots x size) |
2 x 16 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
128 GB |
| Internal memory |
32 GB |
| Storage |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express, NVMe |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| SSD memory type |
TLC |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Number of discrete graphics cards |
1 |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
12 GB |
| Discrete graphics card model |
NVIDIA RTX A2000 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
Yes |
| Discrete graphics card |
Yes |
| Network |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Line-out |
Yes |
| Line-in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| HDMI ports quantity |
1 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB 3.2 Gen 2×2 Type-C ports quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
3 |
| Expansion slots |
| PCI Express x16 (Gen 4.x) slots |
3 |
| PCI Express x4 (Gen 3.x) slots |
2 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| Design |
| Country of origin |
China |
| Product colour |
Black |
| Number of 2.5″ bays |
1 |
| Number of 3.5″ bays |
1 |
| Chassis type |
SFF |
| Performance |
| Password protection type |
BIOS, Power on, User |
| Password protection |
Yes |
| Number of speakers |
1 |
| Built-in speaker(s) |
Yes |
| Audio chip |
Realtek ALC3252 |
| Market positioning |
Performance |
| Product type |
Workstation |
| Software |
| Pre-installed software |
HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP PC Hardware Diagnostics Windows; ZCentral Remote Boost; HP Image Assistant; HP Manageability Integration Kit; Performance Advisor 3.0 |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
| Intel 64 |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Embedded options available |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Idle States |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Brand-specific features |
| HP GTIN (EAN/UPC) |
196548894222 |
| HP segment |
Business |
| HP Software provided |
HP PC Hardware Diagnostics UEFI; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit |
| HP Management tools |
HP Driver Packs; HP Management Integration Kit for Microsoft System Center Configuration Management Gen4; HP System Software Manager (download); HP BIOS Configuration Utility (download) |
| HP Security tools |
HP Secure Erase; HP Sure Click; HP BIOSphere Gen6; HP Sure Admin; Hood Sensor Optional Kit; HP Client Security Manager Gen6; HP Sure Start Gen7; HP Sure Recover Gen4; HP Sure Sense Gen2; HP Sure Run Gen5 |
| HP Support Assistant |
Yes |
| Sustainability |
| Sustainable technologies and materials |
Ocean-bound plastic in speaker enclosure; 45% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; 80 Plus® Gold power supplies available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Ocean-bound plastic in speaker enclosure and system fan; Contains recycled metal |
| Weight & dimensions |
| Package weight |
5 kg |
| Package height |
308 mm |
| Package depth |
384 mm |
| Package width |
100 mm |
| Weight |
5.9 kg |
| Height |
100 mm |
| Depth |
308 mm |
| Width |
384 mm |
| Packaging content |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Display included |
No |
| Logistics data |
| Harmonized System (HS) code |
8471500000 |
| Other features |
| Keyboard type |
USB |
| Number of free internal memory expansion slots |
2 |
