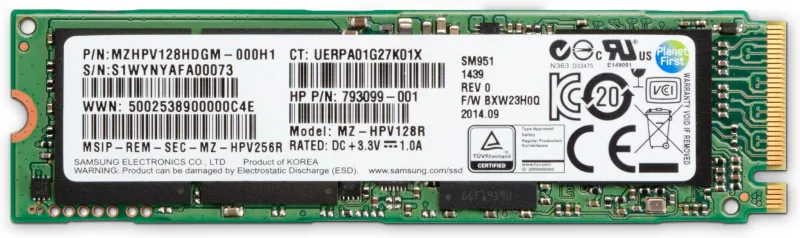

HP Z Turbo Drive Quad Pro 256GB SSD module
- 256 GB PCI Express
- Read speed: 2150 MB/s 300000 IOPS
- Write speed: 1260 MB/s 100000 IOPS
- MLC
The demands on Workstations continue to increase, especially in segments like digital media or imaging, where resolutions and file sizes are increasing. SSD technology is improving to enable greater bandwidth at lower costs/GB. The most intense workflows require greater capacity and greater performance than individual M.2 modules can offer. Combining 4 modules into a card that occupies only one PCIe x16 slot is efficient and meets the requirements for performance and capacity.
| Features | |
|---|---|
| PCI Express interface data lanes | x4 |
| Random write (4KB) | 100000 IOPS |
| Random read (4KB) | 300000 IOPS |
| Write speed | 1260 MB/s |
| Read speed | 2150 MB/s |
| Security algorithms | Not supported |
| Memory type | MLC |
| Interface | PCI Express |
| SSD capacity | 256 GB |
| Operational conditions | |
|---|---|
| Operating shock | 1500 G |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 0 – 70 °C |
| Other features | |
|---|---|
| Compatible products | Z440, Z640, Z840 |
| Internal | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
