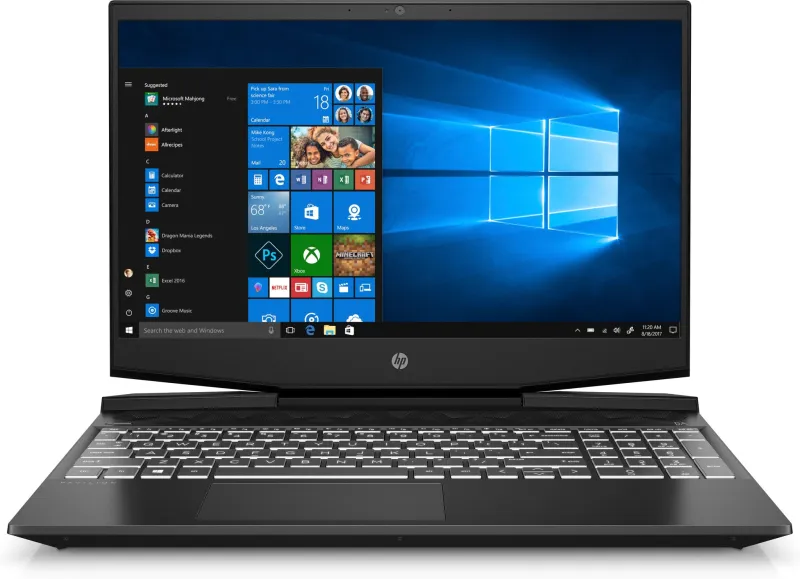

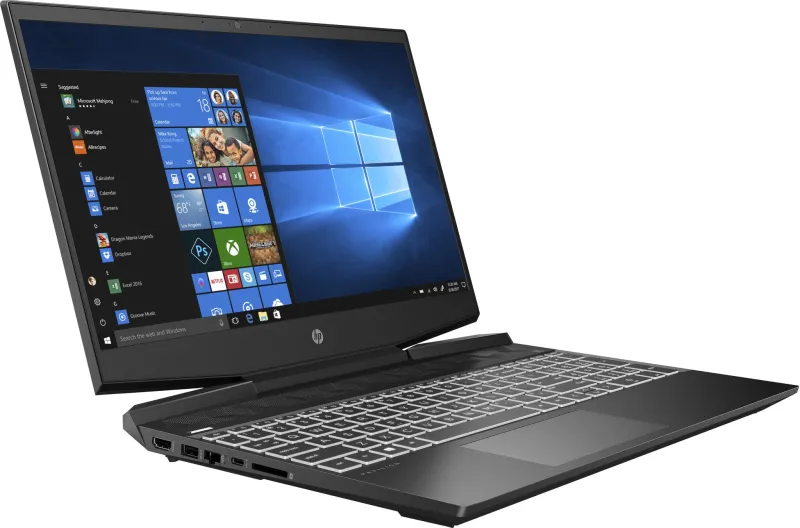

HP Pavilion Gaming 15-dk1024na Intel® Core™ i5 i5-10300H Laptop 39.6 cm (15.6″) Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce RTX 2060 Max-Q Wi-Fi 5 (802.11ac) Windows 10 Home Black
- Intel® Core™ i5-10300H (2.5 GHz base frequency, up to 4.5 GHz with Intel® Turbo Boost Technology, 8 MB L3 cache, 4 cores)
- Windows 10 Home 64 Plus – free upgrade to Windows 11 when available
- 39.6 cm (15.6″) diagonal, FHD (1920 x 1080), 144 Hz, 7 ms response time, IPS, micro-edge, anti-glare, 300 nits, 72% NTSC
- NVIDIA® GeForce RTX™ 2060 with Max-Q design (6 GB GDDR6 dedicated)
- 16 GB memory; 512 GB SSD storage
For multiplayers and multitaskers
Sacrifice nothing with the thin and powerful HP Pavilion Gaming Laptop. Experience high-grade graphics and processing power for gaming and multitasking, plus improved thermal cooling for overall performance and stability. Immerse yourself in the game with a narrow bezel display and custom-tuned audio. The perfect balance between work and play, so you can do it all.
| Design |
| Country of origin |
China |
| Intel® vPro™ Platform Eligibility |
No |
| Market positioning |
Gaming |
| Form factor |
Clamshell |
| Colour name |
Shadow black |
| Product colour |
Black |
| Product type |
Laptop |
| Display |
| NTSC coverage (typical) |
72% |
| Display response rise/fall |
7 ms |
| Maximum refresh rate |
144 Hz |
| Display diagonal (metric) |
39.6 cm |
| RGB colour space |
NTSC |
| Colour gamut |
72% |
| Display brightness |
300 cd/m² |
| Display bezel technology |
Micro-Edge |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6″) |
| Processor |
| Maximum number of PCI Express lanes |
16 |
| PCI Express slots version |
3.0 |
| PCI Express configurations |
1×16, 2×8, 1×8+2×4 |
| Tjunction |
100 °C |
| Configurable TDP-down |
35 W |
| Thermal Design Power (TDP) |
45 W |
| Processor codename |
Comet Lake |
| Processor operating modes |
64-bit |
| Processor lithography |
14 nm |
| Processor socket |
BGA 1440 |
| Processor cache type |
L3 |
| Processor cache |
8 MB |
| System bus rate |
8 GT/s |
| Processor frequency |
2.5 GHz |
| Processor boost frequency |
4.5 GHz |
| Processor threads |
8 |
| Processor cores |
4 |
| Processor model |
i5-10300H |
| Processor generation |
10th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Memory slots (available) |
2 |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Memory clock speed |
2933 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Compatible memory cards |
SD |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express, NVMe |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card ID |
0x9BC4 |
| On-board graphics card OpenGL version |
4.5 |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card base frequency |
350 MHz |
| On-board graphics card dynamic frequency (max) |
1050 MHz |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
6 GB |
| Discrete graphics card model |
NVIDIA GeForce RTX 2060 Max-Q |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of built-in speakers |
2 |
| Audio system |
B&O PLAY |
| Camera |
| Front camera HD type |
HD |
| Front camera signal format |
720p |
| Front camera |
Yes |
| Network |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Miracast |
Yes |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller model |
Realtec RTL8822CE |
| WLAN controller manufacturer |
Realtek |
| Antenna type |
2×2 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge ports |
2 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Performance |
| Accelerometer |
Yes |
| Motherboard chipset |
Intel HM470 |
| Keyboard |
| Full-size keyboard |
Yes |
| Island-style keyboard |
Yes |
| Numeric keypad |
Yes |
| Pointing device |
Touchpad |
| Software |
| Trial software |
McAfee LiveSafe, Microsoft Office 365 |
| Pre-installed software |
Dropbox, Netflix |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Home |
| Processor special features |
| CPU configuration (max) |
1 |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel 64 |
Yes |
| Intel Stable Image Platform Program (SIPP) |
No |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Secure Key |
Yes |
| Intel® OS Guard |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Processor package size |
42 x 28 mm |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Processor ARK ID |
201839 |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Supported instruction sets |
SSE4.1, SSE4.2, AVX 2.0 |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Idle States |
Yes |
| Brand-specific features |
| HP segment |
Home |
| HP front camera |
HP Wide Vision HD |
| HP Imagepad |
Yes |
| HP Smart AC Adapter |
Yes |
| HP speaker type |
HP Dual Speakers |
| HP Audio Boost generation |
Gen 1 |
| HP Audio Boost |
Yes |
| Battery |
| Battery weight |
210 g |
| Fast charging time (50%) |
45 min |
| Fast charging |
Yes |
| Battery capacity |
52.5 Wh |
| Number of battery cells |
3 |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| DC-in jack |
Yes |
| AC adapter power |
200 W |
| Sustainability |
| Sustainability certificates |
EPEAT Silver, ENERGY STAR |
| Weight & dimensions |
| Height |
23.4 mm |
| Depth |
256 mm |
| Width |
360 mm |
| Weight |
2.23 kg |
| Packaging data |
| Package weight |
3.37 kg |
| Package height |
305 mm |
| Package depth |
552 mm |
| Package width |
69 mm |
| General |
| Product family |
Pavilion Gaming |
| Product series |
15 |
| Other features |
| Graphics card interface |
PCIe x16 |
