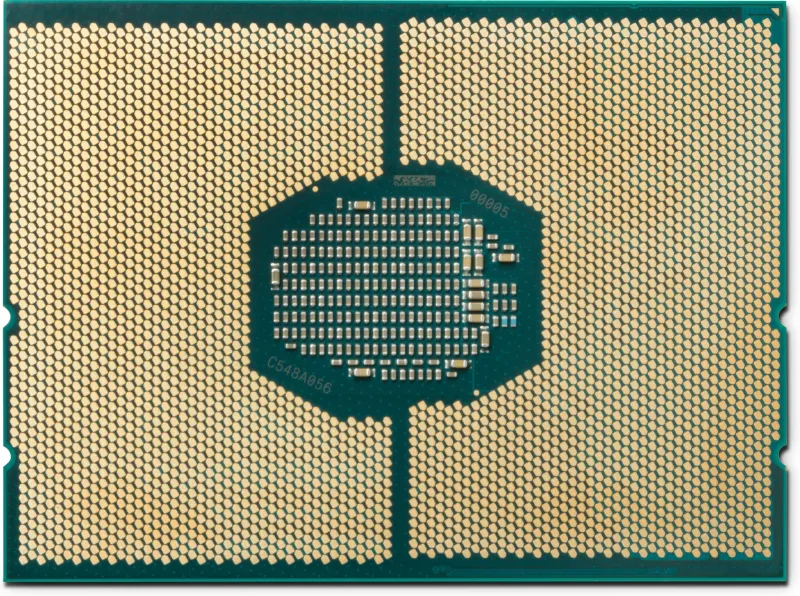

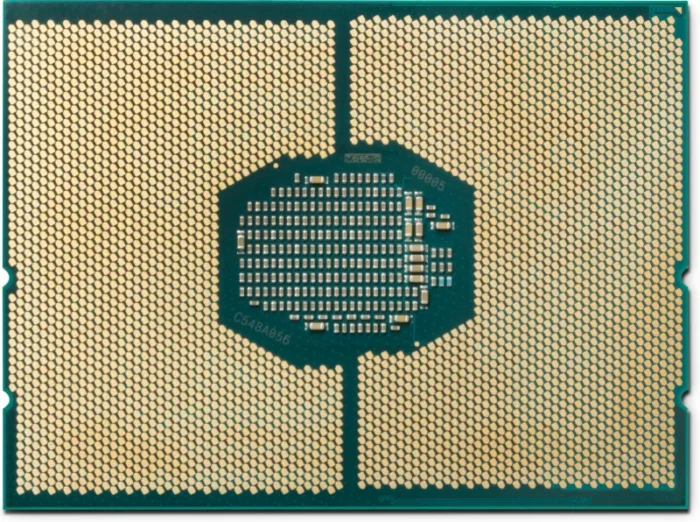

HP 6230R processor 2.1 GHz 35.75 MB
- Intel® Xeon® Gold 6230R 2.1 GHz
- 35.75 MB LGA 3647 (Socket P)
- Processor cores: 26 14 nm 64-bit 150 W
- Maximum internal memory supported by processor: 1.02 TB DDR4-SDRAM
| Processor | |
|---|---|
| Processor codename | Cascade Lake |
| Thermal Design Power (TDP) | 150 W |
| Processor cache | 35.75 MB |
| Processor boost frequency | 4 GHz |
| Processor operating modes | 64-bit |
| Processor threads | 52 |
| Component for | Server/workstation |
| Cooler included | No |
| Processor lithography | 14 nm |
| Processor socket | LGA 3647 (Socket P) |
| Processor cores | 26 |
| Processor base frequency | 2.1 GHz |
| Processor model | 6230R |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor family | Intel® Xeon® Gold |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Hexa-channel |
| Memory clock speeds supported by processor | 2933 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 1.02 TB |
| Graphics | |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card model | Not available |
| On-board graphics card | No |
| Discrete graphics card | No |
| Features | |
|---|---|
| Scalability | 2S |
| Embedded options available | Yes |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 48 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Operational conditions | |
|---|---|
| Tcase | 85 °C |
| Weight & dimensions | |
|---|---|
| Processor package size | 76.0 x 56.5 mm |
