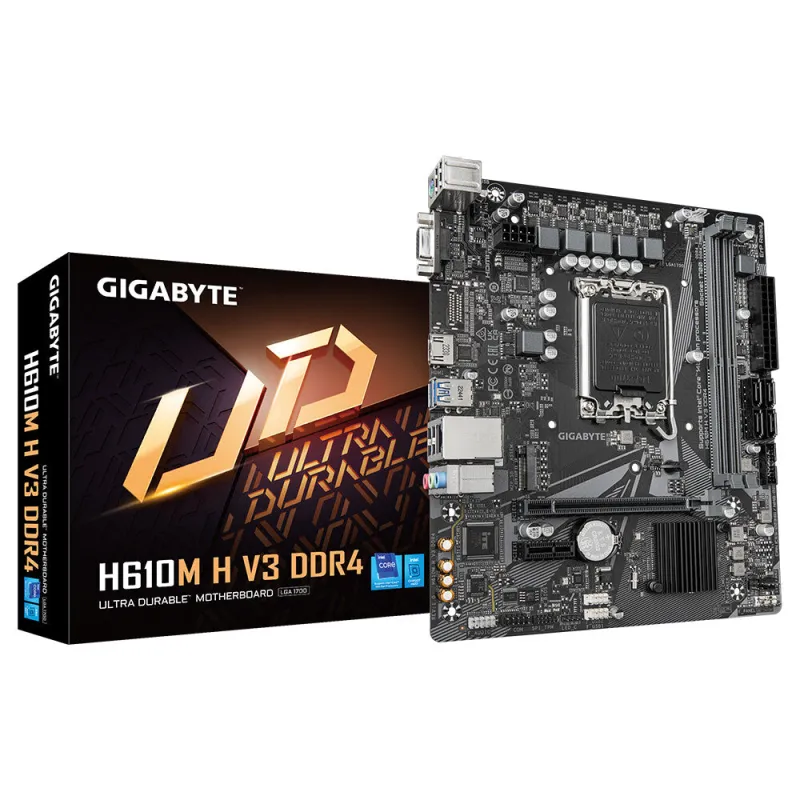

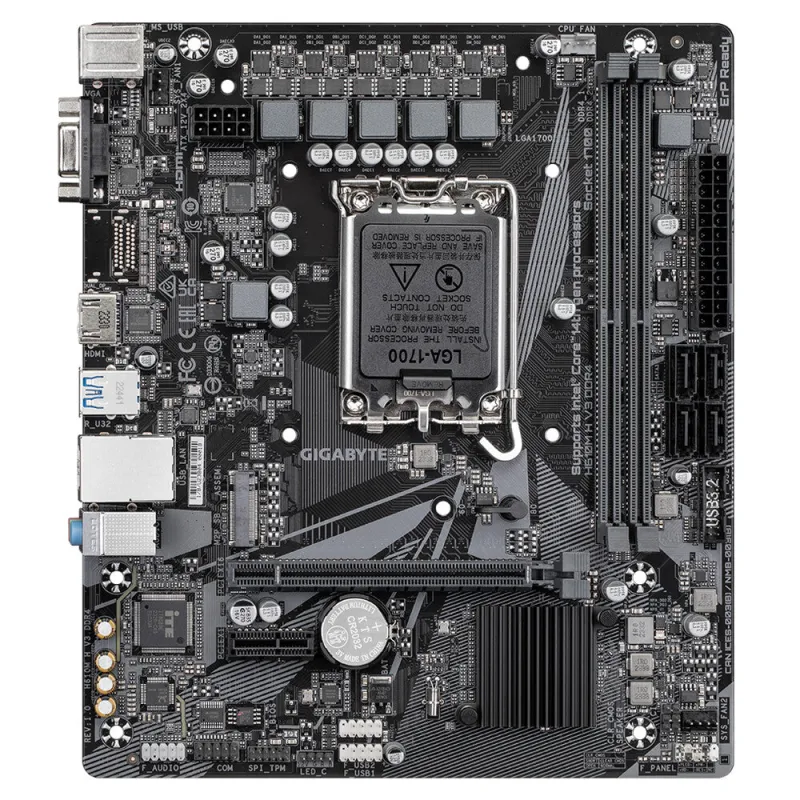

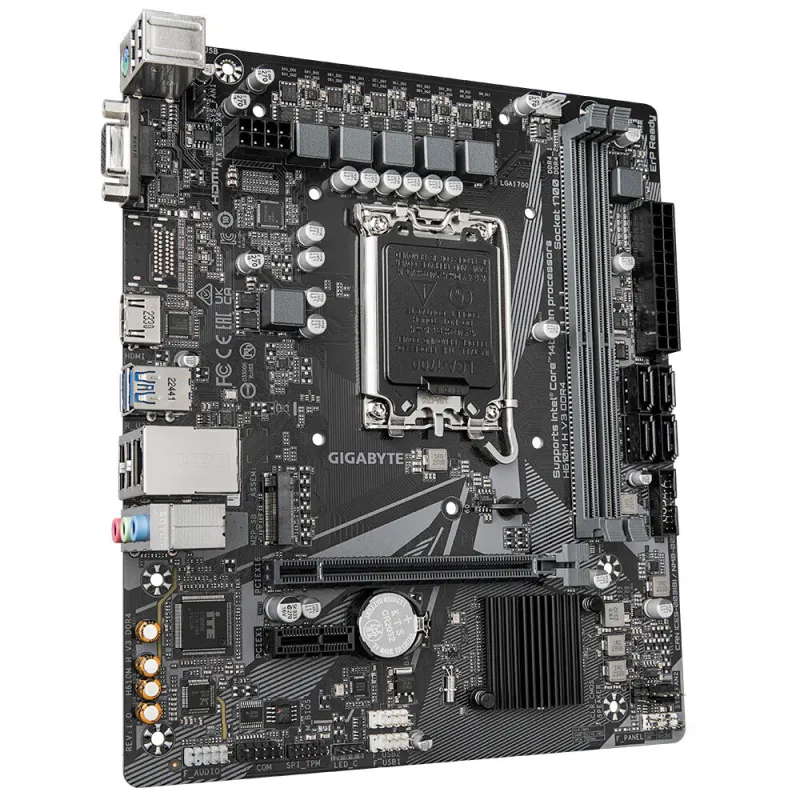

GIGABYTE H610M H V3 DDR4 Motherboard – Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Maximum internal memory | 64 GB |
| Supported memory clock speed (max) | 3200 MHz |
| Supported memory clock speeds | 3200, 3000, 2933, 2666, 2400, 2133 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| Number of storage drives supported | 5 |
| Number of HDDs supported | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Graphics card | HD Graphics |
| Graphics card family | Intel |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |
| Rear panel I/O ports | |
|---|---|
| USB connector type | USB Type-A |
| Microphone in | Yes |
| Headphone outputs | 3 |
| DisplayPorts quantity | 2 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Cooling type | Active |
| Power source type | ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | Intel H610 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 1 |
| BIOS | |
|---|---|
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Packaging data | |
|---|---|
| Package weight | 684 g |
| Package height | 52 mm |
| Package depth | 235 mm |
| Package width | 265 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 215 mm |
| Width | 230 mm |
| Packaging content | |
|---|---|
| Bundled software | Norton Internet Security (OEM version)LAN bandwidth management software |
| Batteries included | Yes |
| Cables included | SATA |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
