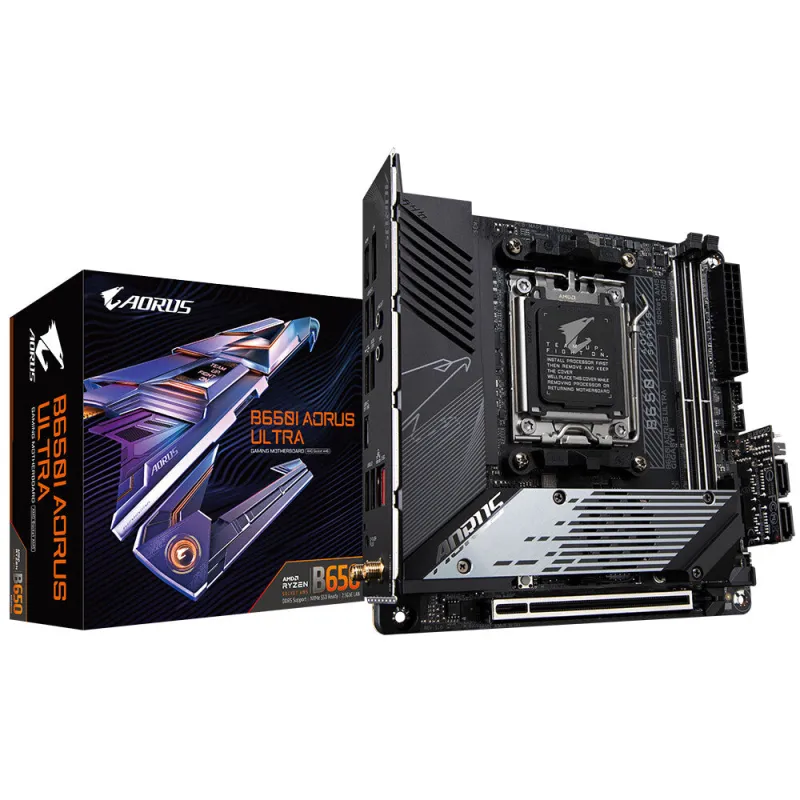

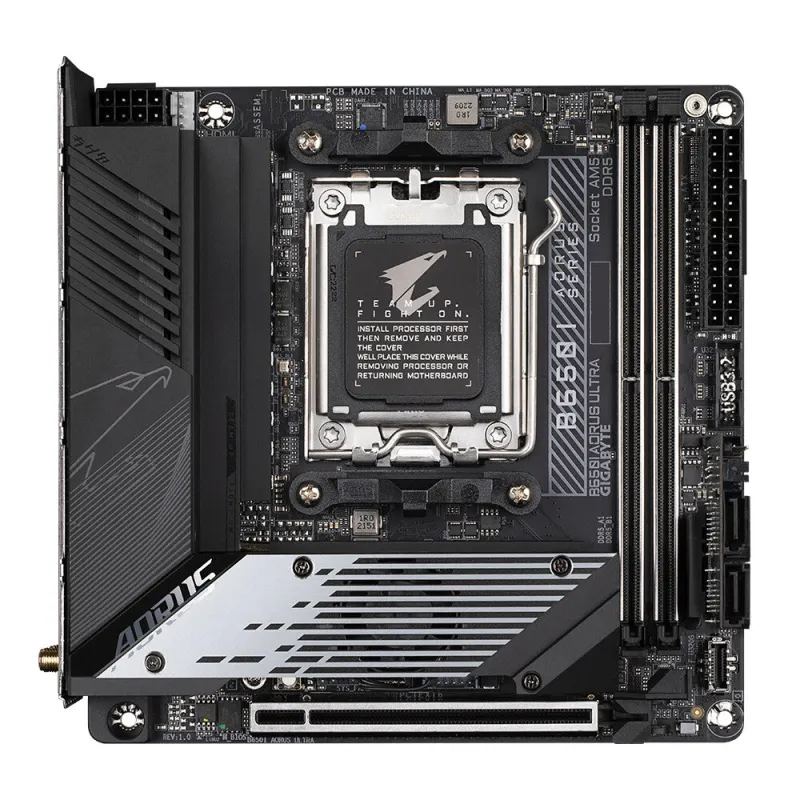

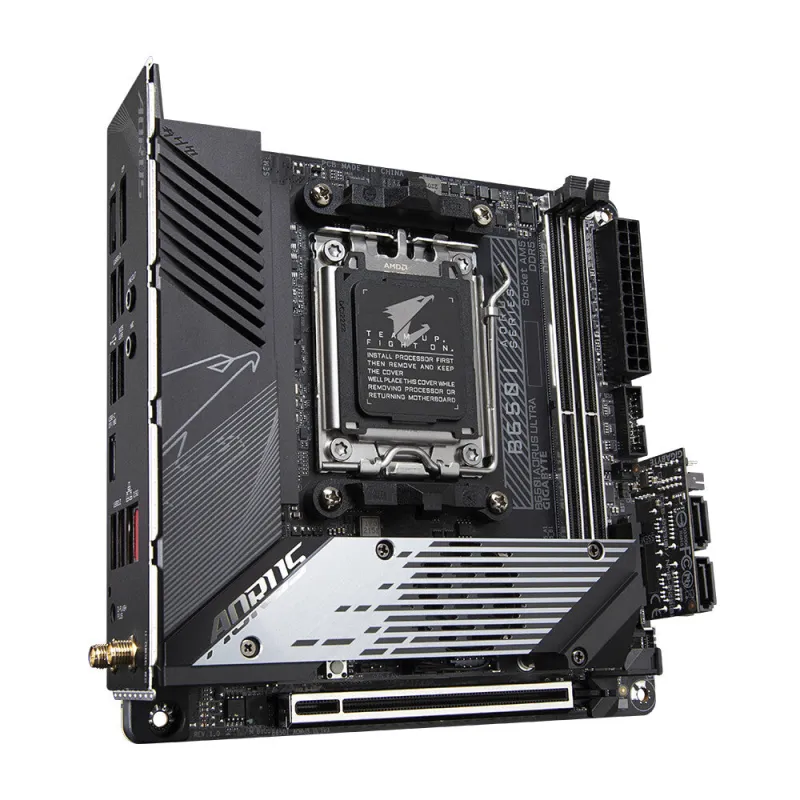

GIGABYTE B650I AORUS ULTRA Motherboard – Supports AMD Ryzen 9000 CPUs, 8+2+1 Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2×2
- AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
- Unparalleled Performance：Direct 8+2+1 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- Next Generation Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
- Fully Covered Heatpipe & M.2 Thermal Guard III with Active Cooling：To Ensure 2280 PCIe 5.0 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Hi-Fi Audio with DTS:X Ultra：ALC4080 CODEC
- Fast Networks：Intel 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：DP, HDMI, Rear USB-C with DP Alt Mode, Front USB-C 20Gb/s
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Processor |
| Maximum internal memory supported by processor |
128 GB |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
AMD Ryzen™ 7 |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
128 GB |
| Supported memory clock speed (max) |
7200 MHz |
| Supported memory clock speeds |
4400,4800,5200,5600,6000,6200,6400,6800,7000,7200 MHz |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Number of storage drives supported |
7 |
| Number of HDDs supported |
4 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| Discrete graphics support |
Yes |
| DirectX version |
12.0 |
| HDCP |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| RGB LED pin header |
Yes |
| 12V power connector |
Yes |
| CPU fan connector |
Yes |
| Number of EATX power connectors |
1 |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2×2 connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
1 |
| Rear panel I/O ports |
| USB connector type |
USB Type-A, USB Type-C |
| WiFi-AP antenna jack |
2 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2×2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Network |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| PC health monitoring |
Fan, Temperature, Voltage, Water cooling |
| Product colour |
Black |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC4080 |
| Motherboard chipset |
AMD B650 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
mini ITX |
| Component for |
PC |
| Expansion slots |
| 3rd M.2 highest PCI Express generation |
4.0 |
| 3rd M.2 largest key size |
2280 |
| 2nd M.2 highest PCI Express generation |
4.0 |
| 2nd M.2 largest key size |
2280 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 1st M.2 largest key size |
2280 |
| Number of M.2 (M) slots |
3 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| BIOS |
| System Management BIOS (SMBIOS) version |
2.7 |
| Desktop Management Interface (DMI) version |
2.7 |
| Clear CMOS jumper |
Yes |
| ACPI version |
5.0 |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Battery |
| Battery type |
CR2032 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells |
1 |
| Battery weight |
3 g |
| Lithium weight per battery |
0.07 g |
| Packaging data |
| Package weight |
1.62 kg |
| Package height |
95 mm |
| Package depth |
227 mm |
| Package width |
235 mm |
| Logistics data |
| Country of origin |
China |
| Products per shipping (inner) case |
1 pc(s) |
| Weight & dimensions |
| Height |
35 mm |
| Depth |
170 mm |
| Width |
170 mm |
| Packaging content |
| Bundled software |
Norton® Internet Security (OEM version)LAN bandwidth management software |
| Antenna included |
Yes |
| Batteries included |
Yes |
| Cables included |
SATA |
| Technical details |
| Warranty period |
3 year(s) |
