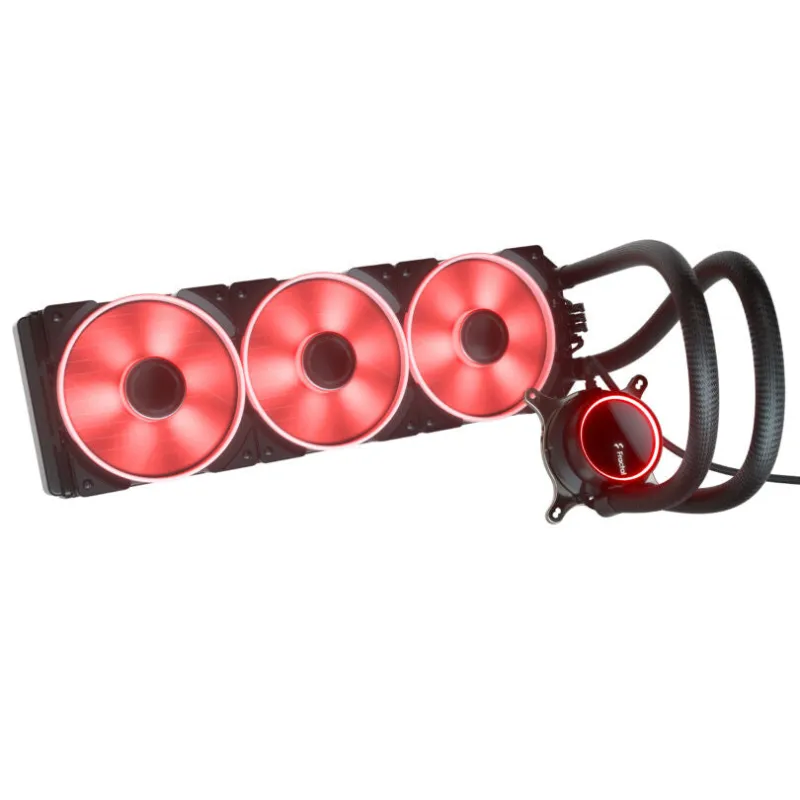

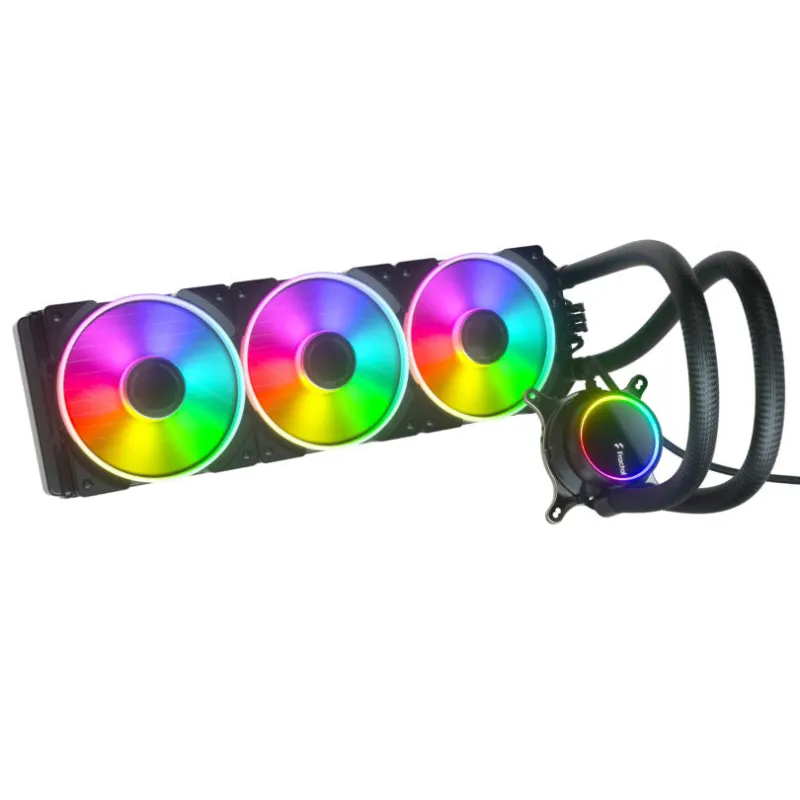

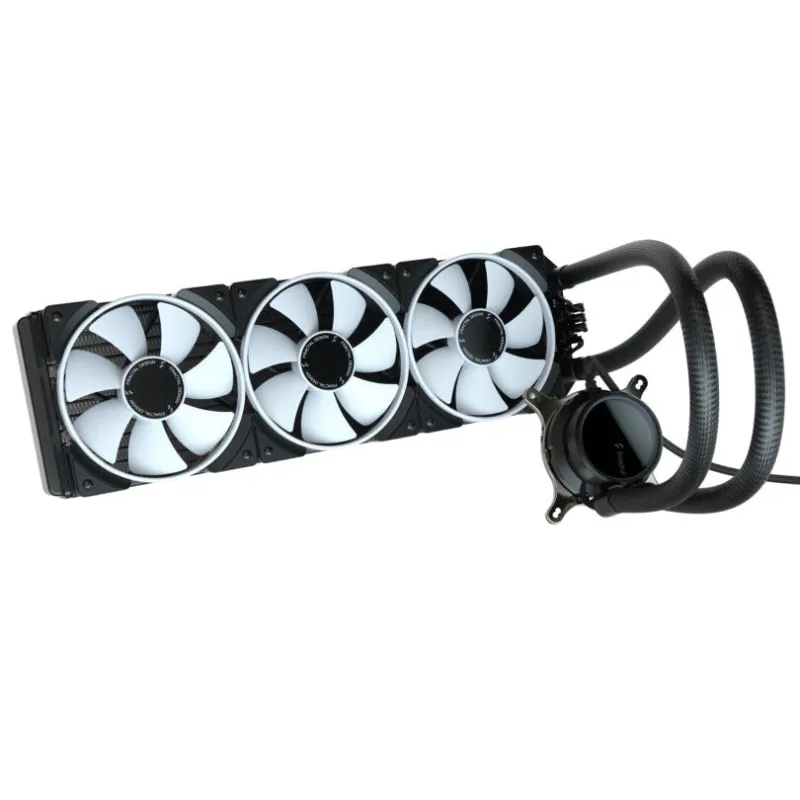

Fractal Design Celsius+ S36 Prisma Processor All-in-one liquid cooler Black 1 pc(s)
- Tinted glass pump face with backlit logo and ARGB LED effects
- Smart auto control mode dynamically adjusts fan and pump speeds for the ideal balance of silence and cooling performance
- Twist the pump face to change from auto to PWM mode for full user control
- ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation
- Sleeved tubing with concealed wiring connects power and ARGB for the entire system at the pump
- Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome support
- Pre-applied thermal paste guarantees optimal application with even coverage
- Low-permeability rubber tubing with nylon braided sleeves for extra durability and an added touch of style
- Articulating elbow fittings make tubes easier to route while reducing tension on the pump
- Prisma ARGB PWM fans deliver outstanding airflow with brilliant lighting effects (Prisma versions only)
- Specially designed fan blades and outer ring produce a uniform glow (Prisma versions only)
- High-performance Dynamic X2 PWM fans provide excellent airflow with minimal noise (Dynamic versions only)
- Optimized fan geometry balances airflow with extra emphasis on static pressure
- Strategic blade notches diffuse noise from blade/stator interaction (Dynamic versions only)
- Trip Wire technology reduces blade turbulence
- LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan
- Backed by a 5-year warranty for extended peace of mind
Celsius+ takes AIO water cooling to a new level with an ARGB-accented pump face, a fully redesigned block and an upgraded on-radiator PWM fan hub with ARGB support.
Get the balance right
Our intelligent auto mode dynamically adjusts the fan and pump speeds for optimized silent performance — and a simple twist of the pump face changes to PWM mode for full user control
Tidier through technology
ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation
Forget the thermal paste
With the Celsius+, the thermal paste is pre-applied to ensure a mess-free installation
coordinated cooling
Your options for controlling the color effects of Celsius+ are continually growing, with current certifications including Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome support
Mounting made easy
Supports the most common sockets for both Intel and AMD
Up our sleeves
Braided tube sleeves readily contain both the fan control cables and ARGB wires
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Pump’s mean time to failure (MTTF) | 50000 h |
| Fan speed (max) | 2000 RPM |
| Pump motor speed (min) | 800 RPM |
| Pump motor speed (max) | 2800 RPM |
| Fan static pressure | 2.78 mmH2O |
| Fan speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Pump noise level | 20 dB |
| Fan noise level (max) | 32.7 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 1.46 mmH2O |
| Maximum airflow | 85.71 cfm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket TR4 |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 3 fan(s) |
| Base plate material | Copper |
| Radiator material | Aluminium |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Fan voltage | 12 V |
| Fan current | 0.18 A |
| Pump current | 180 mA |
| Weight & dimensions | |
|---|---|
| Package height | 180 mm |
| Package depth | 470 mm |
| Package width | 145 mm |
| Waterblock height | 4.5 cm |
| Waterblock depth | 6.2 cm |
| Waterblock width | 6.2 cm |
| Tube length | 40 cm |
| Radiator height | 3 cm |
| Radiator depth | 12.3 cm |
| Radiator width | 40.3 cm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Screws included | Yes |
| Other features | |
|---|---|
| Country of origin | Sweden |
| Tube material | Rubber |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
