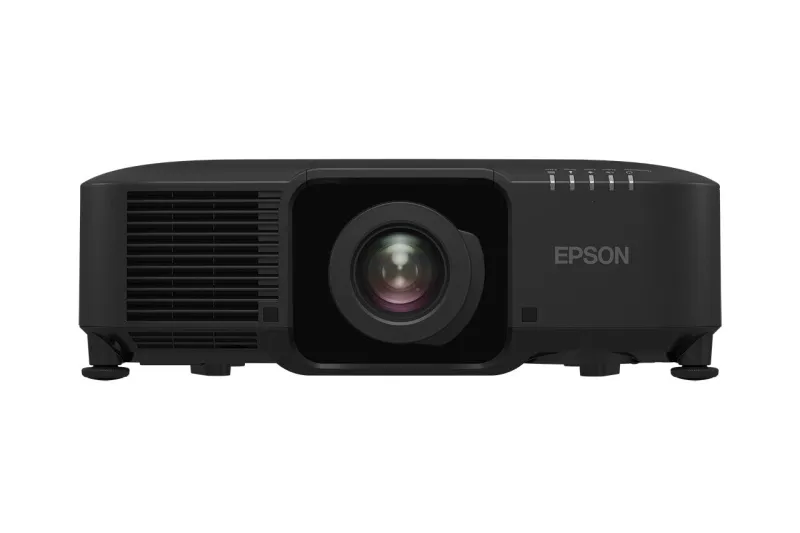

Epson EB-PU2010B Large venue projector 10000 ANSI lumens 3LCD WUXGA (1920×1200) Black
- Business Large venue projector Black
- 3LCD 10000 ANSI lumens
- Laser 20000 h
- WUXGA (1920×1200) 16:10 2000:1
- Number of colours: 1.07 billion colours
- Ethernet LAN
- AC 535 W
The EB-PU2010B is a compact and versatile high brightness projector with optional interchangeable lenses and advanced installation features.
This highly versatile 10,000 lumens installation projector is sold as ‘body only’ and pairs seamlessly with Epson’s existing lens family to deliver bright, true-to-life images in a wide variety of environments: from visitor attractions to lecture theatres, museums to meeting rooms. The high lumens EB-PU2010B offers WUXGA resolution with 4K enhancement, HDR and advanced installation features.
Superior image quality
The 10,000 lumens EB-PU2010B projects clear whites, vivid details, deep blacks, defined shadows and high contrast imagery.
Compact and lightweight
The compact size makes this projector more transportable and saves storage space, providing size and cost advantages to projector fleets. The unobtrusive design allows it to blend seamlessly into most environments. Also available in white.
Interchangeable lens support
The EB-PU2010B accommodates different lenses to suit a wide range of projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as ‘body only’, without a lens, which puts the power to build the right projection solution, for the right application, in the hands of the user.
Designed for installation agility

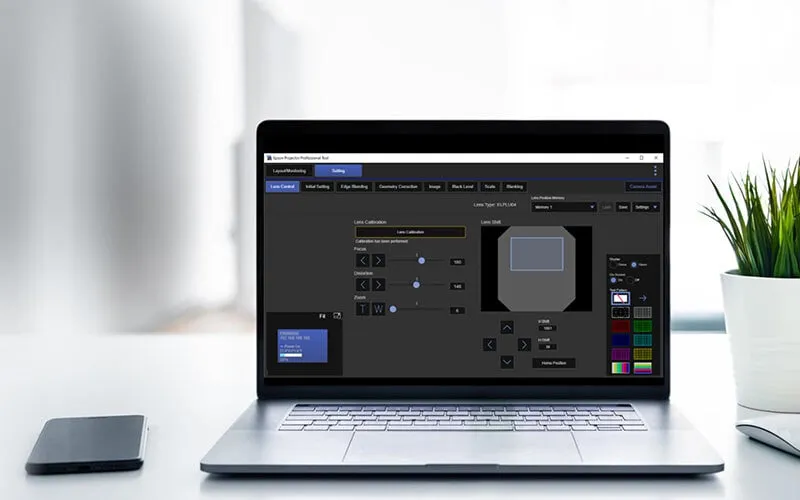

Produce large-scale, extremely bright displays, even as part of multi-projector installations where edge blending, stacking and lens flexibility is key. Epson Projector Professional Tool makes advanced installation techniques easy, such as projection mapping, while the optional external camera module (ELPEC01) uses built-in processing for PC-free geometry correction for stacking. The EB-PU2010B features NFC for multi-projector set up, making diagnostics and installations easier using the Epson Projector Config Tool. Also includes SDI input and output connectivity.
| Projector | |
|---|---|
| Heat dissipation | 1819 BTU/h |
| Keystone correction, horizontal | -30 – 30° |
| Keystone correction, vertical | -45 – 45° |
| Matrix size | 2.62 cm (1.03″) |
| Projector brightness (portrait mode) | 10000 ANSI lumens |
| Projector brightness (economic mode) | 7000 ANSI lumens |
| Number of colours | 1.07 billion colours |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 2000:1 |
| Projector native resolution | WUXGA (1920×1200) |
| Projection technology | 3LCD |
| Projector brightness | 10000 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source (economic mode) | 30000 h |
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Interchangeable lens | Yes |
| Throw ratio | 0.35 – 7.41:1 |
| Zoom type | Auto |
| Focal length range | varies by lens |
| Video | |
|---|---|
| Video processing | 10 bit |
| Video colour modes | Cinema, Dynamic, Natural, Presentation, DICOM simulation mode, Multi-projection, BT.709 |
| 3D | No |
| Full HD | Yes |
| Analog signal format system | Not supported |
| Ports & interfaces | |
|---|---|
| Serial interface type | RS-232C |
| Audio (L/R) in | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| DVI port | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Password protection | Yes |
| Country of origin | Philippines |
| Preset modes | Cinema, Presentation, Dynamic |
| Noise level (economic mode) | 30 dB |
| Noise level | 37 dB |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Placement | Ceiling, Desktop, Flying frame |
| Product colour | Black |
| Market positioning | Business |
| Product type | Large venue projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (economy mode) | 452 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 535 W |
| Power source | AC |
| Software | |
|---|---|
| Software support | via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 21.9 kg |
| Package height | 270 mm |
| Package depth | 765 mm |
| Package width | 570 mm |
| Height | 189 mm |
| Depth | 436 mm |
| Width | 545 mm |
| Weight | 16.8 kg |
| Packaging content | |
|---|---|
| Bundled software | Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management, Epson Projektor Professional Tool |
| Warranty card | Yes |
| Cables included | AC |
| Manual | Yes |
| WLAN adapter included | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Logistics data | |
|---|---|
| Products per pallet | 14 pc(s) |
| Products per pallet (UK) | 14 pc(s) |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 85286200 |
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
