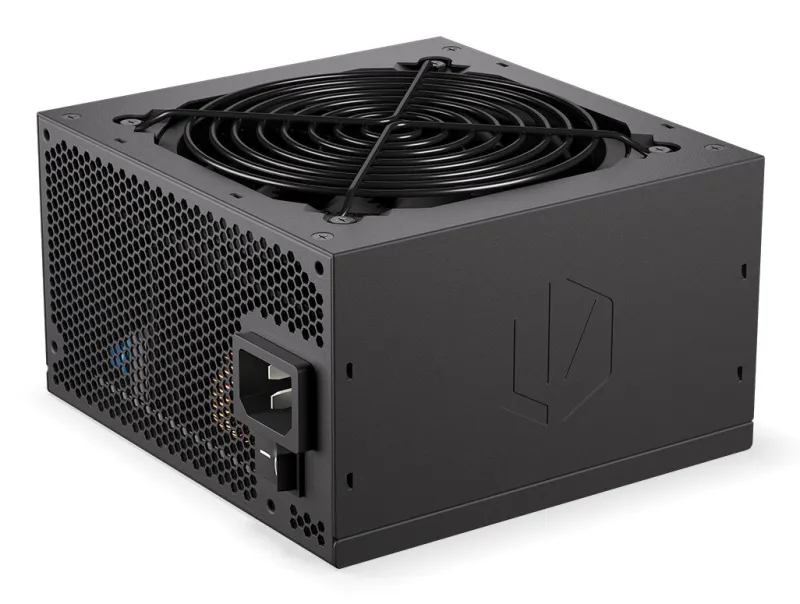

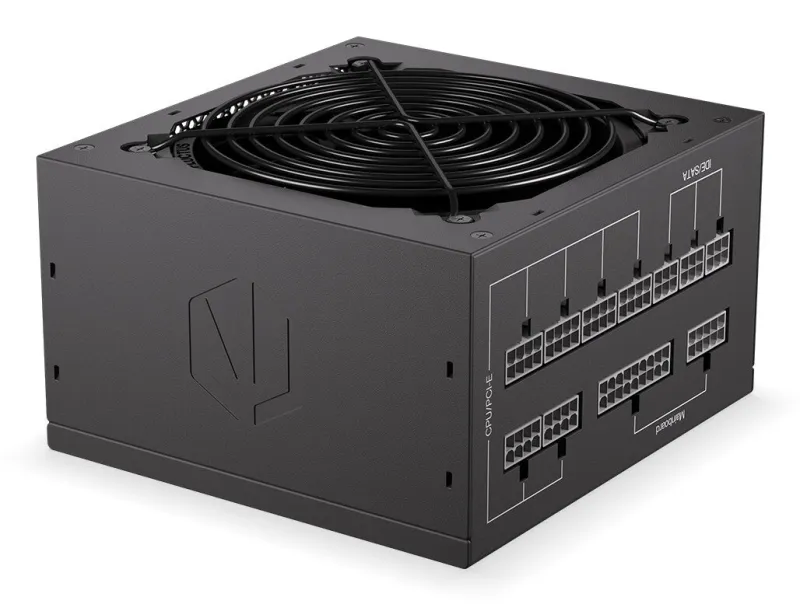

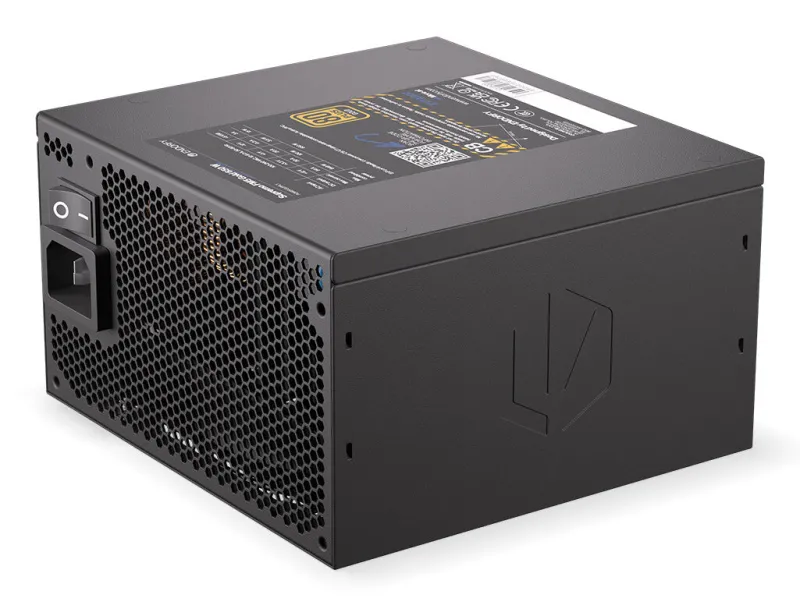

ENDORFY Supremo FM5 Gold 650 W power supply unit 18+10 pin ATX ATX Black
- 650 W 115 – 230 V 50/60 Hz
- Motherboard power connector: 18+10 pin ATX
- PC ATX 80 PLUS Gold
- Active 12 cm
- Black
The Supremo FM5 Gold 650W is an efficient power supply with a 120 mm Fluctus fan that ensures your PC runs stably without unexpected resets interruptions. This bad boy is equipped with Japanese electrolytic and aluminum-polymer capacitors so you can squeeze the last juices out of it without a hitch. No wonder it is 80 PLUS® Gold certified 😉
Supremo FM5 Gold 650W
When you’ve spent half your life by the computer, you know that stable component operation = trouble-free boss battles (including those in the office). And that’s why we created the Supremo FM5 Gold 650W.
It’s an efficient and relatively small (14 cm long) power supply with DC-DC topology dedicated to special tasks demanding components. We’re serious – we’ve packed in everything we think you need to fine-tune the voltage and deliver continuous 650W of power without unexpected resets or a blue screen. We also fit a 12 cm 120 mm Fluctus fan, which will stay cool (literally!) and take care of the right temperature inside the PSU. No wonder our Supremo got the 80 PLUS® Gold certification 🙂
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 100 W |
| Combined power (+12V) | 648 W |
| Combined power (+3.3V) | 100 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 115 – 230 V |
| Total power | 650 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| PCI Express power connectors (8-pin) | 6 |
| Number of SATA power connectors | 3 |
| Motherboard power connector | 18+10 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Supported motherboard form factors | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Packaging content | |
|---|---|
| Cables included | AC |
| Weight & dimensions | |
|---|---|
| Height | 87 mm |
| Depth | 150 mm |
| Width | 140 mm |
| Packaging data | |
|---|---|
| Package type | Box |
