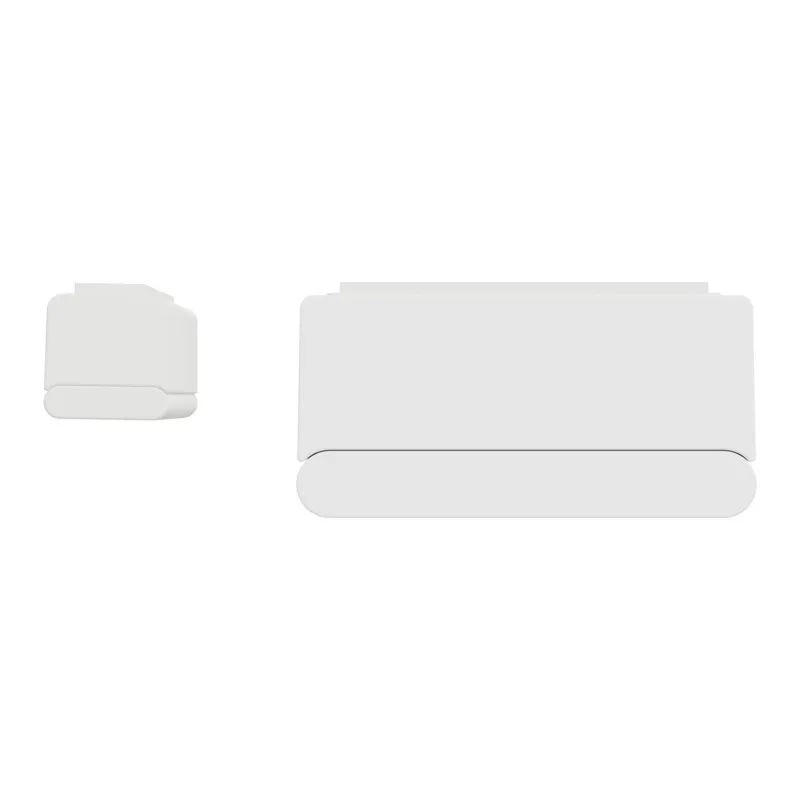

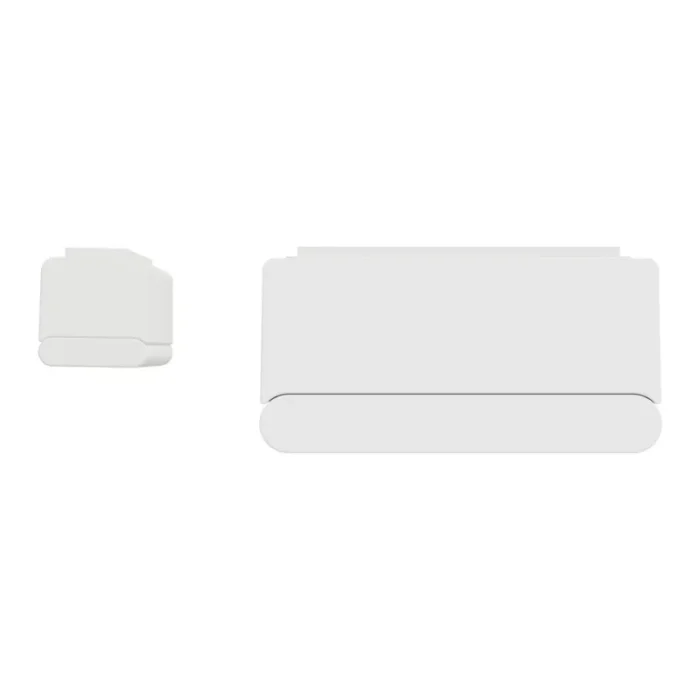

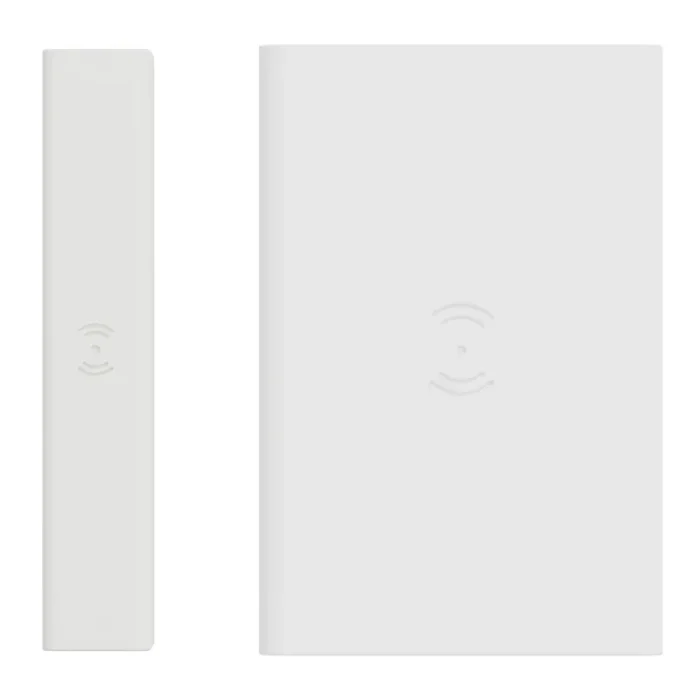

Drayton CCT591012 door/window sensor Wireless Door/Window White

• “Smart door and window contact”
• “Safe energy in combination with temperature control devices”
• “Notifications on your smartphone with Wiser Smart Home System”

The Schneider Electric Wiser window/door sensor recognizes if a window/door is opened or closed and it directly reports a change to the Wiser Hub. It can trigger automated actions such as switch off the heating system when the window is open to reduce energy consumption. You can select to get alerts on your smart phone when a window/door is opened for increased safety in your home. The sensor includes two parts. The primary part contains a detection circuit that detects the secondary part, which consists of a magnet. Very easy installation, no screws are needed, the sensor is glued on the window or door frame. The window/door sensor is battery operated and require no cabling. Battery lifetime is 5 years at normal usage. When the battery is low (less than 10 %), the status LED blinks orange once a minute, and a message is sent to the Wiser Hub to enable notification via the Wiser Home App. Connect it to the Wiser Hub with the eSetup App for electricians, or with the Wiser Home App. The primary part dimensions are 50.3 x 33 x 16.3mm. The secondary part dimensions are 50 x 9 x 9mm. Operating temperature: -10°C to 50°C. The Wiser Home App is available for Android 5.1, Apple iOS 10.3 or higher. Communication protocoll is Zigbee 3.0. Wherever you are, the Wiser Home App allows you to control all the connected devices in the house from your smartphone. Wiser Home is also compatible with the latest technologies such as Amazon’s Alexa or Google Assistant and with Merten System M and System D connected devices.

• leaflet
• manual pdf
