Disposable Concertina Spray Booth Filter (9m)
Disposable Concertina Spray Booth Filter (9m)

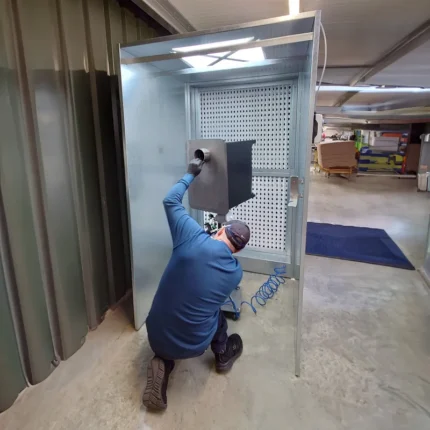

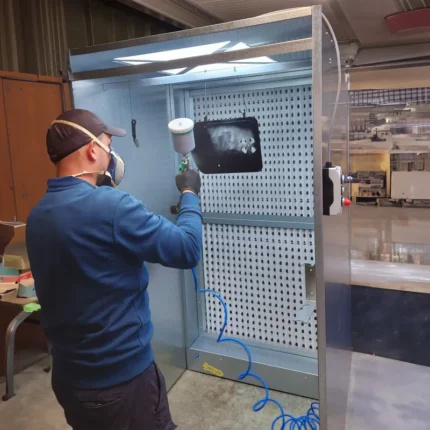

The Disposable Concertina Spray Booth Filter (9m) is a highly efficient replacement filter designed for use with the ID898 Nukeson Wet Spray Booth. This advanced filtration solution ensures optimal air quality within your spray booth, allowing you to focus on achieving perfect paint finishes without concerns about airflow or particle contamination.

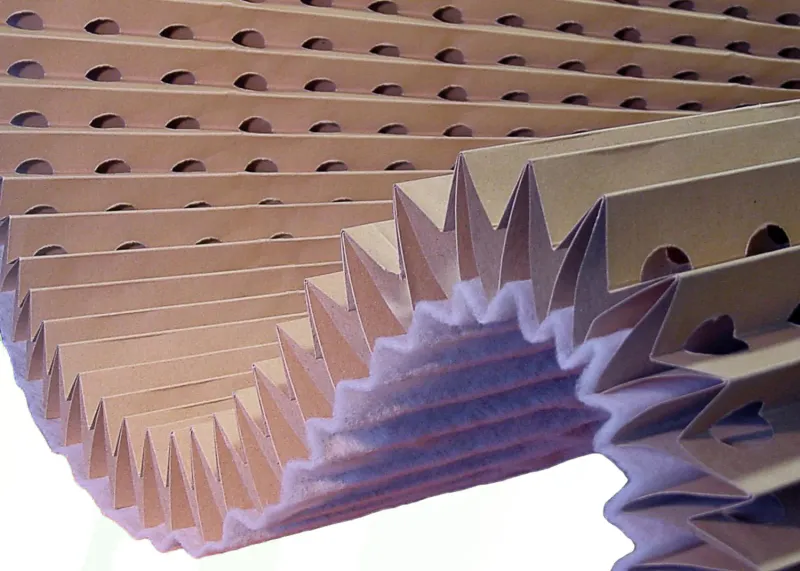

The filter’s dual-layer design offers superior performance. The primary concertina cardboard layer maximises airflow, even when the filter becomes loaded with paint particles, thanks to its accordion design. The secondary filtration layer, adhered with water-based glue, captures any particles that bypass the primary filter, ensuring they do not reach the booth fan.
Crafted from high-quality recycled materials, this eco-friendly Spray Booth filter delivers exceptional durability and efficiency. The high-quality fibre ensures smooth, constant airflow, reducing the need for frequent replacements and providing better cost-effectiveness compared to fibreglass alternatives. Its inertial separation technology filters particles while maintaining optimal airflow, making it ideal for both vertical and horizontal booth frameworks.
With an impressive paint-holding capacity of 15kg/m² and a filtration efficiency of 99.3%, this Spray Booth Filter is designed to perform under demanding conditions while minimising pressure drops for consistent airflow.
Key Features:
- High-Efficiency Filtration – 99.3% efficiency with dual-layer design for superior particle capture.
- Durable and Eco-Friendly – Made from recycled paper and water-based glue for sustainability.
- Maximised Airflow – Accordion design maintains airflow even when loaded.
- Extended Lifespan – High-quality fibres reduce the need for frequent replacements.
- Versatile Use – Suitable for vertical and horizontal booth frameworks.
- Recommended Installation – 26 folds per metre in the Spray Booth Filter for best performance.
Product Specifications:
- Depth: 57mm
- Recommended Airspeed: 0.5—1 m/s
- Pressure Drop: 13 PA at 0.5 m/s
- Paint Holding Capacity: 15kg/m²
- Filtration Efficiency: 99.3%
- Maximum Loss of Airspeed: 9.0mm for 0.75 m/s (88.3 PA)
- Dimensions of the Spray Booth Filter: Height: 90cm, Length: 9m
Please Note:
- The recommended maximum airflow is 1 metre per second (m/s). Ensure proper installation by maintaining a minimum of 26 folds per metre for optimal results.
