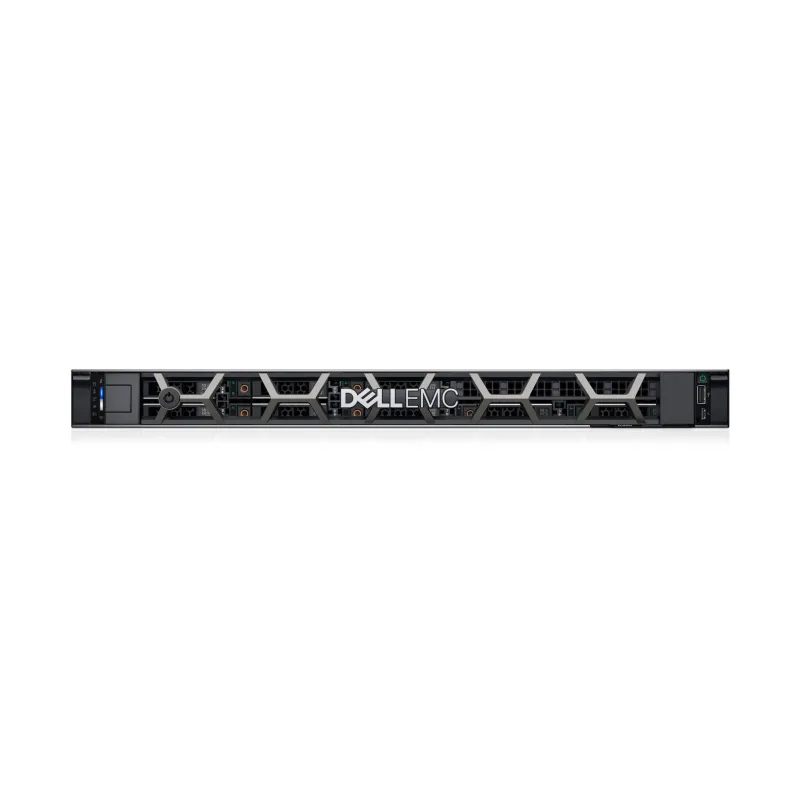

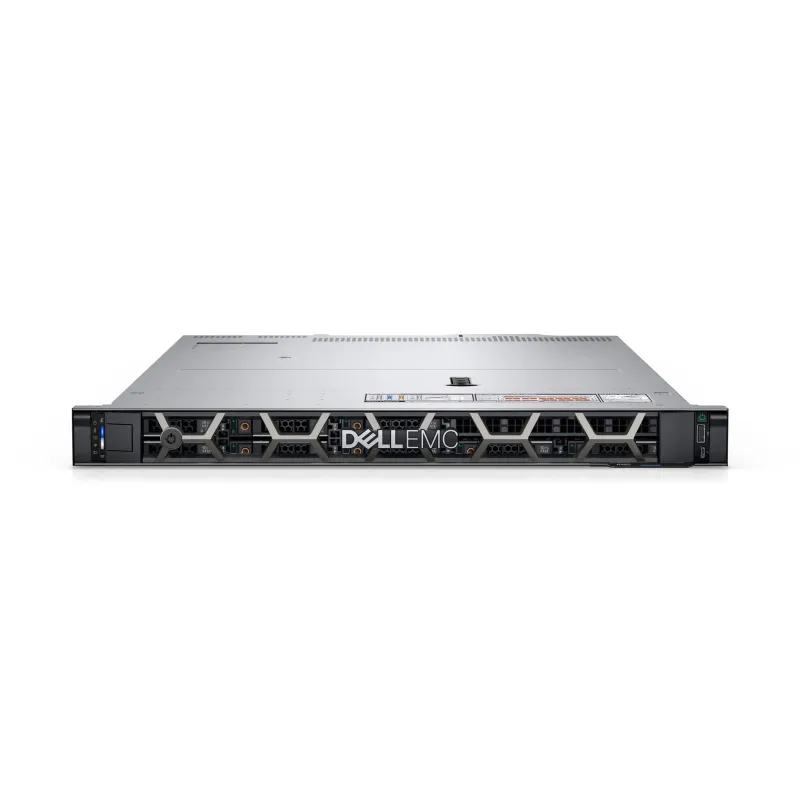

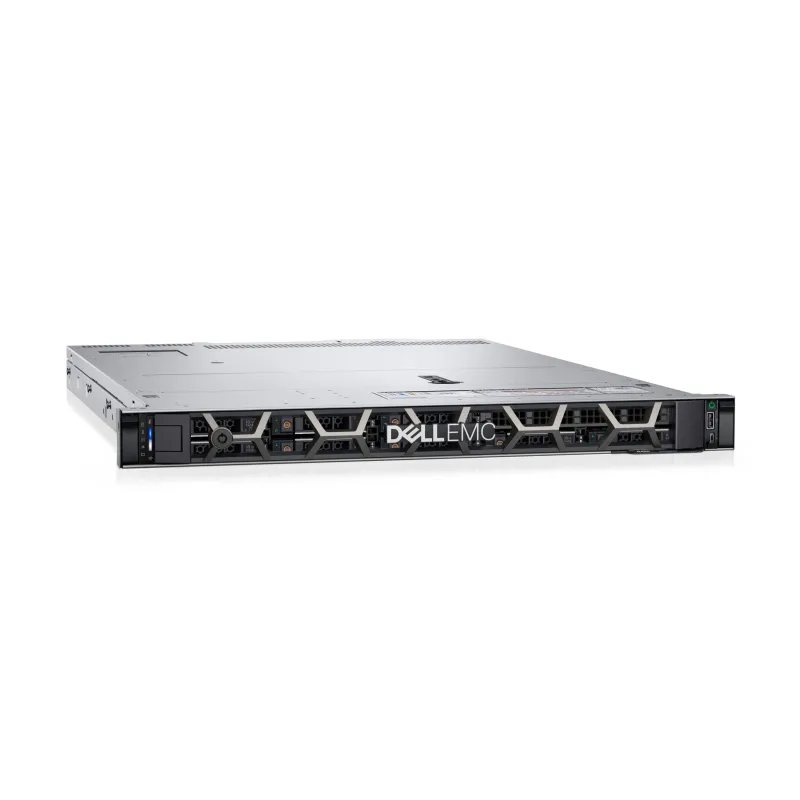

DELL PowerEdge R450 server 480 GB Rack (1U) Intel Xeon Silver 4309Y 2.8 GHz 16 GB DDR4-SDRAM 1100 W
- No OS
- Intel Xeon Silver 4309Y (12MB Cache, 2.8GHz)
- 16GB DDR4-SDRAM (1 x 16) & 480GB SSD
- iDRAC9, Enterprise 15G
1U value-optimized server for general-purpose IT
The Dell EMC PowerEdge R450, with 3rd generation Intel® Xeon® Scalable processors, offers improved performance and exceptional value in a 1U rack server.
| Processor |
| Processor threads |
16 |
| Thermal Design Power (TDP) |
105 W |
| Number of processors installed |
1 |
| Processor cache |
12 MB |
| Processor cores |
8 |
| Performance-core base frequency |
2.8 GHz |
| Efficient-core base frequency |
0.0028 GHz |
| Processor boost frequency |
3.6 GHz |
| Processor frequency |
2.8 GHz |
| Processor model |
4309Y |
| Processor generation |
3rd Generation Intel® Xeon® Scalable |
| Processor family |
Intel Xeon Silver |
| Processor manufacturer |
Intel |
| Memory |
| Memory data transfer rate |
3200 MT/s |
| Memory slots |
16x DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Memory ranking |
2 |
| Buffered memory type |
Registered (buffered) |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Drive writes per day (DWPD) |
1 |
| Optical drive type |
No |
| Hot-Plug support |
Yes |
| Supported RAID controllers |
PERC H755 |
| RAID support |
Yes |
| Number of SSDs supported |
8 |
| SSD size |
2.5″ |
| Supported SSD sizes |
2.5″ |
| SSD interface |
SATA III |
| SSD capacity |
480 GB |
| Number of SSDs installed |
1 |
| Total storage capacity |
480 GB |
| Network |
| Ethernet LAN |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet interface type |
Gigabit Ethernet |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Expansion slots |
| PCI Express x16 slots |
2 |
| Design |
| Bezel |
Yes |
| Product colour |
Black |
| Chassis type |
Rack (1U) |
| Performance |
| Remote administration |
iDRAC9, Enterprise 15G |
| Software |
| Compatible operating systems |
Canonical Ubuntu Server LTSCitrix HypervisorMicrosoft Windows Server with Hyper-VRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXi |
| Operating system installed |
No |
| Power |
| Power cable current |
12 A |
| Power cable connector 2 |
C14 coupler |
| Power cable connector 1 |
C13 coupler |
| Power cable length |
2 m |
| Power supply input voltage |
100 – 240 V |
| Number of redundant power supplies installed |
2 |
| Number of redundant power supplies supported |
2 |
| Power supply |
1100 W |
| Redundant power supply (RPS) support |
Yes |
| Operational conditions |
| Non-operating altitude |
0 – 12000 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
8 – 80% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
10 – 35 °C |
| General |
| Product family |
PowerEdge |
| Carbon footprint |
| Total carbon footprint (kg of CO2e) |
8260 |
| Total carbon emissions, standard deviation (kg of CO2e) |
4440 |
| Carbon emissions, manufacturing (kg of CO2e) |
1001 |
| Carbon emissions, logistics (kg of CO2e) |
138 |
| Carbon emissions, energy usage (kg of CO2e) |
7100 |
| Carbon emissions, end-of-life (kg of CO2e) |
22 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
1160 |
| PAIA version |
1.3.2, 2022 |
| Weight & dimensions |
| Height |
42.8 mm |
| Width |
482 mm |
| Other features |
| Data transfer rate |
6 Gbit/s |
| Bytes per sector |
512 |
