DELL 403-BBLZ interface cards/adapter Internal Fiber
- Internal
- Host interface: PCIe
- Output interface: Fiber
- Purpose: Server
- 14.025 Gbit/s
- Green
– Support for Dell iDRAC8 with LifeCycle Controller and Emulex OneCommand manager to improve IT staff productivity through simplified deployment and management;
– T10 PI high-performance offload for advanced, end-to-end data integrity (requires support from SAN target solution).

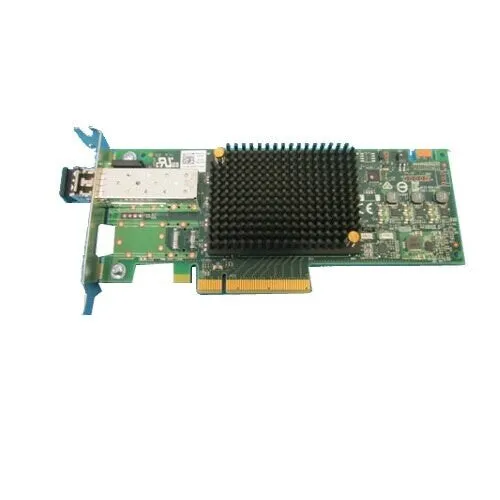

Emulex LPe31000-M6-D Low Profile Single Port 16Gb Fibre Channel HBA with 16Gb FC connectivity (short wave optical – LC SFP+ included) from Dell™ are designed to address the demanding performance, reliability and management requirements of modern networked storage systems that utilize high performance and low latency solid state storage drives and HDD arrays. Compared to the previous generation, they provide up to 2x greater bandwidth, less than half the latency, and new features such as Forward Error Correction and enhanced diagnostics and I/O monitoring capabilities.
| Ports & interfaces |
| Expansion card standard |
PCIe 3.0 |
| Expansion card form factor |
Low-profile |
| Output interface |
Fiber |
| Host interface |
PCIe |
| Design |
| Certification |
CSA, UL, FCC, RoHS, TUV Bauart, BSMI Class A, ICES Class A, VCCI Class A, MSIP Class A, RCM |
| Purpose |
Server |
| Product colour |
Green |
| Internal |
Yes |
| Features |
| Data transfer rate (max) |
14.025 Gbit/s |
| Operational conditions |
| Operating relative humidity (H-H) |
5 – 95% |
| Operating temperature (T-T) |
0 – 55 °C |
| System requirements |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Technical details |
| Compliance certificates |
RoHS |
| Packaging data |
| Quantity |
1 |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Other features |
| Compatibility |
PowerEdge C4130PowerEdge FC630PowerEdge FC830PowerEdge R530PowerEdge R630PowerEdge R730PowerEdge R730XD |
| Compatible operating systems |
SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux |
| Connectivity technology |
Wired |
| Data link protocols |
16Gb Fibre Channel |
| Ports quantity |
1 |
| Data transfer rate |
14.025 Gbit/s |
