D-Link GIGABIT ETHERNET KONVERTER
- Wired
- 2000 Mbit/s 20000 m 1310 nm
- 1000BASE‑LX, 1000BASE‑SX
- Ethernet LAN (RJ-45) ports: 1 DC-in jack
- SC
- Black
This Media Converter can be used by itself or installed in a chassis and converts between 1000BASE-T Gigabit twisted-pair signals to 1000BASE-LX Gigabit single-mode fibre signals.

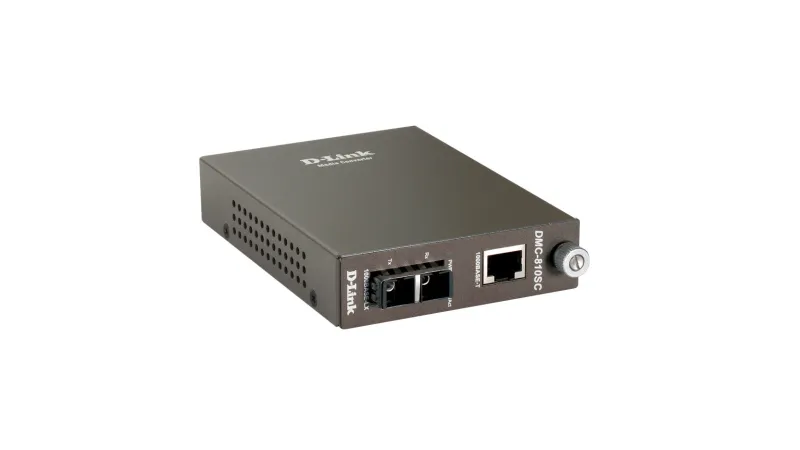

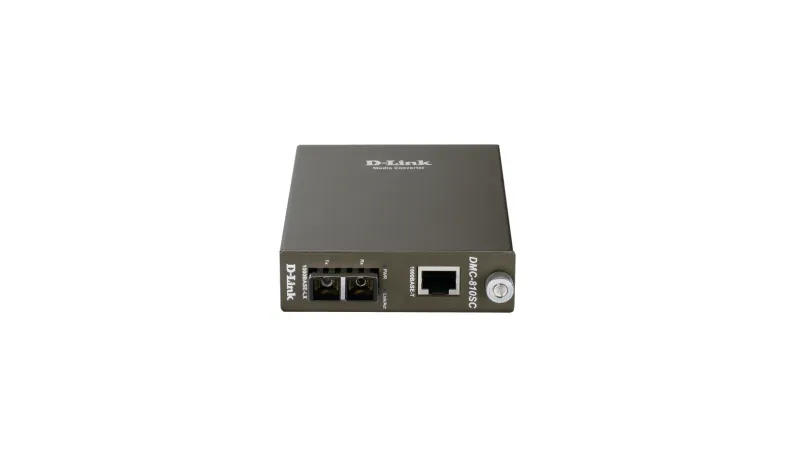

The DMC-810SC converts 1000BASE-T Gigabit twisted-pair signals to 1000BASE-LX Gigabit single-mode fibre signals. Maximum fibre cable distance is 10 km. 1 RJ-45 port and 1 fibre port (SC type connector) are provided.
The DMC-700SC can be used as stand-alone device or as a module installed in the DMC-1000 chassis. The media converter is housed in a solid metal case and comes with status LEDs and an external AC power adapter. If you install it in the DMC-1000 chassis, remove its metal case and slide its PC board into an open slot in chassis. In this application, the chassis provides power for all media converters inside it, and the media converter’s own external AC power adapter will not be necessary.
| Network | |
|---|---|
| Cabling technology | RJ-45 |
| Duplex system | Full |
| Store-and-forward | Yes |
| Auto MDI/MDI-X | Yes |
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3ab, IEEE 802.3z |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Converter input interface | 1000Base-T |
| Maximum data transfer rate | 2000 Mbit/s |
| Performance | |
|---|---|
| Wavelength | 1310 nm |
| Maximum transfer distance | 20000 m |
| Features | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
|---|---|

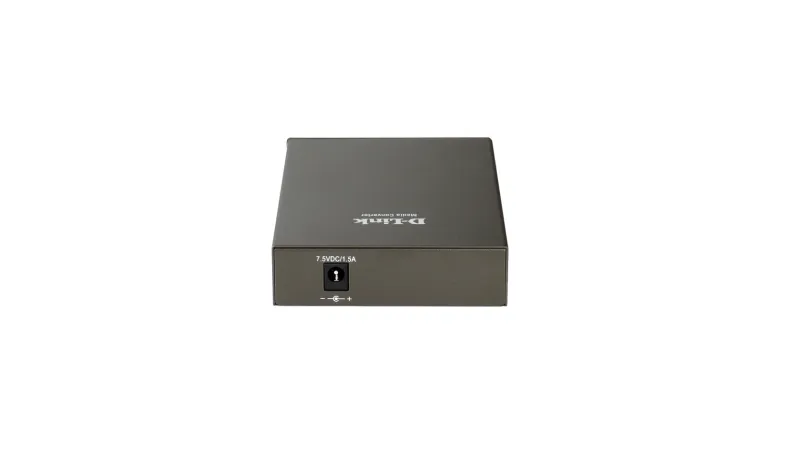

| DC-in jack | Yes |
| Fiber optic connector | SC |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Input current | 1 A |
| Input voltage | 5 V |
| Weight & dimensions | |
|---|---|
| Weight | 302 g |
| Height | 25 mm |
| Depth | 88 mm |
| Width | 120 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Packaging data | |
|---|---|
| Package weight | 772.4 g |
| Package height | 68 mm |
| Package depth | 274 mm |
| Package width | 208 mm |
| Certificates | |
|---|---|
| Certification | FCC Class ACE Class AVCCI Class A |
| Logistics data | |
|---|---|
| Shipping (inner) case length | 37 cm |
| Shipping (inner) case width | 29.1 cm |
| Shipping (inner) case height | 45.2 cm |
| Shipping (inner) case net weight | 6.98 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 297.5 kg |
| Master (outer) cases per pallet (air) | 33 pc(s) |
| Products per pallet (air) | 330 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 149.1 cm |
| Pallet gross weight (sea) | 390.7 kg |
| Master (outer) cases per pallet (sea) | 44 pc(s) |
| Products per pallet (sea) | 440 pc(s) |
| Pallet height (sea) | 194.3 cm |
| Shipping (inner) case gross weight | 8.43 kg |
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| I/O ports | 1000BASE-T, 1000BASE-SX/LX, MDI-II/MDI-X |
