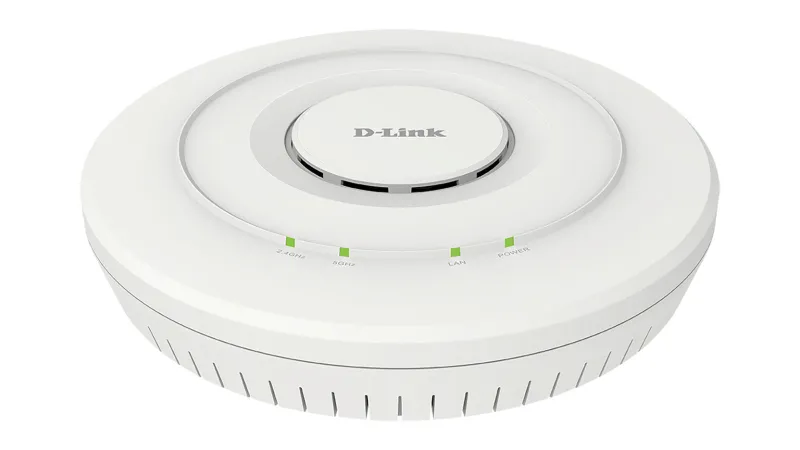

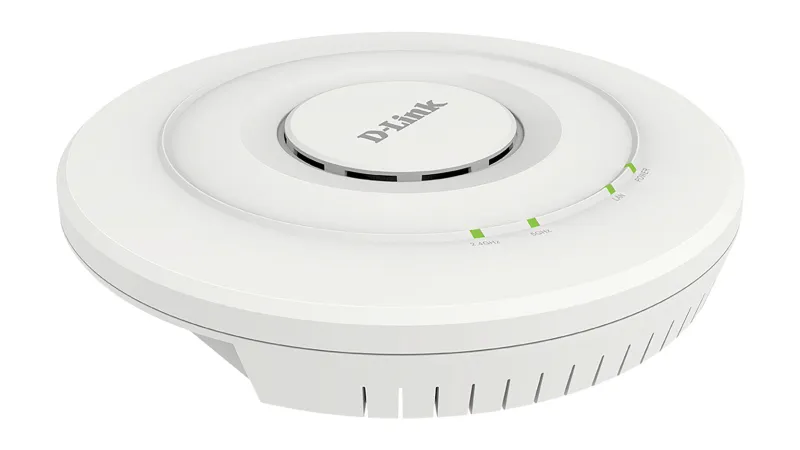

D-Link DWL-6610AP wireless access point 1200 Mbit/s Power over Ethernet (PoE)
- 2.4 GHz
- 5 GHz
- Maximum data transfer rate: 1200 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
- AES, HTTPS, SSH, TKIP, WPA, WPA2
- Power over Ethernet (PoE)
Next Generation Connectivity
Harness the power of Wireless AC and take advantage of combined wireless speeds of up to 1200 Mbps,
perfect for high demand business applications
Enhanced Level of Performance
Experience faster and stable performance as well greater coverage with beamforming, and better
managed traffic with band steering
Unparalleled Flexibility and Scalability
Used as a standalone wireless access point, self-configuring cluster or managed centrally via a D-Link
Wireless Controller or Unified Switch
| Features |
| Quality of Service (QoS) support |
Yes |
| VLAN support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate |
1200 Mbit/s |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
| MAC address filtering |
Yes |
| Security algorithms |
AES, HTTPS, SSH, TKIP, WPA, WPA2 |
| Protocols |
| Management protocols |
SNMP |
| Management features |
| Web-based management |
Yes |

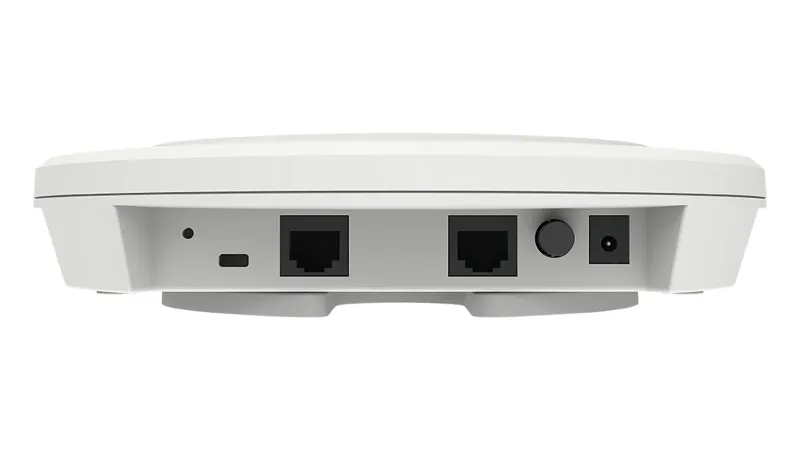

| Ports & interfaces |
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power consumption (max) |
16.6 W |
| Output current |
2 A |
| Output voltage |
12 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
| Reset button |
Yes |
| On/off switch |
Yes |
| Housing material |
Plastic |
| Antenna |
| Antenna gain level (max) |
6.5 dBi |
| Technical details |
| Shipping (inner) case length |
56.5 cm |
| Shipping (inner) case width |
34.3 cm |
| Shipping (inner) case height |
27.5 cm |
| Shipping (inner) case net weight |
6.39 kg |
| Products per shipping (inner) case |
6 pc(s) |
| Pallet gross weight (air) |
200.6 kg |
| Master (outer) cases per pallet (air) |
24 pc(s) |
| Products per pallet (air) |
144 pc(s) |
| Pallet gross length |
110 cm |
| Pallet gross width |
120 cm |
| Pallet height (air) |
123.5 cm |
| Pallet gross weight (sea) |
332.5 kg |
| Master (outer) cases per pallet (sea) |
42 pc(s) |
| Products per pallet (sea) |
252 pc(s) |
| Pallet height (sea) |
2.06 m |
| Shipping (inner) case gross weight |
7.3 kg |
| Certificates |
| Certification |
CEEN 301 893 V1.7.1 (2012-06) (DFS/TPC)EN 300 328 V1.8.1 (2012-06)FCCICcULLVDUL2043C-TickBSMINCC |
| Weight & dimensions |
| Weight |
500 g |
| Height |
69.4 mm |
| Depth |
158.8 mm |
| Width |
158.8 mm |
| Packaging data |
| Package weight |
1.06 kg |
| Package height |
90 mm |
| Package depth |
235 mm |
| Package width |
243 mm |
| Operational conditions |
| Storage temperature (T-T) |
-20 – 65 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
