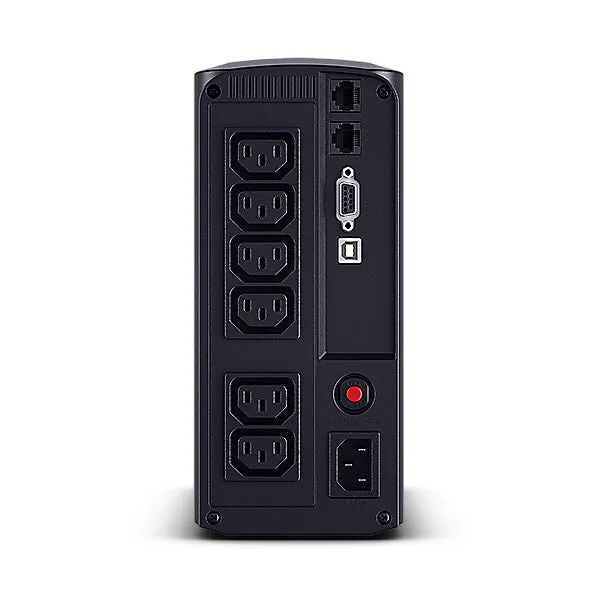

CyberPower VP1000EILCD uninterruptible power supply (UPS) Line-Interactive 1 kVA 550 W 6 AC outlet(s)
- Line-interactive UPS Topology
- Energy Saving Technology
- Generator Compatible
- Simulated Sine Wave Output
- Automatic Voltage Regulation (AVR)
- LCD Status Display
- High-speed Ethernet Data Transmission
- USB Connectivity Port
- Surge and Spike Protection
- Serial Connectivity Port
CyberPower VP1000EILCD offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage for connected equipment. The UPS provides multifunctional LCD readout to display clear power and battery conditions. The product features data line protection with high-speed transmission to safeguard phones, network and communication equipment against surge/spike as well as supply 1Gbps speed to transmit data. The UPS is also compatible with PowerPanel® Power Management Software to achieve real-time monitoring and configuration.
| Features | |
|---|---|
| Audible alarm modes | Fault, Low battery alarm, Overload alarm |
| Audible alarm(s) | Yes |
| Power protection features | Overload |
| Surge protection features | Network, Telephone |
| Surge protection | Yes |
| EMI/RFI noise filtering | Yes |
| Response time | 4 ms |
| Surge energy rating | 450 J |
| Maximum current | 4.35 A |
| Automatic Voltage Regulation (AVR) | Yes |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 230 V |
| Output operation voltage (min) | 230 V |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 295 V |
| Input operation voltage (min) | 167 V |
| Waveform | Sine |
| Output power | 550 W |
| Output power capacity | 1 kVA |
| UPS topology | Line-Interactive |
| Ports & interfaces | |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN (RJ-45) ports | 1 |
| Modem (RJ-11) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| AC outlets quantity | 6 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Battery | |
|---|---|
| Battery recharge time | 8 h |
| Typical backup time at half load | 9 min |
| Typical backup time at full load | 1 min |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| LED indicators | Yes |
| Display type | LCD |
| Housing material | Plastic |
| Product colour | Black |
| Form factor | Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 – 3000 m |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 90% |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -20 – 50 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Packaging content | |
|---|---|
| Cables included | USB cable |
| Certificates | |
|---|---|
| Certification | CE, EAC |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 6.23 kg |
| Height | 227 mm |
| Depth | 260 mm |
| Width | 100 mm |
| Packaging data | |
|---|---|
| Package weight | 6.8 kg |
| Package height | 335 mm |
| Package depth | 143 mm |
| Package width | 300 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 8504408590 |
