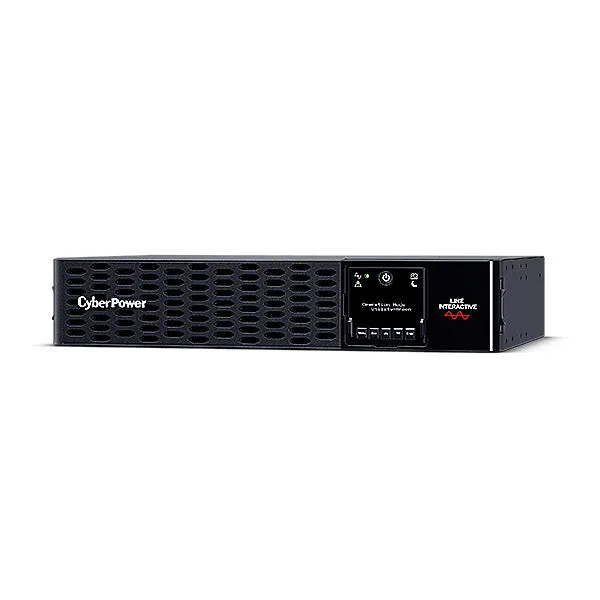

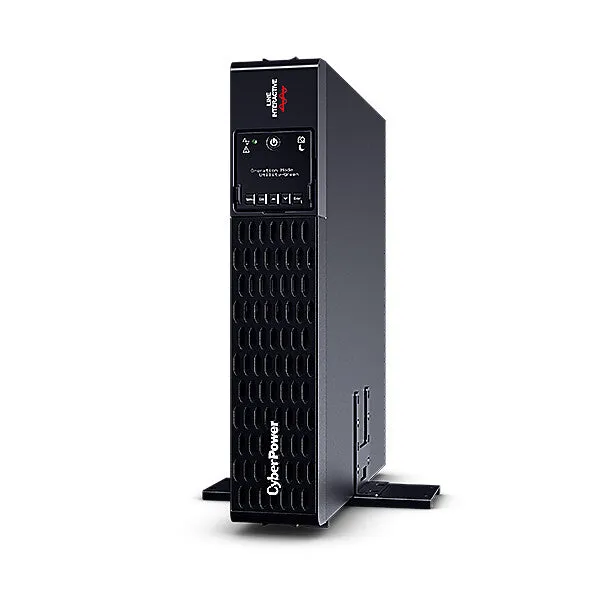

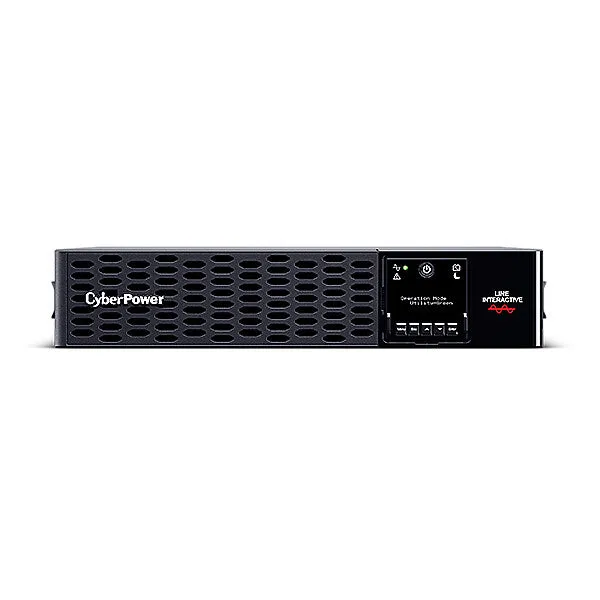

CyberPower PR1500ERT2U uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1500 W 10 AC outlet(s)
- Line-Interactive
- 1.5 kVA 1500 W
- Waveform: Pure sine
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
PR1500ERT2U
CyberPower PR1500ERT2U Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment. The rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment. Multiple UPS systems can be connected to a single main Emergency Power Off (EPO) switch. In the event of an emergency, the UPS systems can be shut down immediately with the EPO button. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
Critical/Noncritical Load Outlets
By dividing the outlets according to the importance of the connected loads, users are offered the flexibility to wisely manage the limited battery power during the event of power outage. In the state of a power failure, the UPS battery power can be preserve by terminating the power provided to the non-critical outlets, sparing the power to allow more runtime for critical loads to perform graceful shutdown.
Heavy-duty Rackmount Rails Included
The adjustable rackmount rails are engineered to facilitate the rack mounting of UPS or battery modules and support heavy UPS systems. Installation is quick and easy and required mounting hardware is included.
Sturdy Rackmount Ears Included
The rackmount ears are included for flexible rack mounting of UPS or battery modules. For some rack/tower convertible models, the ears also serve as supporting stands to provide stability and keep the unit upright. Installation is quick and easy and required mounting hardware is included.
| Features | |
|---|---|
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Management protocols | SNMP/HTTP |
| Audible alarm(s) | Yes |
| Power protection features | Overload |
| Surge protection features | Network |
| Surge protection | Yes |
| Noise level | 52.5 dB |
| EMI/RFI noise filtering | Yes |
| Emergency Power Off (EPO) | Yes |
| Power Factor Correction (PFC) type | Active |
| Output power factor | 1 |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Heat dissipation | 75.1 BTU/h |
| Response time | 4 ms |
| Surge energy rating | 2430 J |
| Maximum current | 10 A |
| Automatic Voltage Regulation (AVR) | Yes |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 288 V |
| Input operation voltage (min) | 159 V |
| Waveform | Pure sine |
| Output power | 1500 W |
| Output power capacity | 1.5 kVA |
| UPS topology | Line-Interactive |
| Ports & interfaces | |
|---|---|
| Emergency Power Off (EPO) connector | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232 ports | 1 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Serial interface | Yes |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| AC outlets quantity | 10 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Battery | |
|---|---|
| Hot-swap battery | Yes |
| Battery recharge time | 3 h |
| Typical backup time at half load | 18.6 min |
| Typical backup time at full load | 6 min |
| Number of batteries supported | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| LED indicators | Fault, Power, Status |
| Display type | LCD |
| Control type | Buttons |
| Built-in fan | Yes |
| Cooling type | Active |
| Cable length | 3.05 m |
| Rack capacity | 2U |
| Housing material | Metal |
| Product colour | Black |
| Form factor | Rackmount/Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 – 15000 m |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage temperature (T-T) | -15 – 45 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Packaging content | |
|---|---|
| Manual | Yes |
| Cables included | Serial, USB cable |
| Rack mount kit | Yes |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 29.4 kg |
| Height | 86.5 mm |
| Depth | 412 mm |
| Width | 433 mm |
| Packaging data | |
|---|---|
| Package weight | 31.2 kg |
| Package height | 275 mm |
| Package depth | 530 mm |
| Package width | 560 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
| Warranty period | 3 year(s) |
| Harmonized System (HS) code | 8504408590 |
| Other features | |
|---|---|
| Battery type | RBP0129 |
