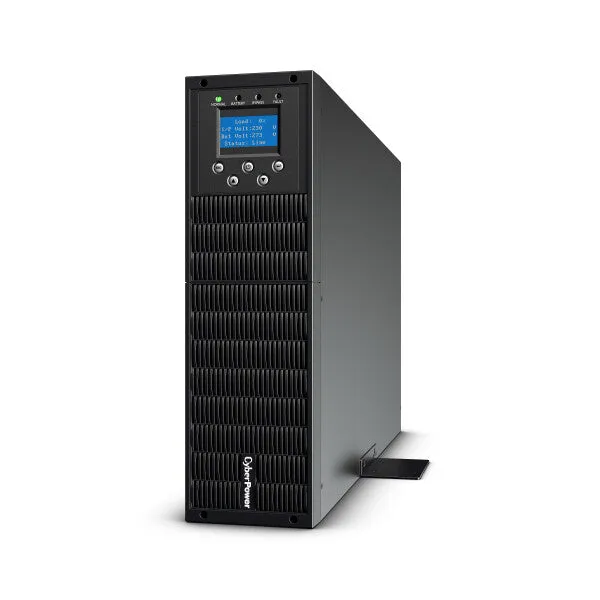

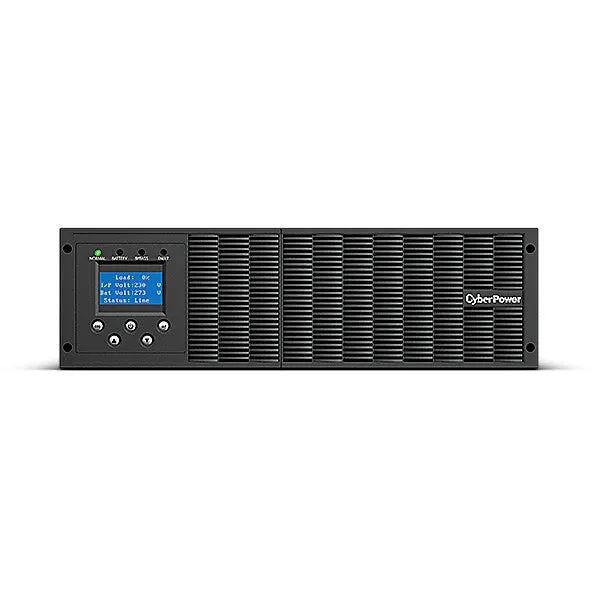

CyberPower OLS6000ERTXL3U uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 5400 W 1 AC outlet(s)
- Online (Double Conversion) UPS Topology
- ECO Mode
- UPS Parallel Expansion
- Generator Compatible
- Overload Protection
- Zero Transfer Time
- Smart Battery Management (SBM)
- Extended Battery Module (EBM)
- Surge and Spike Protection
- EMI and RFI Filtration
- LCD Status Display
- Emergency Power Off (EPO) Port
- PowerPanel® Management Software
- SNMP/HTTP Remote Management Capability (Optional)
- Rack/Tower Convertible Configurations
CyberPower OLS6000ERTXL3U is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.
Selected product is equipped with a Maintenance Bypass Switch. By flipping the switch, the power supply is safely transferred to utility. This allows service personnel to carry out fast on-site maintenance without having to shut down any connected equipment.
| Features | |
|---|---|
| ECO mode | Yes |
| Crest factor | 3:1 |
| Input power factor | 0.99 |
| Power factor | 0.9 |
| Efficiency (ECO mode) | 96% |
| Number of output phases | 1 |
| Surge energy rating | 445 J |
| Output voltage regulation | 0.1% |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 208 V |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 276 V |
| Input operation voltage (min) | 110 V |
| Waveform | Pure sine |
| Output power | 5400 W |
| Output power capacity | 6 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| Serial interface type | RS-232 |
| Serial interface | Yes |
| USB port | Yes |
| AC outlets quantity | 1 AC outlet(s) |
| Design | |
|---|---|
| LED indicators | Yes |
| Display type | LCD |
| Housing material | Metal |
| Product colour | Black |
| Form factor | Rackmount/Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 – 15000 m |
| Operating altitude | 0 – 2000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -15 – 45 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Certificates | |
|---|---|
| Certification | CE |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 17.5 kg |
| Height | 130.5 mm |
| Depth | 680 mm |
| Width | 438 mm |
