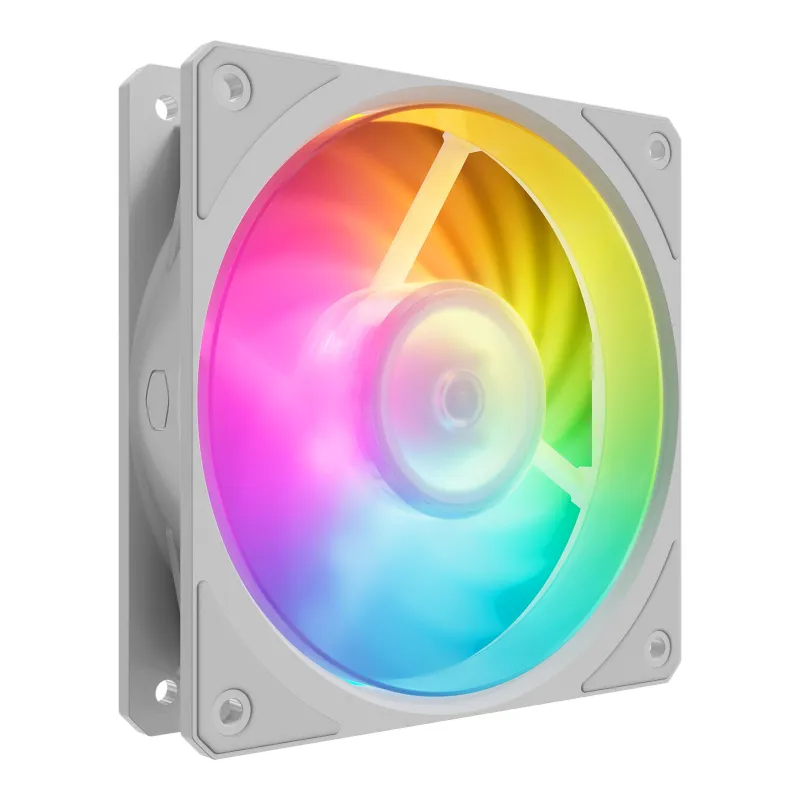

Cooler Master Mobius 120P ARGB White Edition Computer case Fan 12 cm
- Ring Blade Design (RBD)
- Pressure Air Acceleration
- Absolute Acoustics
- Luminescent Light Effects
- Addressable Gen 2 RGB
More Balance, More Burst]
Perfecting Engineering
Cooler Master’s Mobius120P ARGB White Edition is our new series of performance fans. With our enhanced Ring Blade Design, the Mobius Series optimizes both performance and acoustics, catering to a dynamic range of applications from case, liquid or air, to overclocking and intense gaming.
Ring Blade Design (RBD)
Interconnecting fan blades designed for a reinforced and rigid structure, eliminating vibration for stable and fluid fan operation.
Oil Reflow Bearing System
Our newly designed ORBS (Oil Reflow Bearing System)has thick oil film and lubrication formation that can achieve stable running
Oil Reflow
The oil flows back to the sealed bearing to create constant lubrication against friction and increases the life span of the fan.
Dust Proofing
The sealed and concave position of the bearing prevents air and dust exposure and ensures a smooth transfer of motion.
Anti-sway System
Magnetic ring prevents bearing shaft from tilting, stabilizing the fan to prevent fan blade obstruction under various orientations, as well as oil spray.
Pressure Air Acceleration
Angled inner frame rim with chamfered side vents boost airflow draw, maximizing force induced air pressure and diminishing dead air.
Absolute Acoustics
Sound output fine tuned to the optimal prominence ratio to achieve sub 6dB noise levels without performance sacrifice.
Anti-vibration Damper
Exclusive Cooler Master color accent dampers diminish vibration and rattling to maintain chassis stability for silent performance.
ARGB Motherboard Compatibility
Addressable Gen 2 RGB syncs with Cooler Master’s MasterPlus+ software and dedicated controller, allowing customization of individual LED colors, effects, brightness and more – all from an intuitive, convenient interface. (controller sold separately)
| Performance | |
|---|---|
| Fan’s mean time to failure (MTTF) | 200000 h |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 3.63 mmH2O |
| Maximum airflow | 75.2 cfm |
| Noise level (high speed) | 30 dB |
| Rotational speed (max) | 2400 RPM |
| Rotational speed (min) | 0 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| LED connector type | 3-pin |
| Illumination LED | Yes |
| Product colour | White |
| Power | |
|---|---|
| Safety current | 0.35 Ah |
| LED voltage | 5 V |
| Rated current | 0.18 A |
| Rated voltage | 12 V |
| Power consumption (typical) | 2.16 W |
| Weight & dimensions | |
|---|---|
| Package weight | 266 g |
| Package height | 178 mm |
| Package depth | 130 mm |
| Package width | 28 mm |
| Fan weight | 179 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case height | 155 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case width | 315 mm |
