Home Wireless Access Points Cisco Meraki CW9166D1-MR wireless access point White Power over Ethernet (PoE)
Red Arrow ZENA-CCT Zenith Wallpack Area 13-28W 3/4K Grey £78.99 Original price was: £78.99.£26.25Current price is: £26.25.
Back to products
Kensington MagPro™ Magnetic Privacy Screen Filter for Monitors 21.5” (16:9) £117.99 Original price was: £117.99.£39.20Current price is: £39.20.

Cisco Meraki CW9166D1-MR wireless access point White Power over Ethernet (PoE)

£299.99 Original price was: £299.99.£99.99Current price is: £99.99.

Compare
Add to wishlist
SKU: US-15330041627006 Category: Wireless Access Points
Share:
  • Description
  • Shipping & Delivery
Description

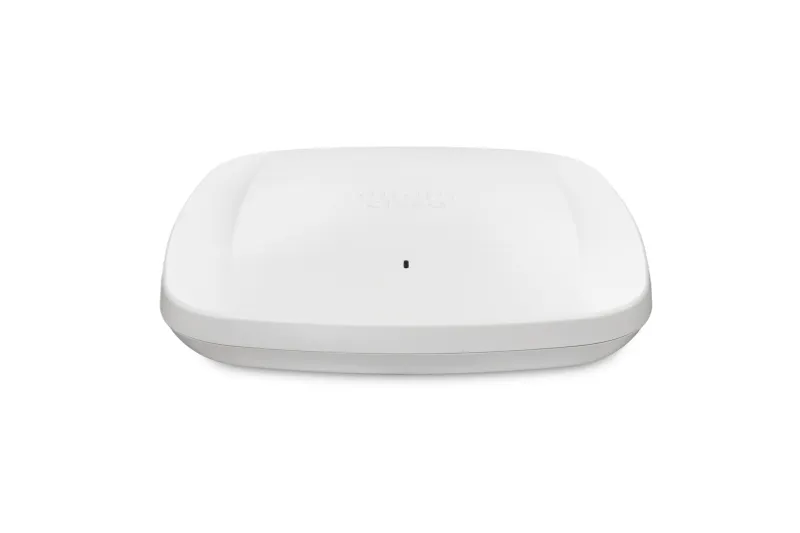

Cisco Meraki CW9166D1-MR wireless access point White Power over Ethernet (PoE)

  • 2.4 GHz
  • 5 GHz
  • 6 GHz
  • IEEE 802.11a, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n
  • 128-bit AES, WPA, WPA3
  • Power over Ethernet (PoE)
  • Internal

The Cisco Catalyst 9166 series Wi-Fi 6E access points enable operation in the 6GHz band to produce a network that is more reliable and secure, with higher throughput, more capacity, and less device interference. These access points provide three 4×4 radios and a host of cutting-edge features, including integrated environmental sensors and IoT radios. The Catalyst 9166 Series even offers an internal directional antenna model – the Catalyst 9166D1 – designed for use cases and areas with high ceilings such as auditoriums, warehouses, and other large open space areas. The Catalyst 9166D1 should be leveraged where typically external antennas would be required. And because the Catalyst 9166D1 uses a built-in directional antenna, it eliminates the need for additional hardware to achieve ideal wireless coverage.

Operational management is flexible because customers can change their network management whenever they want. If a network with Cisco Catalyst 9166 Series Access Points was originally an on-premises deployment, it can be changed to cloud-based management without the need to purchase and redistribute additional hardware, saving you money as you network your way.

With the industry’s leading on-premises network platform (Catalyst) joining the industry’s leading cloud IT platform (Meraki), these access points provide an unparalleled network experience. For organizations that need a wireless solution to deliver a reliable, flexible, and superior experience for your users, the Cisco Catalyst 9166 Series Access Points are the best choice.

Features
Maximum outdoor range 25 m
Dynamic Frequency Selection (DFS) Yes
Cyclic Shift Diversity (CSD) Yes
Maximal-Ratio Combining (MRC) Yes
Spread spectrum method OFDMA
MIMO type Multi User MIMO
MIMO Yes
Bluetooth version 5.1
Bluetooth Low Energy (BLE) Yes
Networking standards IEEE 802.11a, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates 100,1000,2500,50000 Mbit/s
5 GHz Yes
6 GHz Yes
2.4 GHz Yes
Security
Access Control List (ACL) Yes
Security algorithms 128-bit AES, WPA, WPA3
Ports & interfaces
USB 2.0 ports quantity 1
Internal RJ-45 ports quantity 2
Ethernet LAN (RJ-45) ports 1
Power
Power over Ethernet (PoE) Yes
Design
LED indicators Yes
Cable lock slot type Kensington
Cable lock slot Yes
Product colour White
Placement Wall
Antenna
Antenna gain level (max) 8 dBi
Antenna direction type Directional
Antenna type Internal
Performance
Flash memory 1024 MB
Internal memory 2048 MB
General
Product family Meraki
Weight & dimensions
Weight 1.59 kg
Height 57.9 mm
Depth 241.3 mm
Width 241.3 mm
Packaging content
Bundled software Cisco IOS XE Software Release 17.12.1 or later
Operational conditions
Storage temperature (T-T) -30 – 70 °C
Operating temperature (T-T) 0 – 50 °C
Operating relative humidity (H-H) 10 – 90%
Shipping & Delivery

Related products

-67%
Add to cart
Quick view
Compare
Add to wishlist

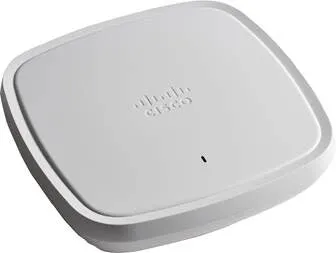

Cisco 9115 Grey Power over Ethernet (PoE)
