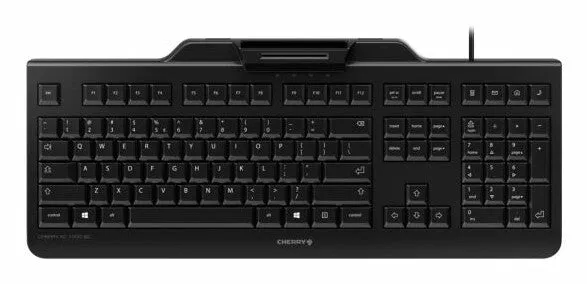

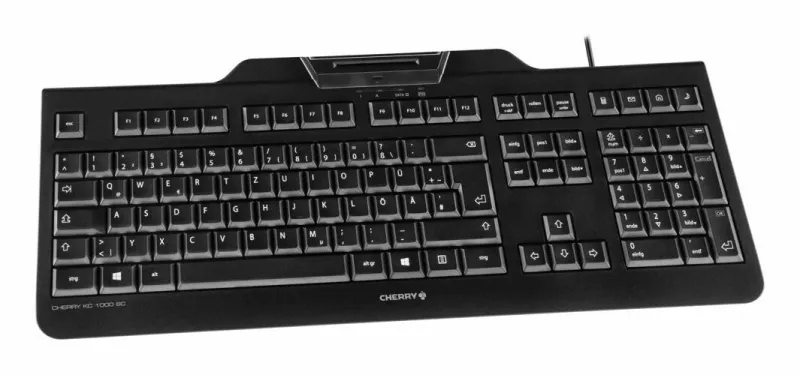

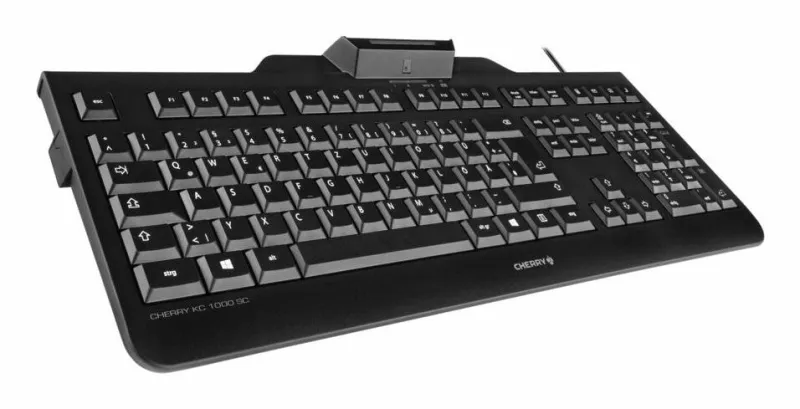

CHERRY KC 1000 SC
- Smart, wired security keyboard with integrated chip card terminal
- Secure PIN entry
- PC/SC smartcard reader
- Protocols: T=0, T=1, S=8, S=9, S=10
- CCID compatible
- Reading/writing ISO 7816 compliant smartcards
- Flat design, low smart card contacting unit
- Satisfies requirements defined by FIPS-201
- German version with DIN/GS compliant layout
- Driver support for Windows/MacOS-X/Linux
- One-handed operation of smart card module
- German version complies with BGI 650 guidance for ergonomics
- Awarded the “Blaue Engel” environmental seal
Lasting reliability. Timeless elegance. Intelligent concept. CHERRY KC 1000 SC combines the benefits of a classic CHERRY office keyboard with the security-related requirements of a smartcard terminal.
| Keyboard | |
|---|---|
| Key travel distance | 3 mm |
| Hot keys | Yes |
| Keyboard keys operating life | 10 million characters |
| Keyboard number of keys | 109 |
| Keycaps material | Acrylonitrile butadiene styrene (ABS) |
| Numeric keypad | Yes |
| Keyboard form factor | Full-size (100%) |
| Pointing device | No |
| Keyboard language | US English |
| Keyboard layout | QWERTY |
| Device interface | USB |
| Connectivity technology | Wired |
| Recommended usage | Service |
| Design | |
|---|---|
| Surface coloration | Monochromatic |
| Product colour | Black |
| Adjustable keyboard height | Yes |
| Keyboard style | Straight |
| Backlight | No |
| Features | |
|---|---|
| Cable length | 1.8 m |
| USB connector type | USB Type-A |
| Power | |
|---|---|
| Power consumption | 100 mA |
| Power source type | USB |
| Mouse | |
|---|---|
| Mouse included | No |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 – 65 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Sustainability | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RCM, UKCA |
| Weight & dimensions | |
|---|---|
| Keyboard weight | 840 g |
| Keyboard dimensions (WxDxH) | 458 x 188 x 46 mm |
| Packaging data | |
|---|---|
| Package weight | 1.19 kg |
| Package height | 55 mm |
| Package depth | 230 mm |
| Package width | 475 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of products included | 1 pc(s) |
| Other features | |
|---|---|
| Warranty period | 3 year(s) |
