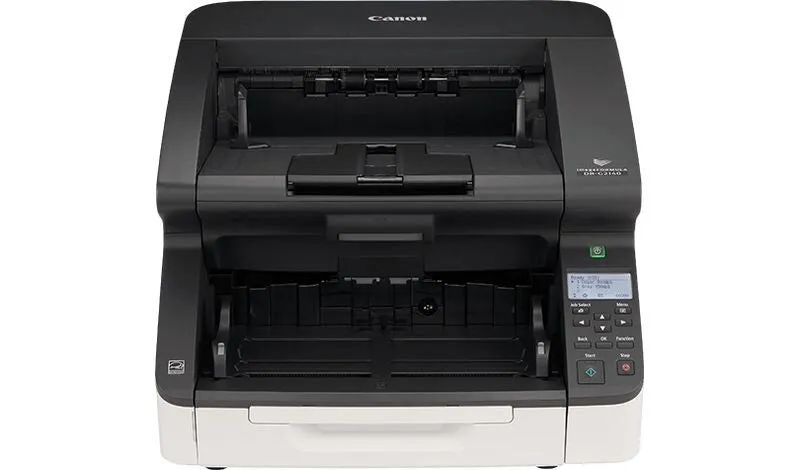

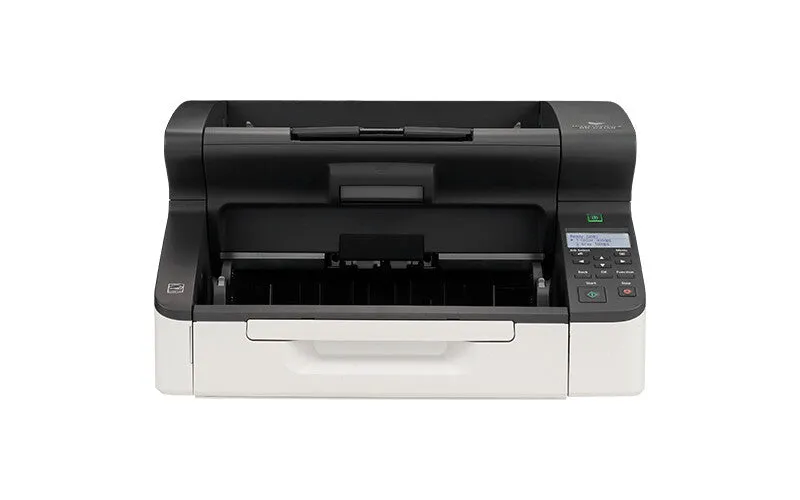

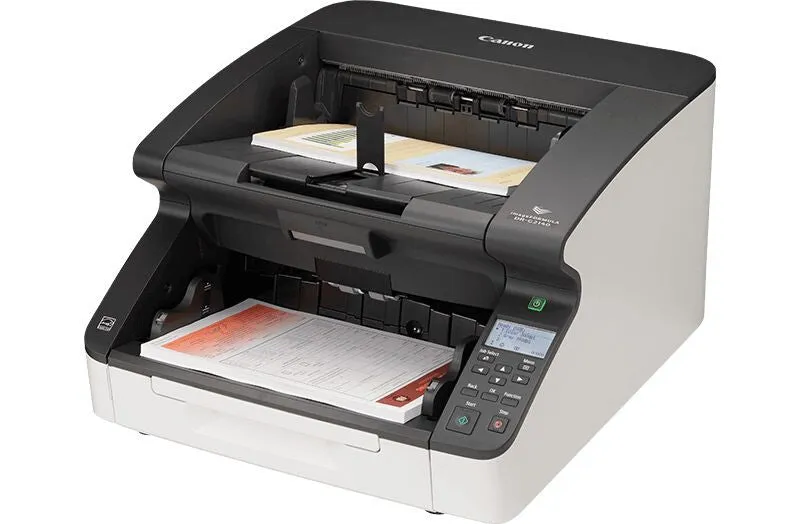

Canon imageFORMULA DR-G2140 Sheet-fed scanner 600 x 600 DPI A3 Black, White
- Ultra-fast scanner – Up to 280 images per minute
- Highly efficient – 70,000 scans per day
- Durable – Robust design
- Network connectivity – connect directly to the network via a wired LAN connection
- Superior Image quality – Enhanced image processing with Active Thresholding
- Capture on touch – Powerful touch with easy operation
- Reliable and versatile feeding – Scan mixed documents together with pages being reliably fed into the scanner
- Easy connectivity and integration – ISIS/TWAIN/WIA and KOFAX VRS Drivers enable integration into various scanning applications
- Energy Efficient – Consume low energy while scanning
Ultra-fast model takes production scanning to the next level
Optimised for customers who require exceptional high-speed productivity, superior image quality and dependable feeding performance, this A3 scanner has been created to excel in demanding environments
Productivity
Ultra-efficient scanner outputs up to 280 images per minute
Reliability
Robust, durable paper feed and transport rollers can deliver up to 70,000 scans per day
Image quality
Advanced image-processing tools deliver consistently crisp, clear, high-quality images
| Scanning |
| Duplex ADF scan speed (b/w, A4) |
290 ipm |
| Duplex ADF scan speed (colour, A4) |
290 ipm |
| ADF scan speed (colour, A3) |
145 ppm |
| ADF scan speed (b/w, A3) |
145 ppm |
| Output colour depth |
24 bit |
| Duplex scanning |
Yes |
| Colour scanning |
Yes |
| Optical scanning resolution |
600 x 600 DPI |
| Maximum scan size |
305 x 432 mm |
| Design |
| Product colour |
Black, White |
| Built-in display |
Yes |
| Scanner type |
Sheet-fed scanner |
| Performance |
| Daily duty cycle (max) |
70000 pages |
| Light source |
RGB LED |
| Sensor type |
CIS |
| Input capacity |
| Standard input capacity |
500 sheets |
| Paper handling |
| Auto Document Feeder (ADF) media weight |
20 – 209 g/m² |
| Long-paper mode |
Yes |
| Maximum ISO A-series paper size |
A3 |
| Ports & interfaces |
| Standard interfaces |
RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) |
| USB version |
3.2 Gen 2 (3.1 Gen 2) |
| USB port |
Yes |
| Power |
| Input voltage |
220 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Power consumption (standby) |
3.5 W |
| Power supply type |
AC |
| Power consumption (typical) |
66.5 W |
| Weight & dimensions |
| Weight |
25 kg |
| Height |
315 mm |
| Depth |
569 mm |
| Width |
480 mm |
| General |
| Product family |
imageFORMULA |
| Operational conditions |
| Operating relative humidity (H-H) |
20 – 80% |
| Operating temperature (T-T) |
10 – 35 °C |
| Logistics data |
| Harmonized System (HS) code |
84716070 |
