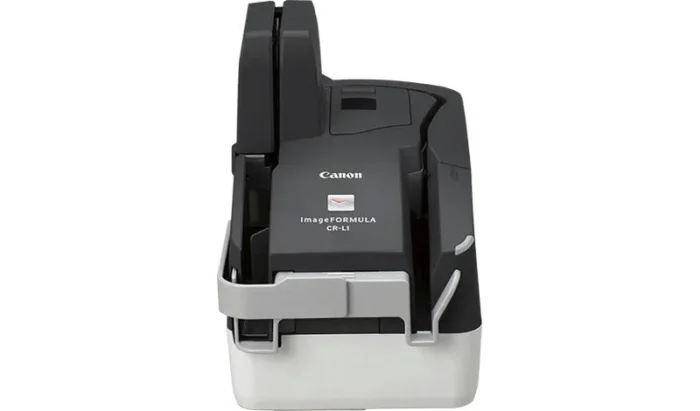

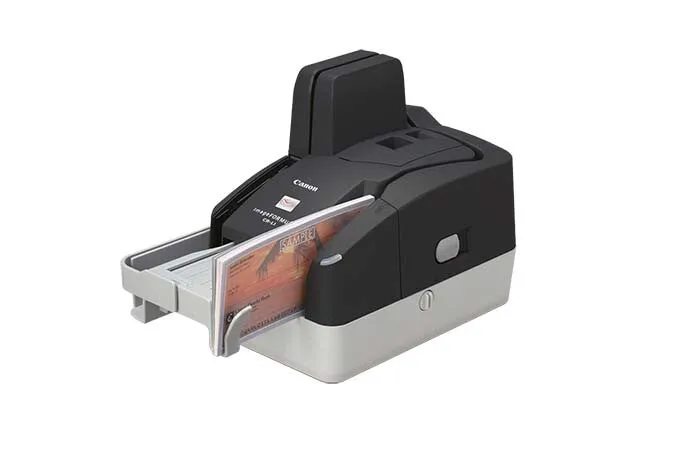

Canon imageFORMULA CR-L1 300 x 300 DPI Black, Grey
- 300 x 300 DPI
- Colour scanning Duplex scanning
- Maximum scan size: 108 x 228 mm Sensor type: CMOS CIS
- USB port
- 15.8 W
| Scanning | |
|---|---|
| Greyscale levels | 256 |
| Output colour depth | 24 bit |
| Duplex scanning | Yes |
| Colour scanning | Yes |
| Optical scanning resolution | 300 x 300 DPI |
| Maximum scan size | 108 x 228 mm |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Built-in display | No |
| Performance | |
|---|---|
| Daily duty cycle (max) | 3000 pages |
| Light source | RGB LED |
| Sensor type | CMOS CIS |
| Input capacity | |
|---|---|
| Auto document feeder (ADF) input capacity | 50 sheets |
| Paper handling | |
|---|---|
| Auto Document Feeder (ADF) media weight | 64 – 157 g/m² |
| Card thickness (max) | 0.2 mm |
| Media thickness (min) | 0.08 mm |
| Long-paper mode | Yes |
| Ports & interfaces | |
|---|---|
| Standard interfaces | USB 2.0 |
| USB version | 2.0 |
| USB port | Yes |
| Power | |
|---|---|
| Power consumption (sleep) | 2.3 W |
| Input voltage | 230 V |
| Power consumption (typical) | 15.8 W |
| Weight & dimensions | |
|---|---|
| Weight | 2.1 kg |
| Height | 188 mm |
| Depth | 223 mm |
| Width | 140 mm |
| Packaging content | |
|---|---|
| Bundled software | Ranger driver + IQA, Canon Scanning Utility |
| General | |
|---|---|
| Product family | imageFORMULA |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
| Operating temperature (T-T) | 10 – 32.5 °C |
