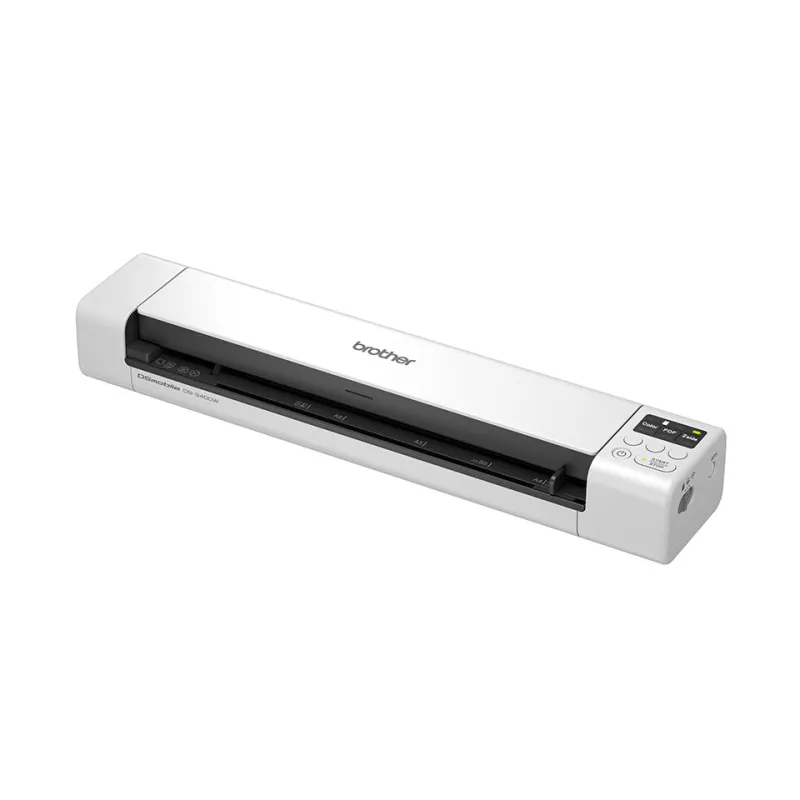

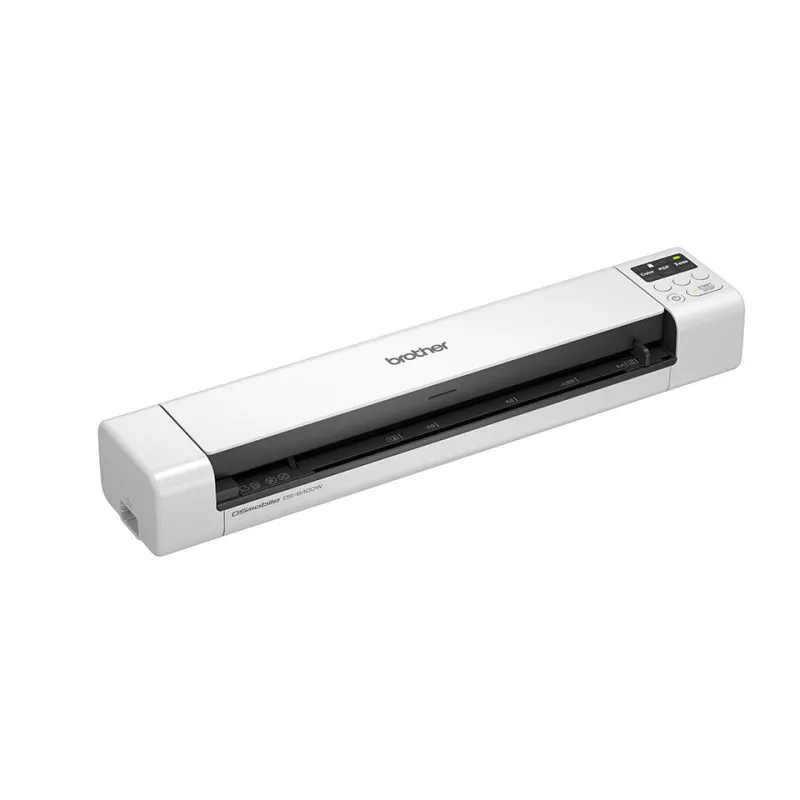

Brother DS-940DW scanner Sheet-fed scanner 600 x 600 DPI A4 Black, White
- Automatic 2-sided A4 scanning up to 15 pages per minute
- Space saving ‘U-path’ paper feed system
- Industry leading software to scan documents, receipts and ID cards
- Power directly from a USB 3.0 port on PC
- Built-in rechargeable battery and card reader
- Connect to a wireless network or Brother mobile app
Brother DSmobile DS-940DW Wireless, 2-sided Portable Document Scanner
Wireless scan and go with the DSmobile DS-940DW. Versatile and truly portable with built-in rechargeable battery. Staying on top of your paperwork when you are out of the office is simple.
The DSmobile DS-940DW is engineered to be truly flexible. Featuring a built-in battery, Wi-Fi and intuitive LCD panel, setup is effortless. Digitising your files whether in the office where space is limited or out on the road is simple.
Scan your documents straight to the cloud using Brother’s mobile app and easily share your documents with colleagues wherever you are. Your information is kept safe, effortless to find and more convenient to edit.
With a unique “U-path” roller system, you are not required to have extra space behind the scanner for the document to feed-through. As the document goes in, it glides over the top of the scanner and is returned to you.
| Scanning |
| Black/white scanning colour modes |
Grayscale, Monochrome |
| Duplex ADF scan speed (colour, A4) |
30 ipm |
| ADF scan speed (colour, A4) |
15 ppm |
| ADF scan speed (b/w, A4) |
15 ppm |
| Output colour depth |
24 bit |
| Input colour depth |
48 bit |
| Duplex scanning |
Yes |
| Colour scanning |
Yes |
| Optical scanning resolution |
600 x 600 DPI |
| Enhanced scan resolution |
1200 x 1200 DPI |
| Maximum scan size |
215.9 x 1828.8 mm |
| Design |
| Product colour |
Black, White |
| Built-in display |
No |
| Scanner type |
Sheet-fed scanner |
| Performance |
| Compatible memory cards |
MicroSD (TransFlash) |
| Internal memory |
512 MB |
| Sound pressure level (max) |
42 dB |
| Scan drivers |
ICA, SANE, TWAIN, WIA |
| Scan to |
E-mail, File, Image, Memory card, OCR |
| Input capacity |
| Standard input capacity |
1 sheets |
| Paper handling |
| Maximum scan length |
182.9 cm |
| Maximum scan width |
21.6 cm |
| Card thickness (max) |
1.24 mm |
| Scanning media types supported |
Business Card, Plain paper, Plastic Card |
| Maximum ISO A-series paper size |
A4 |
| Ports & interfaces |
| Standard interfaces |
USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN |
| USB connector type |
Micro-USB B |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| USB port |
Yes |
| Network |
| Wi-Fi Direct |
Yes |
| Supported network protocols (IPv4) |
DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder,SNTP Client |
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Power |
| Power consumption (off) |
0.11 W |
| Power consumption (standby) |
2.2 W |
| Power supply type |
USB |
| Power consumption (typical) |
3.6 W |
| Weight & dimensions |
| Weight |
590 g |
| Height |
377 mm |
| Depth |
76 mm |
| Width |
162 mm |
| Packaging data |
| Package weight |
1.23 kg |
| Package height |
76 mm |
| Package depth |
162 mm |
| Package width |
377 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
Micro-USB |
| Warranty card |
Yes |
| System requirements |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Operational conditions |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Technical details |
| Pallet type |
800 x 1200 mm |
| Logistics data |
| Master (outer) cases per pallet |
72 pc(s) |
| Layers per pallet |
8 pc(s) |
| Master (outer) cases per pallet layer |
9 pc(s) |
| Pallet gross weight |
274.3 kg |
| Pallet gross height |
15.9 cm |
| Harmonized System (HS) code |
84716070 |
| Country of origin |
China |
| Products per pallet |
216 pc(s) |
