Bixolon XD5-40d label printer Direct thermal 203 x 203 DPI 178 mm/sec Wired
- Direct thermal
- 203 x 203 DPI
- Maximum printing width: 10.8 cm Print speed: 178 mm/sec
- Built-in barcodes: 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39
- Connectivity technology: Wired
- USB port
- 1.89 kg
Robust and highly featured

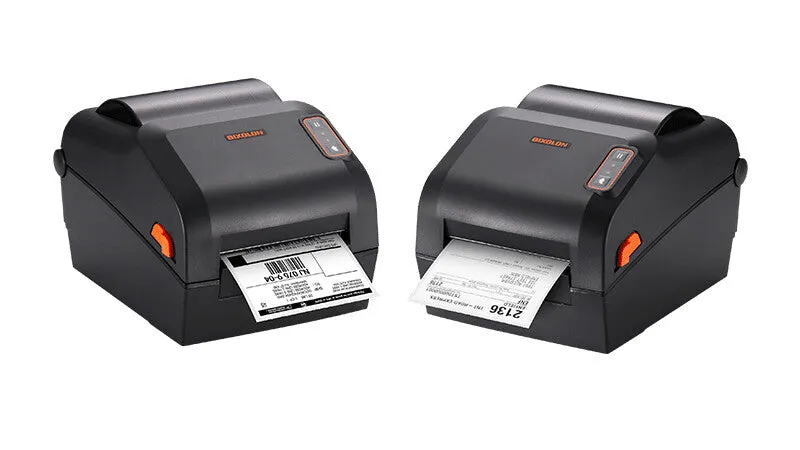

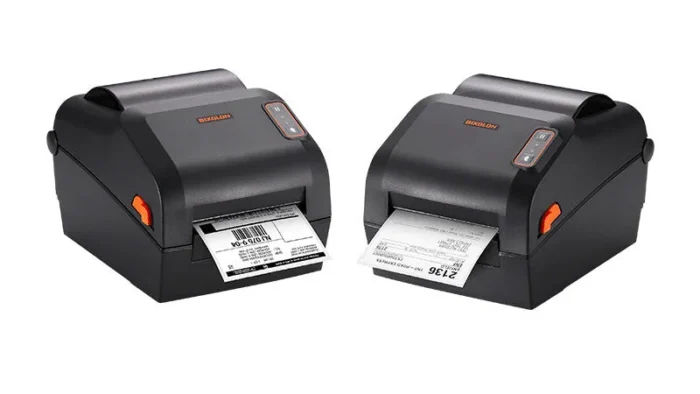

The XD5-40d is a 4-inch (118mm) mid-level Direct Thermal Desktop Barcode and Label Printer featuring a compact, clamshell design and comprehensive software features which is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries. Available as XD5-40d (203dpi) and XD5-43d (300dpi) resolution options, the XD5-40d’s standard model (XD5-40d) offers quick data processing and print speeds of up to 7 ips (178mm/sec), with enhanced memory space of up to 256MB SDRAM and 256MB Flash.

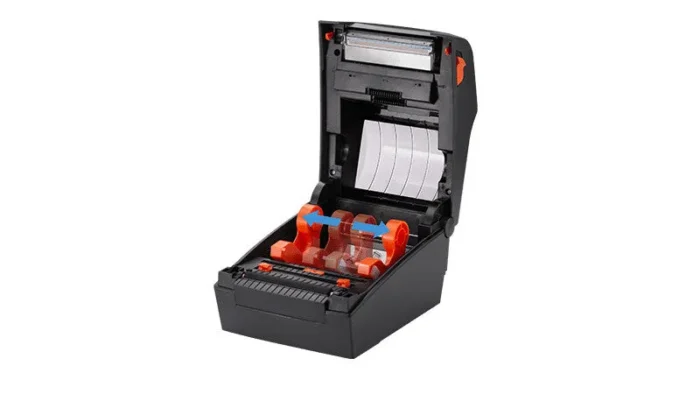

Accompanied with a field installable Peeler, Auto Cutter and an external paper supply, the label printer offers an optional visual LCD display, adjustable paper guide plus holder and space for a media roll diameter of up to 127mm. Complemented by its Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 2-year warranty as standard.
Supporting multiple connectivity options, the XD5-40d comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XD5-40d is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.
| Printing | |
|---|---|
| Maximum print length | 1 m |
| Maximum printing width | 10.8 cm |
| Print speed | 178 mm/sec |
| Number of printable dots | 8 dot |
| Maximum resolution | 203 x 203 DPI |
| Print technology | Direct thermal |
| Paper handling | |
|---|---|
| Media thickness | 0.06 – 0.2 mm |
| Maximum label width | 11.8 cm |
| Maximum roll diameter | 12.7 cm |
| Ribbon length | 300 m |
| Ribbon width | 11 cm |
| Autocutter | Yes |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| Wi-Fi | No |
| Ethernet LAN | No |
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39 |
| Flash memory | 128 MB |
| Internal memory | 64 MB |
| Design | |
|---|---|
| Control type | Buttons |
| Display | No |
| Built-in display | No |
| Product colour | Black |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Mac operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 10 – 80% |
| Weight & dimensions | |
|---|---|
| Weight | 1.89 kg |
| Height | 169 mm |
| Depth | 248 mm |
| Width | 194 mm |
| Packaging content | |
|---|---|
| Cables included | USB |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84433210 |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Other features | |
|---|---|
| Character sets | 5 BPL-E, 16 BPL-Z, SLCS, Unicode |
