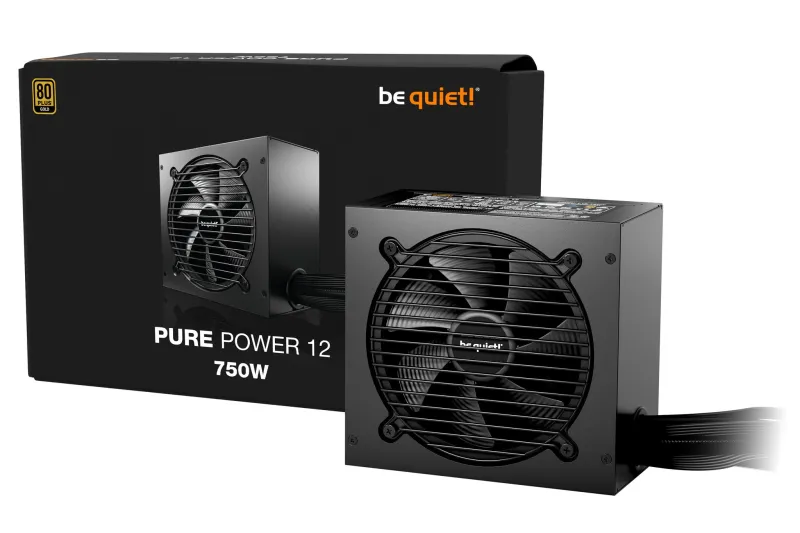

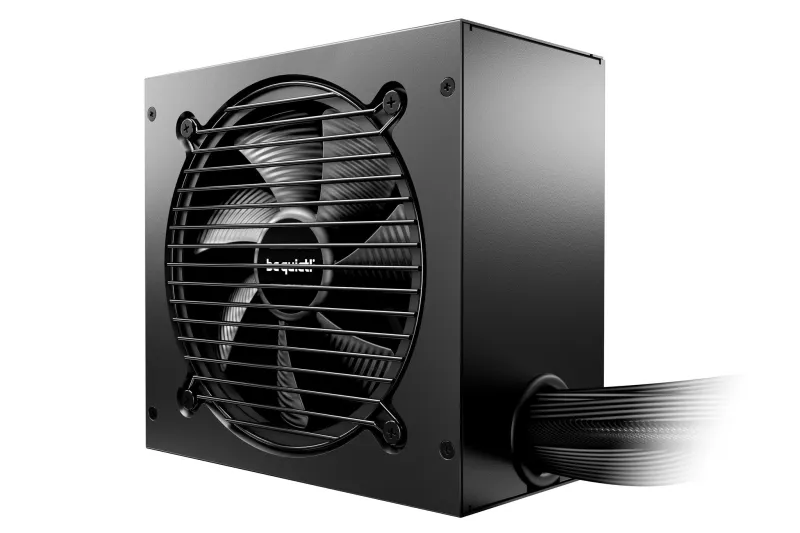

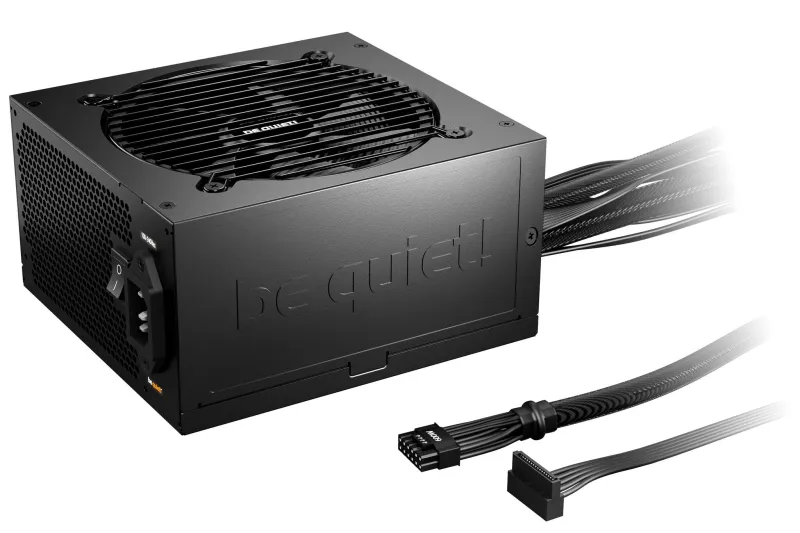

be quiet! PURE POWER 12 750W power supply unit 20+4 pin ATX ATX Black
- 80 PLUS® Gold efficiency (up to 92.8%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Exceptionally silent 120mm be quiet! fan
- Advanced stability and voltage regulation thanks to LLC technology
- One massive high-performance 12V-rail
- One PCIe 5.1 12V-2×6 600W and 3 PCIe 6+2 connectors for overclocked high-end GPUs
Exceptional quiet, superior features
Pure Power 12 750W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
| Power |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Hold time |
17.04 ms |
| Efficiency |
90.7% |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V1) |
62.5 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
120 W |
| Combined power (+12V) |
750 W |
| Combined power (+3.3V) |
120 W |
| Number of +12V rail(s) |
1 |
| Power Factor Correction (PFC) type |
Active |
| Power factor |
0.98 |
| Maximum input current (@220V) |
5 A |
| Maximum input current (@110V) |
10 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Peak power |
820 W |
| Total power |
750 W |
| Ports & interfaces |
| Cabling type |
Non-Modular |
| CPU power cable length |
60 cm |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power cable length |
60 cm |
| PCI Express power connectors (12-pin) |
1 |
| PCI Express power connectors (6+2 pin) |
3 |
| Peripheral (Molex) power cable length |
800 mm |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| SATA power cable length |
500,650,800,950 mm |
| Number of SATA power connectors |
6 |
| Motherboard power cable length |
55 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
Rifle |
| Noise level |
22.5 dB |
| EPS version |
2.92 |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
| On/off switch |
Yes |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
0 – 90% |
| Storage temperature (T-T) |
-20 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Certificates |
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus |
| Packaging content |
| Cable tie(s) included |
Yes |
| Cables included |
AC |
| Weight & dimensions |
| Weight |
2.6 kg |
| Height |
150 mm |
| Depth |
160 mm |
| Width |
86 mm |
| Packaging data |
| Package weight |
3 kg |
| Package height |
210 mm |
| Package depth |
320 mm |
| Package width |
133 mm |
| Technical details |
| Sustainability certificates |
ENERGY STAR, ErP, Triman |
| Logistics data |
| Shipping (inner) case length |
44 cm |
| Shipping (inner) case width |
34.5 cm |
| Shipping (inner) case height |
41.8 cm |
| Shipping (inner) case net weight |
19.2 kg |
| Products per shipping (inner) case |
6 pc(s) |
| Warranty period |
10 year(s) |
| Other features |
| Screws included |
Yes |
