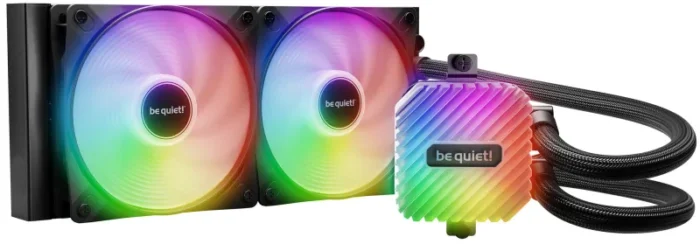

be quiet! LIGHT LOOP 240mm Black Processor All-in-one liquid cooler 12 cm 1 pc(s)
- Stylish ARGB cooling block features lots of illumination options for stunning visual effects
- 2 Light Wings LX PWM high-speed fans for colorful and vibrant cooling
- Impressively high cooling performance for all consumer CPUs
- State-of-the-art pump with progressive IC
- Specially designed jet plate and cold plate for superior performance
- ARGB-PWM-Hub enables synchronization of up to 6 ARGB components and PWM fans
- Easy-to-access refill port and included coolant bottle for a long lifespan
Peak performance and lighting
Light Loop 240mm Black is an impressively high-performing All-in-One water cooling unit with uniquely illuminated ARGB cooling block for users with overclocked systems.
TRUE COLORS
Unrivalled ARGB lighting
Light Loop 240mm Black features 48 LEDs in total, leading to stunning visuals. Since your PC is not like any other, you can individualize your build with numerous colors and illumination options. The uniquely illuminated cooling block and Light Wings LX fans make Light Loop 240mm Black an undisputed highlight in any system.
LIGHT WINGS LX FANS
Performant, yet quiet operation
Light Loop 240mm Black features 2 Light Wings LX 120mm PWM high-speed fans. They come with 16 LEDs that perfectly scatter across the fan blades and are key for the stunning visuals Light Loop 240mm Black offers. The fan’s 9 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure that Light Wings LX 120mm PWM high-speed provides the performance that is needed, even in demanding scenarios.
IMPRESSIVELY HIGH COOLING PERFORMANCE
Designed for intensive gaming sessions
With Light Loop 240mm Black even highly demanding applications can be used reliably. An impressively high cooling power provides low temperatures even during periods of peak CPU performance. Perfectly suited for your next session!
ADVANCED TECHNOLOGIES
One step ahead in every aspect
Jet plate, pump and the cold plate of Light Loop 240mm Black are designed for peak performance. The metal jet plate increases pressure of the cooling liquid, leading to an enhanced performance. A cold plate with a high-density fin stack increases cooling performance on modern flagship and high-end CPUs. Finally, a progressive IC in the motor reduces switching noise, ensuring the noise of the pump stays at a low level.
ONE HUB, MANY POSSIBILITIES
Synchronization of up to 6 ARGB-components

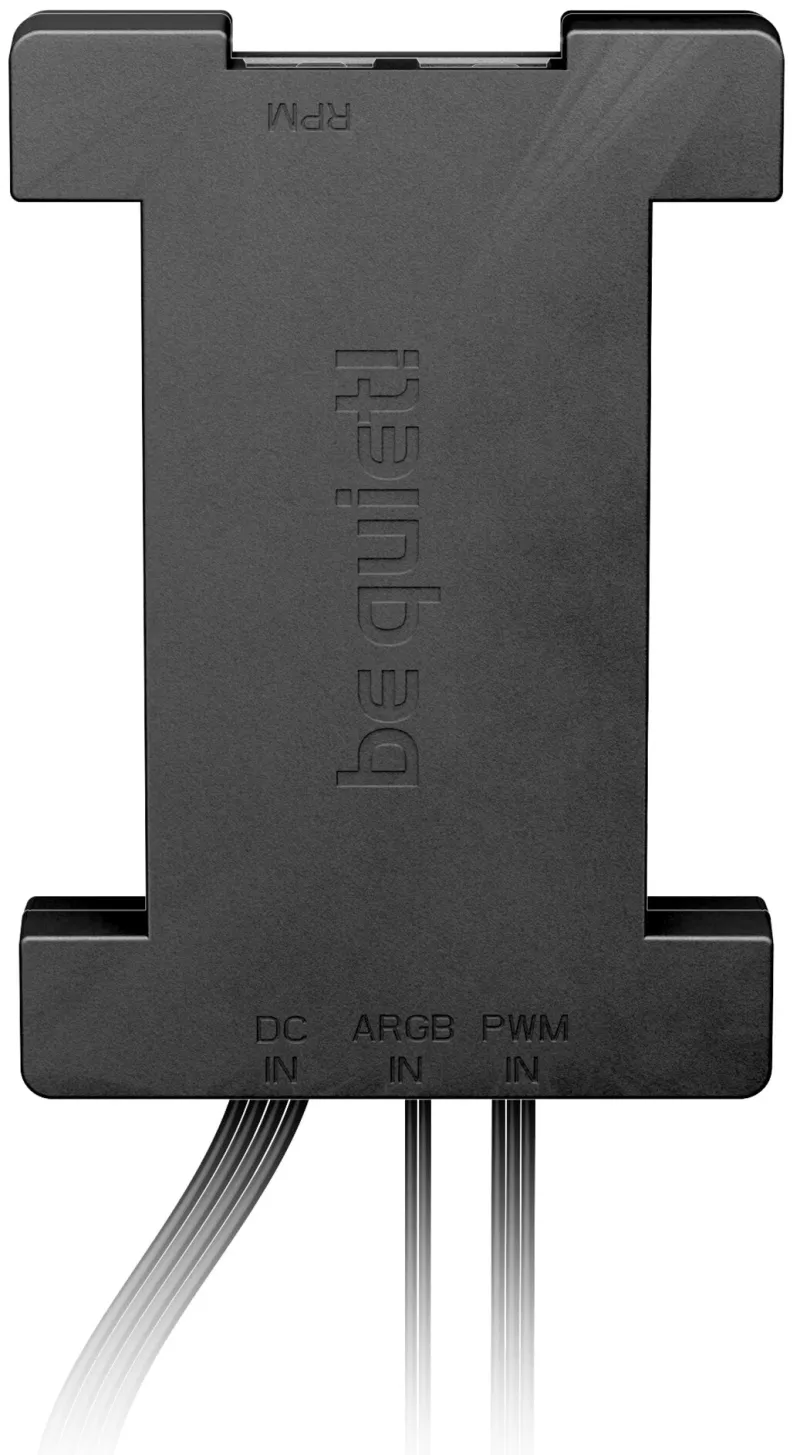

The ARGB-PWM-Hub enables synchronization of up to 6 PWM fans and 6 ARGB components. This allows you to control all your cooling and lighting gear with just one PWM and one ARGB header on your motherboard. It can be positioned anywhere inside the case with adhesive tape or screw holes that match a 2.5” SSD mounting.
EASY TO REFILL
For a long lifespan
The refill port is easy to access which makes refilling safe and comfortable. The coolant bottle included in scope of delivery makes it easy to achieve a long lifespan.
BLACK BEAUTY
Stunning design
Light Loop 240mm Black complements all-black systems best, thanks to its uniform black aesthetics. The integrated ARGB LED lighting within the cooling block and fans allows the vibrant lighting to take center stage.
| Performance | |
|---|---|
| Fan’s mean time to failure (MTTF) | 60000 h |
| Pump motor speed | 2900 RPM |
| Fan speed (max) | 2100 RPM |
| Pump motor speed (min) | 1500 RPM |
| Pump motor speed (max) | 2900 RPM |
| Quantity per pack | 1 pc(s) |
| Pump connector | 4-pin |
| Fan bearing technology | Rifle bearing |
| Fan noise level (max) | 34.9 dB |
| Fan noise level (min) | 15.4 dB |
| Pulse-width modulation (PWM) support | Yes |
| Airflow | 105.1 m³/h |
| Maximum airflow | 61.8 cfm |
| Supported processor sockets | Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4 |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Certification | CE, FCC, UKCA, RoHS, WEEE, Triman |
| Fan connector | 4-pin |
| Number of fan blades | 9 |
| Number of fans | 2 fan(s) |
| Base plate material | Copper |
| Product colour | Black |
| Power | |
|---|---|
| Fan voltage | 12 V |
| Fan current | 0.45 A |
| Fan power consumption | 5.4 W |
| Rated voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Package weight | 2.1 kg |
| Package height | 137 mm |
| Package depth | 322 mm |
| Package width | 205 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 1.2 kg |
| Height | 75 mm |
| Tube length | 40 cm |
| Depth | 82 mm |
| Radiator height | 27.7 cm |
| Radiator depth | 5.2 cm |
| Radiator width | 12 cm |
| Width | 94 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Warranty period | 3 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE |
| Packaging content | |
|---|---|
| Manual | Yes |
| RGB controller included | Yes |
| LED controller interface | 3-pin |
| Mounting kit | Yes |
| Package type | Box |
| Other features | |
|---|---|
| Thermal grease | Yes |
| Logistics data | |
|---|---|
| Shipping (inner) case gross weight | 13.7 kg |
| Shipping (inner) case height | 46 cm |
| Shipping (inner) case length | 44 cm |
| Shipping (inner) case width | 34 cm |
| Products per shipping (inner) case | 6 pc(s) |
