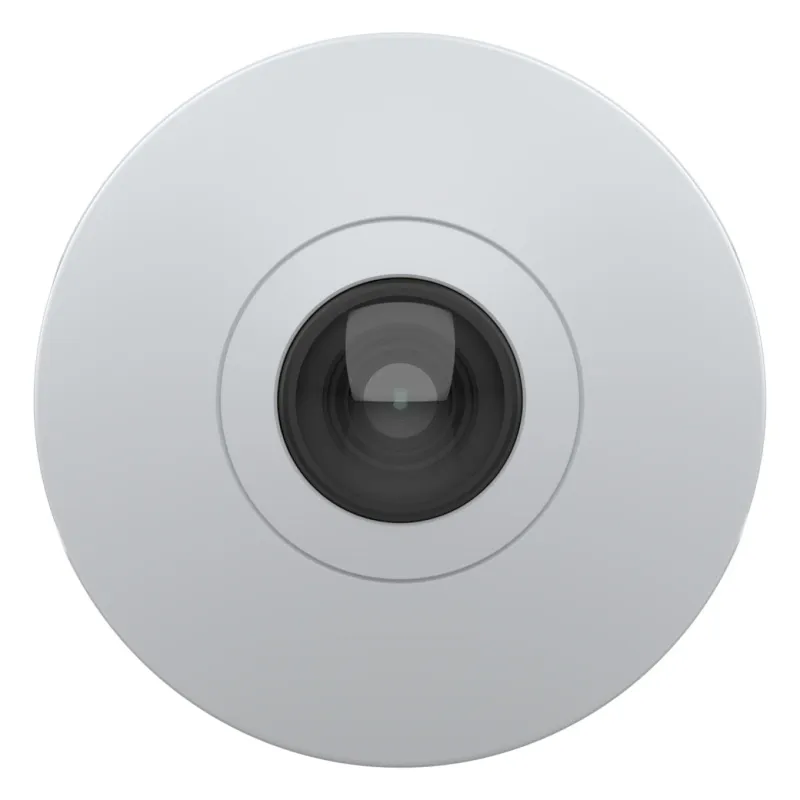

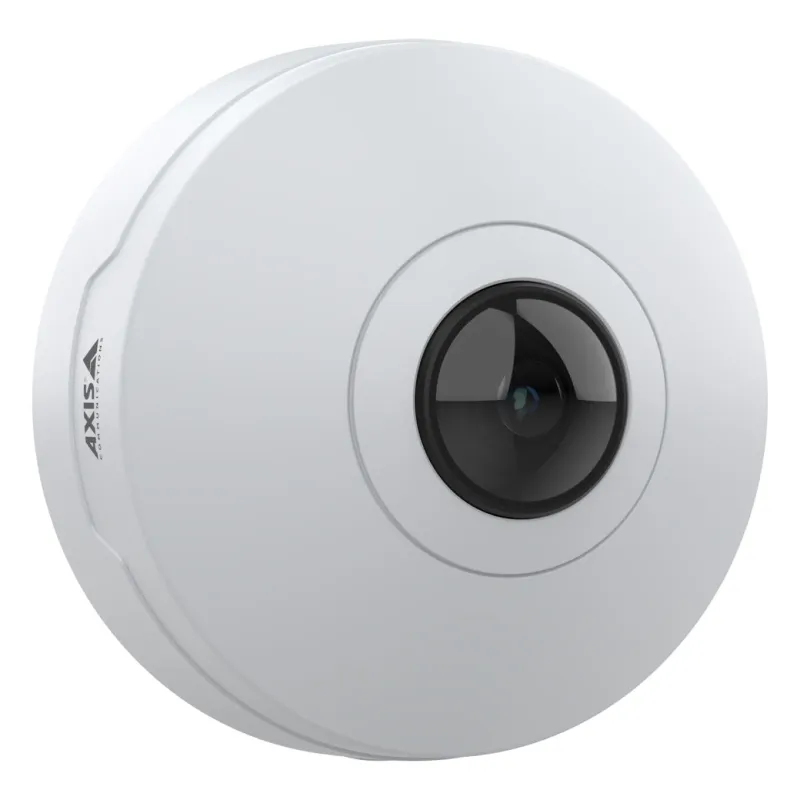

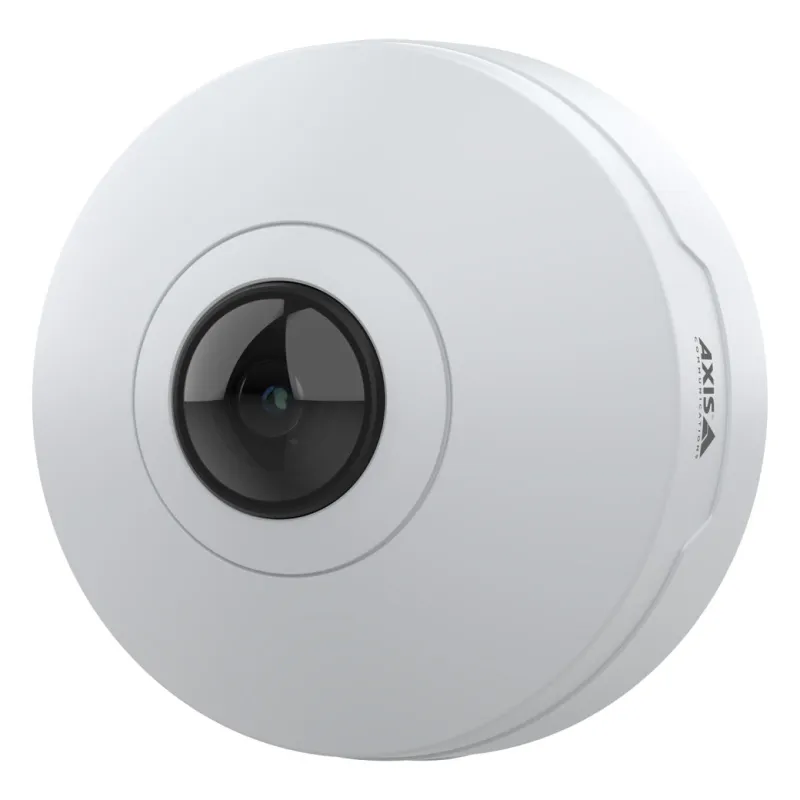

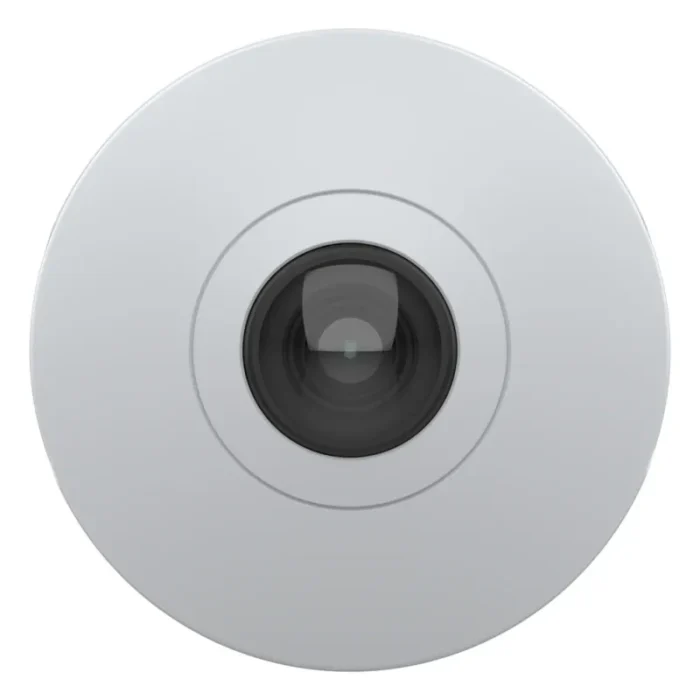

Axis M4328-P Dome IP security camera Indoor 2992 x 2992 pixels Ceiling/wall
- Indoor IP security camera
- CMOS 25.4 / 2.3 mm (1 / 2.3″) 12 MP 2992 x 2992 pixels
- Wired Ethernet LAN
- Dome Ceiling/wall
- Black, White
- 300 g
Great video performance
AXIS M4328-P offers a complete overview with outstanding sharpness, great detail, and no blind spots. This 12 MP camera delivers 360° or 180° panoramic overviews. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. With its stereoscopic lens and digital PTZ, you can choose what to see in the view areas and at what zoom level in up to four areas simultaneously. Furthermore, built on ARTPEC-8, the latest Axis system-on-chip (SoC), this panoramic camera enables improved image processing and great image quality.
Deep learning on the edge
This indoor fisheye camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before — on the edge. Additionally, it delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it’s possible to detect and classify moving objects in a scene — all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Great look and ease of installation
This discreet, ultra-compact, affordable camera is quick and easy to install. With accessory casings available, it can also be repainted to blend in with any surroundings. It’s delivered factory-focused. And, thanks to digital roll functionality, you can remotely adjust the rotation of the camera overview – no need to do it manually on the camera. Furthermore, Axis Zipstream, with support for H.264 and H.265, significantly reduces bandwidth and storage requirements without compromising image quality.
| Performance | |
|---|---|
| Certification | CSA, UL/cUL, BIS, UKCA, CE, KCEN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2Australia/New Zealand: RCM AS/NZS CISPR 32 Class ACanada: ICES-3(A)/NMB-3(A)Japan: VCCI Class AKorea: KS C 9835, KS C 9832 Class AUSA: FCC Part 15 Subpart B Class AIEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3, IS 13252IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78NIST SP500-267 |
| Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of languages | 20 |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| PTZ modes | Digital PTZ, Preset point |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Design | |
|---|---|
| Housing material | Plastic |
| LED indicators | Yes |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 1/8100 – 1/2 s |
| Lens viewing angle, vertical | 182° |
| Lens viewing angle, horizontal | 182° |
| Minimum illumination | 0.04 lx |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.3 mm (1 / 2.3″) |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Fixed focal length | 2.2 mm |
| Fixed focus | Yes |
| Number of lenses | 1 |
| Video | |
|---|---|
| Text caption overlay | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Bit rate control | Variable Bit Rate (VBR) |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 256 x 144, 384 x 288, 2048 x 1536 (QXGA), 2560 x 1920, 2880 x 2880, 3840 x 2160 |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Total megapixels | 12 MP |
| Maximum resolution | 2992 x 2992 pixels |
| Audio | |
|---|---|
| Audio system | 2-way |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 2048 MB |
| Flash memory | 8192 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Human and vehicle targets classification | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Digest authentication | Yes |
| Security algorithms | 256-bit AES-XTS, EAP-TLS, TLS |
| Privacy protection | Yes |
| Alert notification type | |
| Pixel counter | Yes |
| Password protection | Yes |
| Management features | |
|---|---|
| Behavior analysis | Line crossing detection |
| Power | |
|---|---|
| Power consumption (max) | 5.1 W |
| Power consumption (typical) | 3.5 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 10 – 85% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 300 g |
| Height | 51 mm |
| Depth | 101 mm |
| Width | 101 mm |
| Sustainability | |
|---|---|
| Compliance certificates | RoHS |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of cameras | 1 |
| Other features | |
|---|---|
| Doesn’t contain | PVC/BFR |
