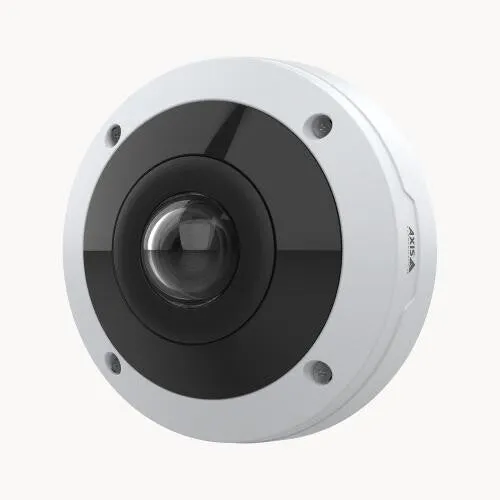

Axis M4317-PLR Dome IP security camera Outdoor 2560 x 1920 pixels Ceiling
- Sharpdome technology
- Complete 180° and 360° overview
- Built-in IR with individual IR LEDs
- Support for advanced analytics
- Built-in cybersecurity features
Optimized for surveillance onboard buses, this discreet, fisheye camera delivers outstanding images in any light conditions. It offers built-in cybersecurity features and support for advanced analytics based on deep learning on the edge.
360° view with just one camera
Designed to withstand strong shock and vibrations, this fisheye camera is optimized for surveillance onboard buses. And you don’t need to invest in several cameras—with AXIS M4317-PLR you get a complete 180° or 360° overview for total situational awareness. Plus, there’s just one camera to install, one cable to drop, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. Furthermore, this cost-efficient camera ensures a lower power budget.
Outstanding images
With a stereographic lens and Sharpdome 360, AXIS M4317-PLR delivers greater sharpness at the edges of the image. It features a 6 MP sensor and offers great image quality around the clock, regardless of the light conditions. Forensic WDR provides clarity when there’s both dark and light areas in the scene. And Lightfinder for sharp, color images in low light. Thanks to built-in IR illumination with individually controllable LEDs, it delivers clear, reflection-free footage even in low light or complete darkness. Furthermore, it supports up to four digital PTZ views as well as dewarped panorama, quad, corner, and corridor views.
Secure and easy
AXIS M4317-PLR offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Axis Zipstream with H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, with a deep learning processing unit (DLPU), this high-performance camera delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.
Performance | |
---|---|
Dynamic range | 120 dB |
Day/night mode | Yes |
Wide Dynamic Range (WDR) | Yes |
PTZ modes | Digital PTZ |
PTZ control | Yes |
Connectivity technology | Wired |
Placement supported | Outdoor |
Type | IP security camera |
Design | |
---|---|
IK code | IK10 |
International Protection (IP) code | IP66 |
Housing material | Aluminium, Polycarbonate (PC) |
Product colour | White |
Mounting type | Ceiling |
Form factor | Dome |
Camera | |
---|---|
Camera shutter speed | 1/33500 – 0.2 s |
Lens viewing angle, vertical | 182° |
Lens viewing angle, horizontal | 182° |
Minimum illumination | 0 lx |
Panoramic camera | |
---|---|
Supported graphics resolutions (panoramic camera) | 384 x 288, 2560 x 1440, 2560 x 1920 |
Sensor type (panoramic camera) | CMOS |
Image sensor | |
---|---|
Progressive scan | Yes |
Optical sensor size | 25.4 / 1.8 mm (1 / 1.8″) |
Sensor type | CMOS |
Night vision | |
---|---|
LED type | IR |
Night vision | Yes |
Video | |
---|---|
Privacy masking | Yes |
Noise reduction technology | 2D noise reduction, 3D noise reduction |
Noise reduction | Yes |
Video streaming | Yes |
Frame rate | 60 fps |
Supported graphics resolutions | 256 x 144, 384 x 288, 1920 x 1440, 2560 x 1440, 2560 x 1920 |
Video compression formats | H.264, H.265 |
Total megapixels | 6 MP |
Maximum resolution | 2560 x 1920 pixels |
Network | |
---|---|
Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
Networking standards | IEEE 802.3af, IEEE 802.3at |
Ethernet interface type | Fast Ethernet |
Bluetooth | No |
Wi-Fi | No |
Ethernet LAN | Yes |
Storage | |
---|---|
Internal memory | 2048 MB |
Flash memory | 8192 MB |
Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Card reader integrated | Yes |
Built-in HDD | No |
Security | |
---|---|
IP address filtering | Yes |
Security algorithms | EAP-TLS, MSCHAPv2, PEAP, TLS |
Power | |
---|---|
Power consumption (Power over Ethernet (PoE)) | 5.7 W |
Power source type | PoE |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 5 – 95% |
Operating relative humidity (H-H) | 10 – 100% |
Storage temperature (T-T) | -40 – 65 °C |
Operating temperature (T-T) | -40 – 50 °C |
Weight & dimensions | |
---|---|
Weight | 860 g |
Diameter | 14.9 cm |
Height | 70 mm |
Packaging content | |
---|---|
Number of cameras | 1 |
- leaflet
