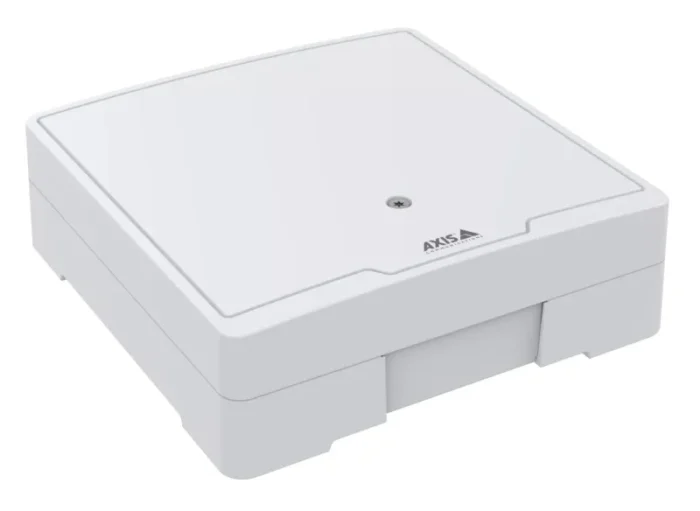

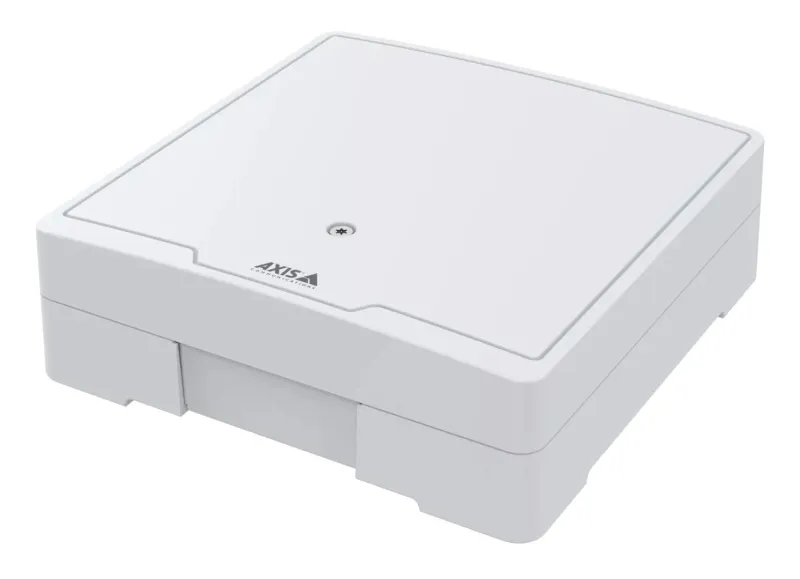

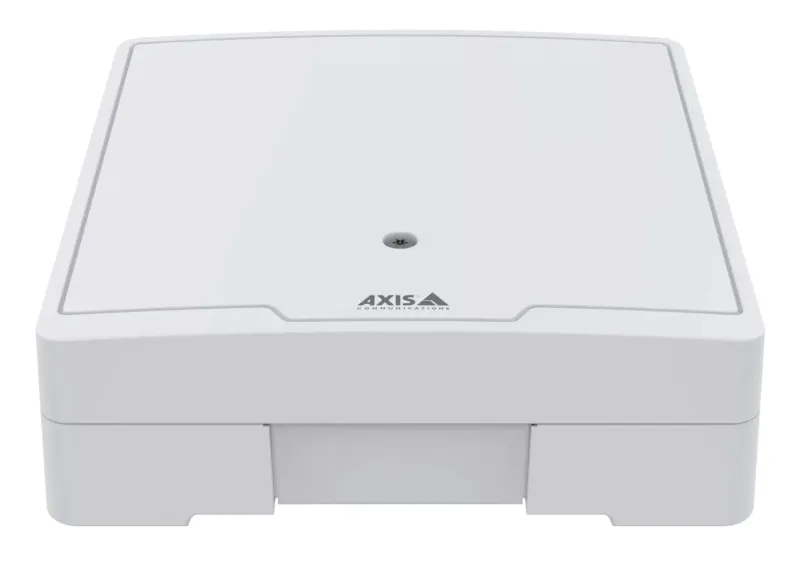

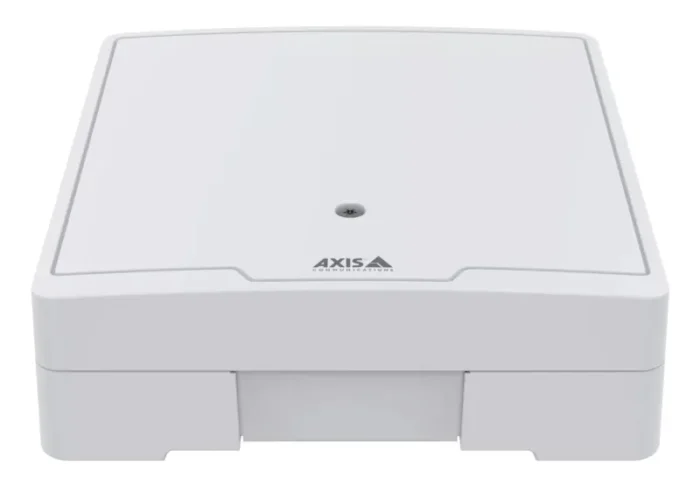

Axis 02653-001 security door controller Housing 2 door(s) RJ-45 / RS-485
- Advanced control for two doors; Built-in cybersecurity features; Integrated with Axis and 3rd party solutions; Intelligence on the edge; Versatile installation with plenum rating
This advanced and robust solution includes everything needed to control two doors – all powered by one PoE cable. It offers fast and easy installation on walls. Plus, it’s suitable for plenum spaces. Thanks to intelligence on the edge, it can internally handle all tasks related to door access – even if the network is down. Fully integrated within Axis end-to-end and partner solutions, this scalable product is optimized for both small and large installations. It includes six auxiliary I/Os for easy integration. Plus, it supports flexible authentication using different types of credentials. Furthermore, built-in cybersecurity features prevent unauthorized access and safeguard your system.
| Technical details | |
|---|---|
| Relay inputs | 2 |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSd, HTTP/2, TLSd, QoS Layer 3 DiffServ, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Interface | RJ-45 / RS-485 |
| Built-in UPS | No |
| Maximum number of doors | 2 door(s) |
| Case design | Housing |
| Performance | |
|---|---|
| Certification | EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Number of Wiegand readers supported | 2 |
| Wiegand interface | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN | Yes |
| Storage media | Flash |
| Internal storage capacity | 2 GB |
| Power | |
|---|---|
| DC voltage range | 10.5 – 28 V |
| Ports & interfaces | |
|---|---|
| RS-485 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 85% |
| Storage temperature (T-T) | -40 – 55 °C |
| Operating temperature (T-T) | -40 – 55 °C |
| Weight & dimensions | |
|---|---|
| Width | 175 mm |
| Depth | 175 mm |
| Height | 60 mm |
| Weight | 1.2 kg |
