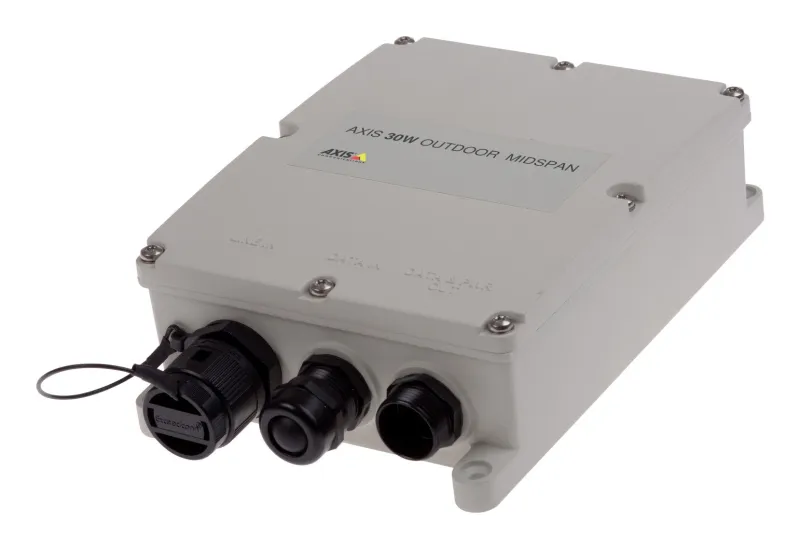

Axis 01944-001 security camera accessory Midspan
- 100 to 240 V AC; IEEE 802.3af and 802.3at; Outdoor-ready, IP66/67- and NEMA 4X-rated; Railway compliant EN 50121-4 and IEC 62236-4
Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. A midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS 30 W Outdoor Midspan is compatible with IEEE 802.3af and 802.3at compliant Axis network devices. The midspan ensures safe and reliable operation in outdoor environments. Furthermore, it offers surge protection for both the AC and the PoE ports ensuring protection to the equipment from outdoor surges up to 6kV.
| Features |
| International Protection (IP) code |
IP66 |
| Housing material |
Aluminium |
| Product colour |
Black, Grey |
| Brand compatibility |
Axis |
| Placement supported |
Outdoor |
| Type |
Midspan |
| Ergonomics |
| Number of connectors |
3 |
| Power |
| Output voltage |
54 V |
| Input frequency |
50/60 Hz |
| Input voltage |
100-240 V |
| Rated power |
30 W |
| Weight & dimensions |
| Weight |
1.4 kg |
| Width |
170 mm |
| Depth |
140 mm |
| Height |
60 mm |
| Packaging content |
| Quick installation guide |
Yes |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 95% |
| Storage temperature (T-T) |
-40 – 85 °C |
| Operating relative humidity (H-H) |
10 – 100% |
| Operating temperature (T-T) |
-40 – 65 °C |
| Logistics data |
| Harmonized System (HS) code |
85299020 |
