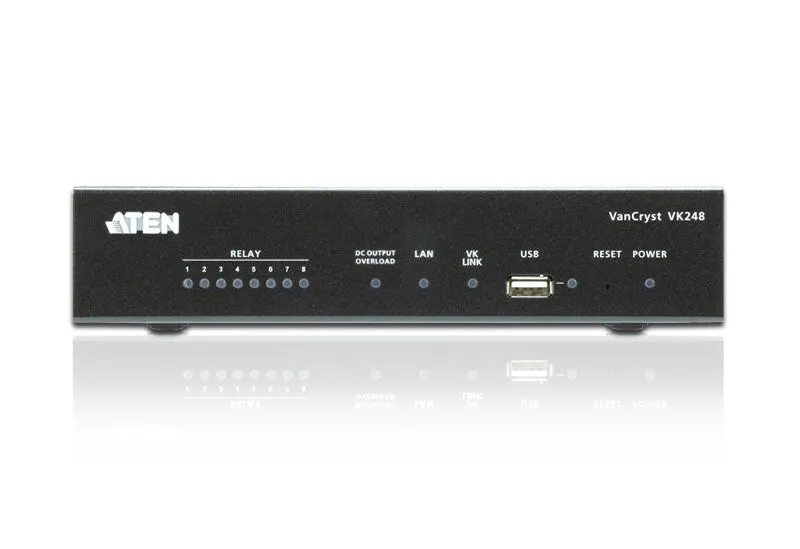

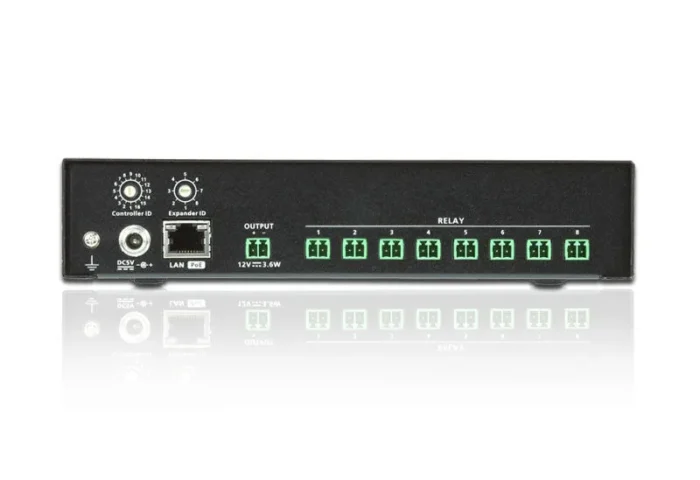

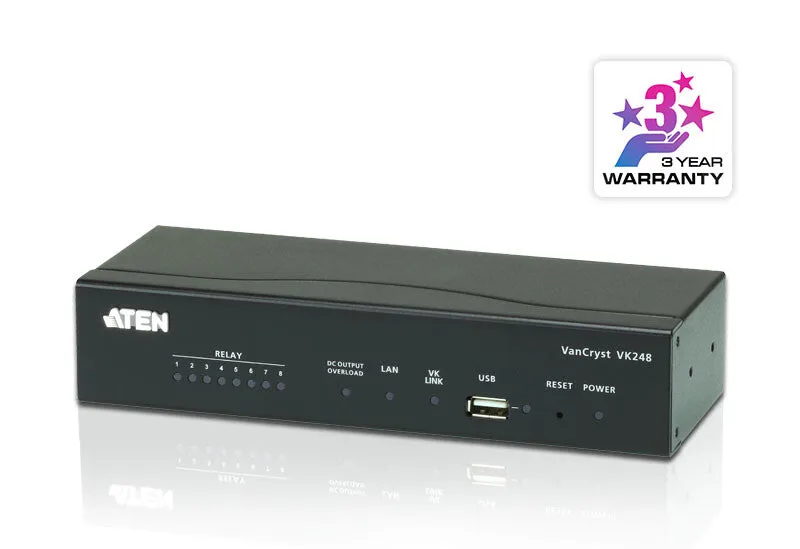

ATEN 8-Channel Relay Expansion Box
- Provides 8 relay channels to expand the ATEN Control System
- ID Switch pairs the VK248 with a controller to instantly configure the network settings
- Up to eight VK248 expansion boxes can be added to a single Control Box
- Supports Power over Ethernet (PoE) or DC power supply
The VK248 8-Channel Relay Expansion Box provides an additional eight channels of relay output for a flexible expansion of the ATEN Control System. This allows users to control additional devices such as screen, projector lifts and blinds in environments where more devices are required. With the advantage of an Ethernet-based connection, the expansion box easily connects to the VK2100 Control Box via a LAN connection from a variety of locations across a network.
1x VK248 8-Channel Relay Expansion Box
1x Mounting Kit
9x Terminal Blocks
1x User Instructions
| Features |
| Product colour |
Black |
| Supported network protocols |
ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH |
| Ethernet LAN (RJ-45) ports |
1 |
| Channel type |
Relay channel |
| Channels quantity |
8 channels |
| Power |
| Power consumption note |
DC5V:2.82W:24BTU, DC48V:3.53W:27BTU |
| Power consumption |
300 mA |
| Operational conditions |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Weight & dimensions |
| Package weight |
900 g |
| Package height |
160 mm |
| Package depth |
239 mm |
| Package width |
59 mm |
| Weight |
740 g |
| Height |
42 mm |
| Depth |
200 mm |
| Width |
75.8 mm |
| Logistics data |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case width |
250 mm |
| Master (outer) case length |
325 mm |
| Master (outer) case height |
175 mm |
| Master (outer) case gross weight |
4.85 kg |
| Master (outer) case net weight |
3.7 kg |
