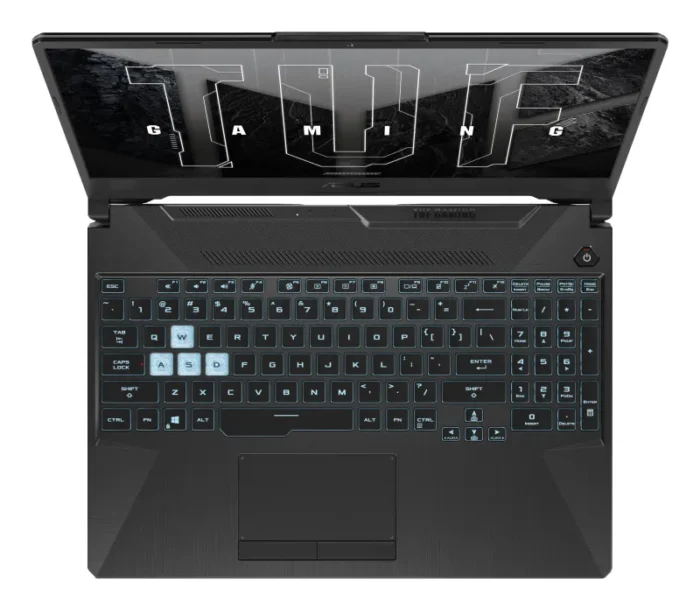

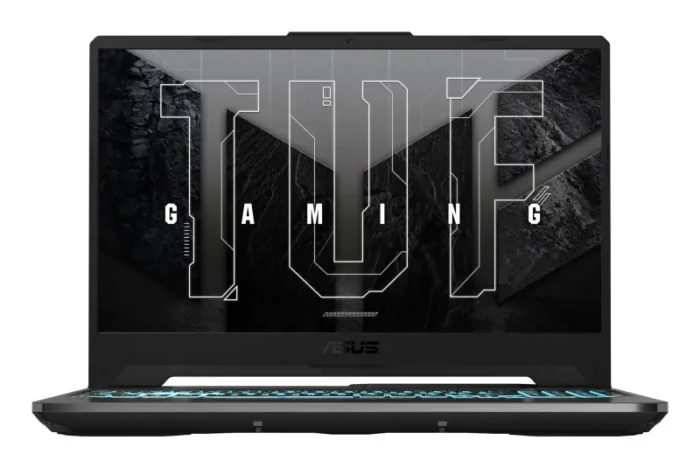

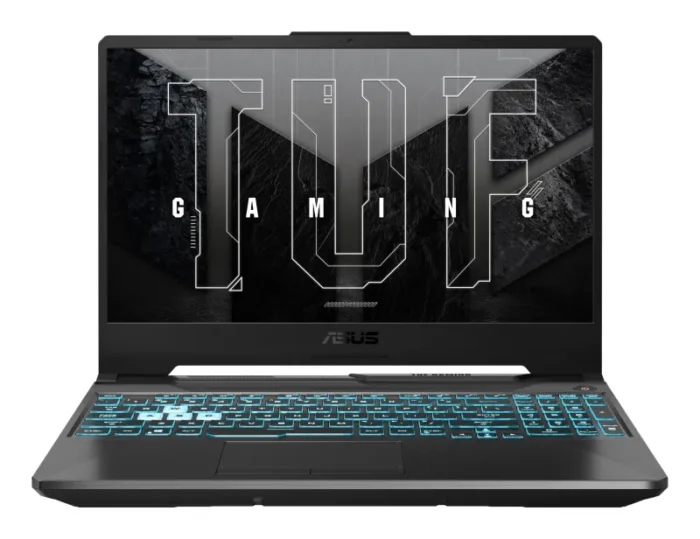

ASUS TUF Gaming A15 FA506NC-HN009W laptop AMD Ryzen™ 5 7535HS 39.6 cm (15.6″) Full HD 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 3050 Wi-Fi 6 (802.11ax) Windows 11 Home Black
- Windows 11 Home 64-bit
- AMD Ryzen 5 7535HS (19MB Cache, 3.3GHz)
- 39.6 cm (15.6″) Full HD 1920 x 1080, NVIDIA GeForce RTX 3050 (4GB GDDR6)
- 16GB (5600MHz) DDR5-SDRAM (2 x 8) & 1000GB SSD
OUTLAST THE COMPETITION
Geared for serious gaming and rocking a slick new style, TUF Gaming A15 is a feature-packed Windows 11 gaming laptop with the power to carry you to victory. The new GeForce RTX™ 3050 GPU delivers fluid gameplay on a 144Hz display with 62.5% sRGB, while the potent AMD Ryzen™ CPU is bolstered by improved cooling that amps CPU performance and keeps acoustics stealthy. A long-lasting 90Wh battery coupled with TUF’s military-grade durability keeps you on your best game anywhere.
| Design |
| Market positioning |
Gaming |
| Form factor |
Clamshell |
| Colour name |
Graphite Black |
| Product colour |
Black |
| Product type |
Laptop |
| Display |
| Maximum refresh rate |
144 Hz |
| RGB colour space |
sRGB |
| Colour gamut |
62.5% |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6″) |
| Processor |
| Processor cache type |
L2 & L3 |
| Processor cache |
19 MB |
| Processor frequency |
3.3 GHz |
| Processor boost frequency |
4.55 GHz |
| Processor cores |
6 |
| Processor model |
7535HS |
| Processor generation |
AMD Ryzen 7000 Series |
| Processor family |
AMD Ryzen™ 5 |
| Processor manufacturer |
AMD |
| Memory |
| Maximum internal memory |
32 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Memory clock speed |
5600 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 3.0 |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
AMD Radeon 660M |
| On-board GPU manufacturer |
AMD |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
4 GB |
| Discrete graphics card model |
NVIDIA GeForce RTX 3050 |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of built-in speakers |
2 |
| Camera |
| Front camera resolution |
1280 x 720 pixels |
| Front camera HD type |
HD |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Keyboard |
| Keyboard backlit zone |
1-zone RGB |
| Keyboard backlit colour |
RGB |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Pointing device |
Touchpad |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Home |
| Battery |
| Battery capacity |
48 Wh |
| Number of battery cells |
3 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| DC-in jack |
Yes |
| AC adapter output voltage |
20 V |
| AC adapter output current |
9 A |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
180 W |
| Security |
| Password protection type |
BIOS, User |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Weight & dimensions |
| Height (rear) |
2.45 cm |
| Height (front) |
2.28 cm |
| Depth |
256 mm |
| Width |
359 mm |
| Weight |
2.3 kg |
| General |
| Product family |
TUF Gaming |
| Product series |
A15 |
- ASUS TUF Gaming A15_FA506NC_Graphite Black_360 Exploded View
